TE Connectivity PCB Signal Relay, 5V dc Coil, 2A Switching Current, DPDT Contact Configuration IM23TS 3-1462039-0

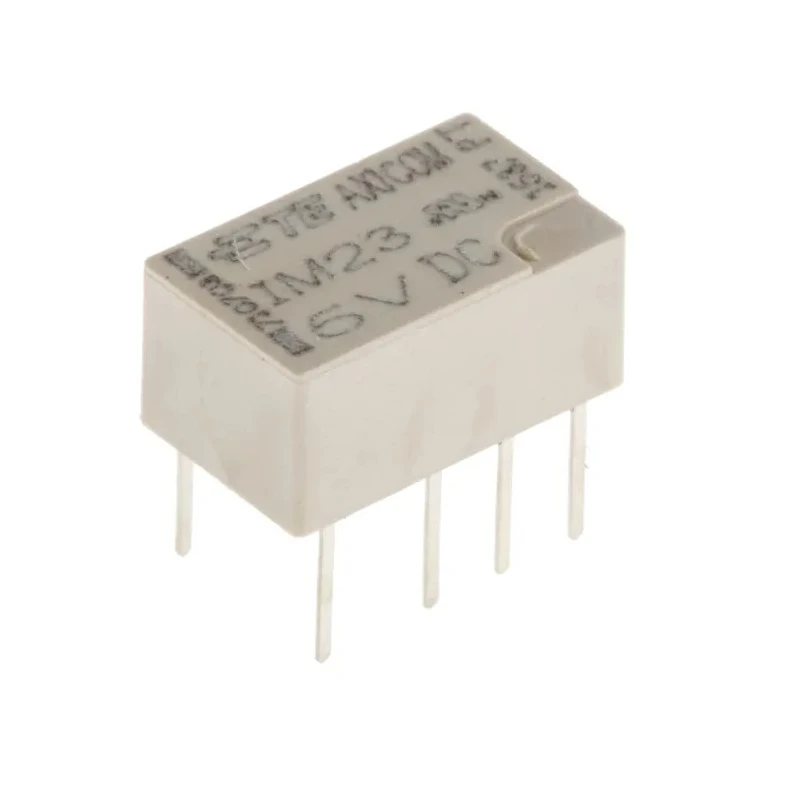

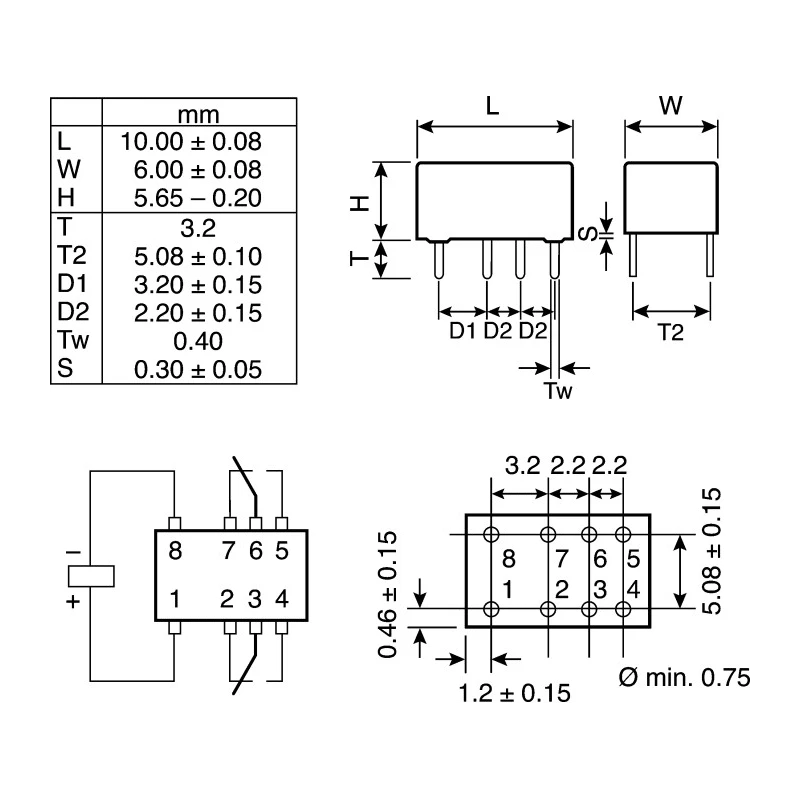

TE Connectivity IM23TS 3-1462039-0 is a high-quality PCB Signal Relay designed with a 5V dc coil and a 2A switching current featuring DPDT (Double Pole Double Throw) contact configuration. It belongs to the IM series known for slimline, low-profile relays measuring only 10mm length, 6mm width, and a height of 5.65mm, occupying minimal PCB area of 60mm².

The relay incorporates gold plated bifurcated contacts to ensure optimal conductivity and signal integrity. Its hermetically sealed housing provides IP67 protection, making it suitable for use in harsh and moisture-prone environments. Coil power consumption is notably low at 50mW, enhancing overall energy efficiency.

This IM series relay is engineered to operate reliably at temperatures ranging from -40°C to 85°C and withstand mechanical shock up to 300G during operation, and 500G on survival, ensuring durability in demanding industrial and commercial applications.

Its electrical ratings include switching AC voltage up to 250V and DC voltage up to 220V, with a switching power rating of 62.5VA. The coil resistance is 500Ω, further characterizing its electrical performance.

The relay meets critical compliance and quality standards such as RoHS, Telcordia GR 1089, FCC Part 68, and ITU-T K20,21,45. It is widely used in telecommunication equipment, optical network terminals, office machines, test and measurement devices, medical instruments, and automotive applications where reliable signal relay switching is required.

Compact slimline design with 10x6x5.65 mm dimensions for minimal PCB space usage. Gold plated bifurcated contacts ensure reliable signal conduction. Hermetically sealed housing with IP67 rating for high environmental protection.

Supports switching AC voltage up to 250V and DC voltage up to 220V. Low coil power consumption of 50mW improves energy efficiency. Wide operating temperature range from -40°C to 85°C for versatile industrial applications.

High mechanical shock resistance with up to 300G functional and 500G survival capability. Meets stringent standards including RoHS and Telcordia GR 1089 for surge and insulation requirements. Ideal for telecommunication, office, automotive, medical, and test equipment use.

This PCB Signal Relay from TE Connectivity offers dependable switching performance for industrial, laboratory, telecommunications, automotive, and commercial equipment. Its compact form and robust specifications set a high standard for Signal Relays in electronics applications.
