TE Connectivity PCB Signal Relay 5V dc Coil 2A Switching Current DPDT V23079A1001B301 1393788-3

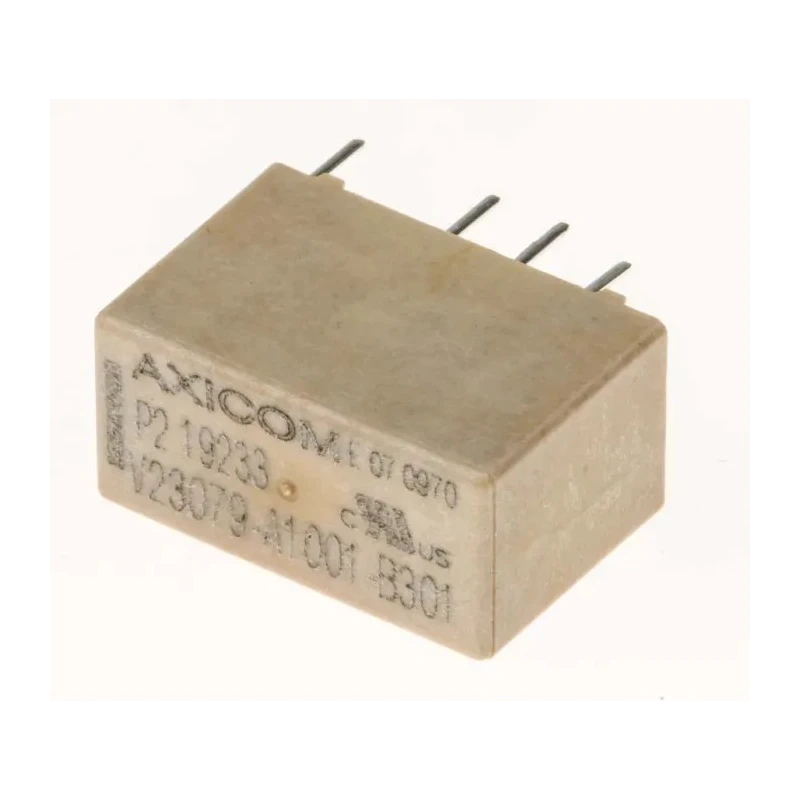

TE Connectivity V23079A1001B301 1393788-3 PCB Signal Relay is a high-sensitivity miniature relay from the Axicom P2 series. It features a 5V dc coil voltage and supports a switching current of 2A with a DPDT (Double Pole Double Throw) contact configuration, making it ideal for precise signal switching in compact electronic devices.

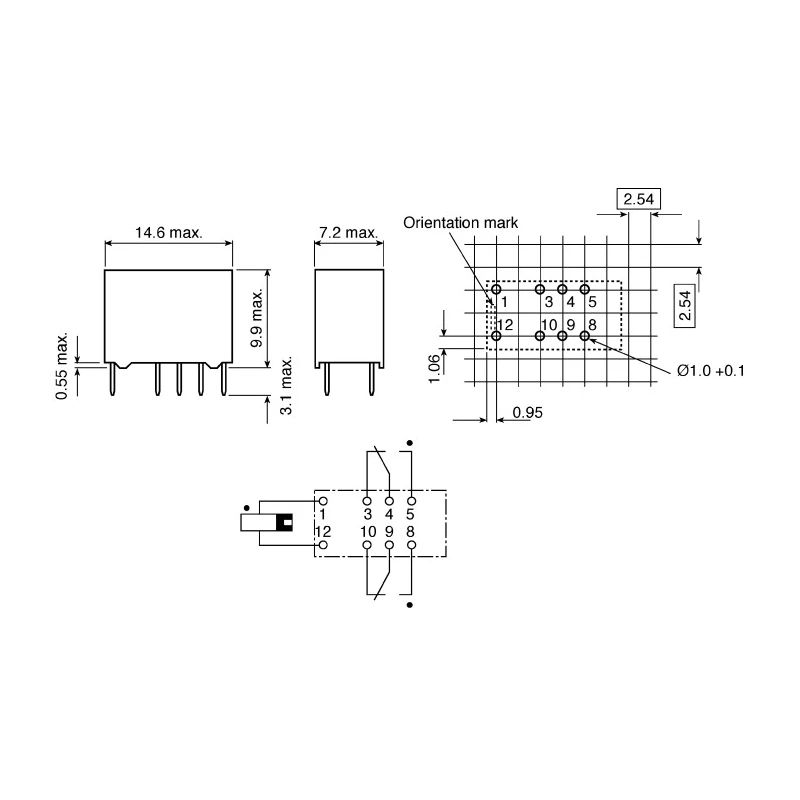

The relay is designed for PCB mounting with solder terminals, enabling reliable integration into electronic circuits. It has compact physical dimensions measuring 14.5mm in length, 9.8mm in height, and 7.4mm in width, suitable for applications where space saving is essential.

The coil resistance is 178Ω, with a power consumption of just 140mW, reflecting the relay's low power requirements. Gold plated bifurcated contacts enhance durability and ensure low contact resistance, providing reliable electrical performance over a broad temperature range from -40°C to 85°C.

This relay meets RoHS compliance standards and is rated for switching up to 250V AC and 220V DC voltages. The product's surge capability adheres to Telcordia and IEC standards, ensuring robustness in telecommunications and control equipment applications.

Applications include communications equipment such as PABX and VOIP systems, consumer electronics including set-top boxes and HiFi devices, medical and office equipment, automotive controls, and various control systems in industrial environments.

This relay features a 5V dc coil voltage for efficient operation. The contact configuration is double pole double throw (DPDT) for versatile switching. It supports a switching current of up to 2 amperes. Designed for PCB mount with solder terminal type for reliable installation.

Compact dimensions of 14.5mm length, 9.8mm height, and 7.4mm width ensure space efficiency. The coil resistance is 178 ohms with a coil power consumption of 140mW. Gold plated bifurcated contacts provide superior conductivity and durability.

Operational temperature range from -40°C to 85°C suits varied industrial environments. Compliance with RoHS standards ensures environmental safety. Manufactured in the Czech Republic guaranteeing quality and consistency.
