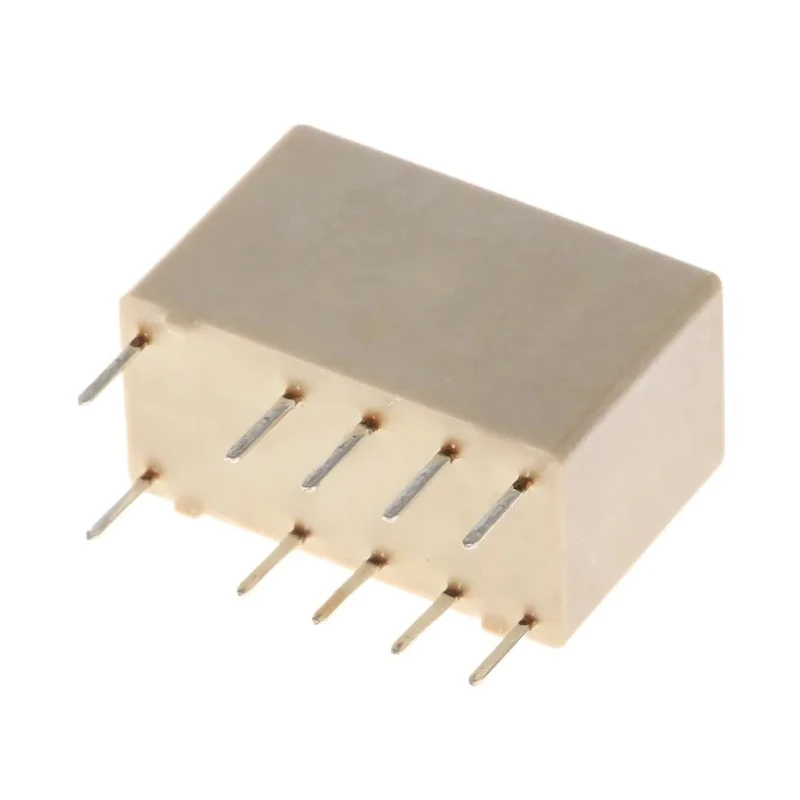

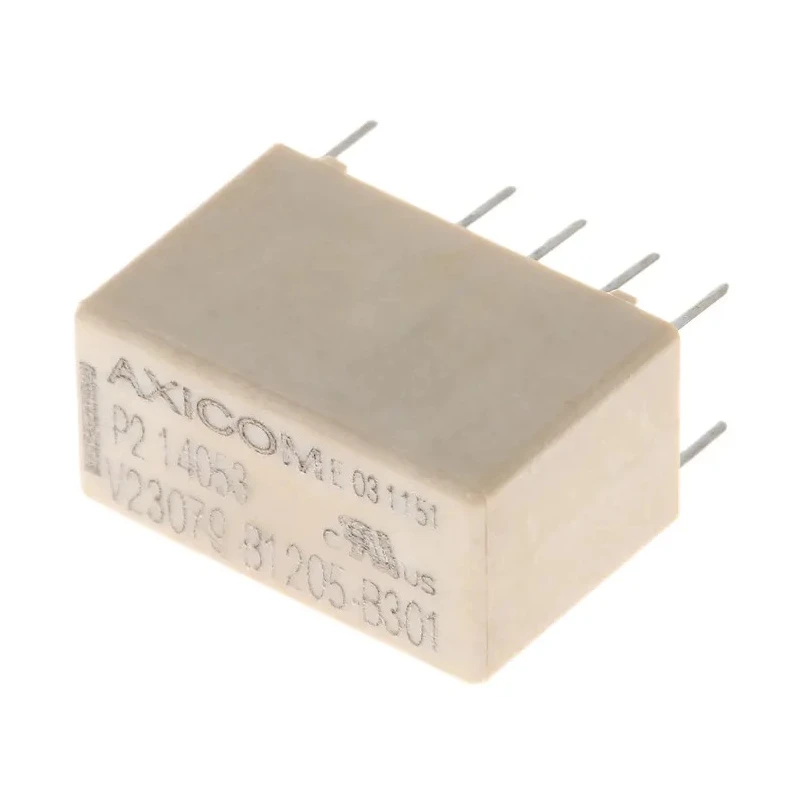

TE Connectivity PCB Signal Relay 24V DC Coil 2A DPDT Axicom V23079B1205B301
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 9.8mm |
| Length | 14.5mm |
| Model | V23079B1205B301 |
| Width | 7.2mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | Axicom |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 4114Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 140mW |
Key Features
- High sensitivity, low power consumption relay suitable for space-saving applications.
- Bifurcated gold-plated contacts ensure high reliability and conductivity.
- Immersion cleanable with IP67 rating and V-0 flammability classification.
- Wide operating temperature range from -40°C to 85°C for industrial use.
- Complies with RoHS standards ensuring environmental safety.

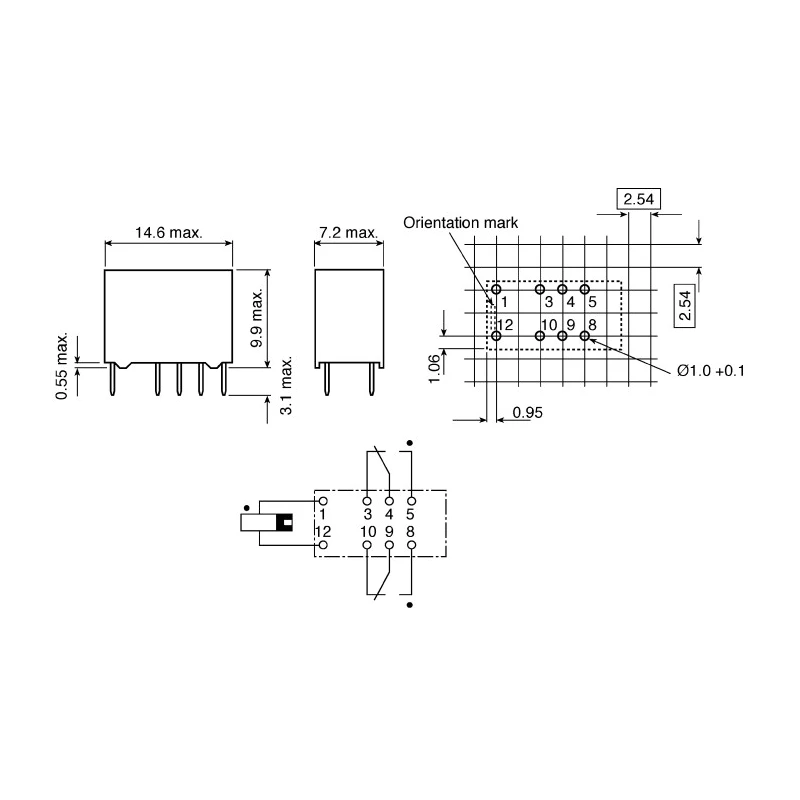

- Compact dimensions of 14.5mm length, 7.2mm width, and 9.8mm height.
- Surge capability meeting Telcordia and IEC standards ensures durability under high transient voltages.
- Ideal for communications, consumer electronics, office equipment, and automotive applications.
Product Description
TE Connectivity V23079B1205B301 is a miniature PCB Signal Relay from the Axicom P2 V23079 series designed for low power consumption and high sensitivity.
Featuring a 24V DC coil voltage and offering a switching current of 2A, this DPDT (Double Pole Double Throw) relay is optimized for compactness with a slimline and low-profile design, measuring just 14.5mm x 7.2mm x 9.8mm.
The relay incorporates bifurcated gold-plated contacts that provide reliable switching performance and enhanced conductivity, making it suitable for demanding electronic environments.
It is designed for PCB mounting with solder-type terminals to ensure secure and easy integration into circuit assemblies. The coil resistance is 4114Ω and coil power consumption is 140mW, supporting energy-efficient operations.
Its robust construction includes immersion cleaning capability, IP67 protection class, and a V-0 flammability rating, making it suitable for industrial, telecommunications, medical, automotive, and consumer electronics applications.
Operating temperature ranges from -40°C to 85°C, supporting use in harsh environmental conditions. The relay meets important standards including RoHS compliance for environmental safety and surge test standards such as Telcordia TR-NWT-001089 and IEC 60950, enhancing performance under transient electrical stresses.
High sensitivity with low coil power consumption for efficient energy use. Compact size suitable for space-limited applications. Gold-plated bifurcated contacts for optimal electrical performance. Immersion cleanable and IP67 rated for reliability and durability.
Wide operating temperature range from -40°C to 85°C. Compliance with RoHS and surge capability standards. Ideal for use in communications equipment, consumer electronics, office and medical devices, automotive systems. PCB solder terminal mount for easy board-level integration.
This TE Connectivity relay is an excellent choice for signal switching in various industrial and commercial electronic applications due to its robust design and reliable performance. Explore more from TE Connectivity in the Signal Relay category on EnvMart to find solutions that enhance your control and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
This model has a maximum switching current of 2A.
The dimensions of this relay are 14.5mm in length, 7.2mm in width, and 9.8mm in height.
It supports PCB mounting with solder-type terminals for easy integration into circuit assemblies.
The operating temperature range for this relay is from -40°C to 85°C.
The contact configuration of this relay is DPDT (Double Pole Double Throw).
The coil resistance of this model is 4114Ω.
This relay complies with RoHS standards and meets surge test standards such as Telcordia TR-NWT-001089 and IEC 60950.
The contacts of this relay are made from gold-plated material, which enhances conductivity and reliability.
The coil power consumption is 140mW.
This relay is suitable for applications in communications, consumer electronics, office equipment, and automotive systems.
The relay has a surge capability that meets Telcordia and IEC standards, ensuring durability under high transient voltages.
