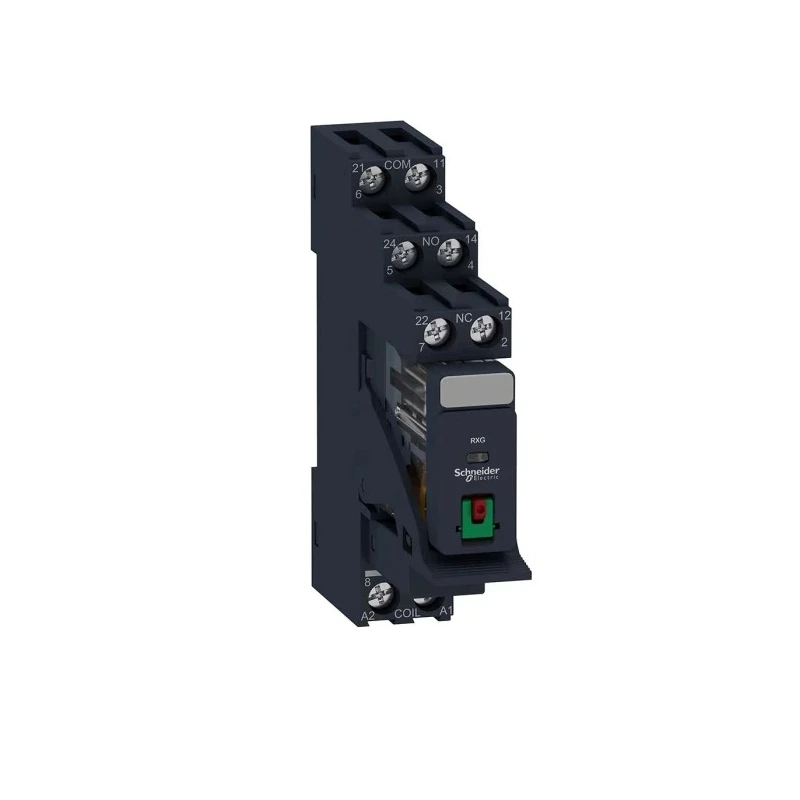

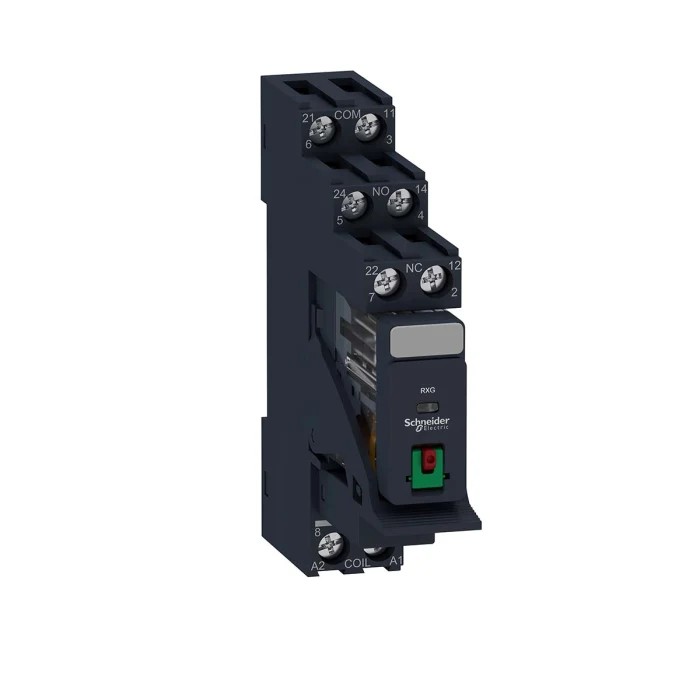

Schneider Electric Harmony Relay RXG Series Interface Relay DIN Rail Mount 24V AC Coil DPDT RXG21B7PV

Schneider Electric RXG21B7PV is a robust interface relay from the Harmony Relay RXG series designed for industrial automation and control applications. This electromechanical plug-in relay is optimized for DIN Rail mounting and operates with a 24V AC coil voltage, making it suitable for diverse electrical and electronic applications requiring reliable switching.

The relay features a double-pole double-throw (DPDT) contact configuration, enabling flexible circuit control with a maximum switching current rating of 5A at 250V AC. Its silver alloy contacts ensure excellent conductivity and durability under intensive operating conditions.

With a coil resistance of 260Ω and coil type AC, this relay maintains efficient power consumption while its terminal type connector facilitates straightforward wiring. The device is designed to operate in wide temperature ranges from -40°C up to 70°C, making it suitable for demanding industrial environments.

The compact dimensions of 72mm length, 79.6mm height, and 15.6mm width allow for easy integration into control panels and electrical assemblies. It complies with multiple international standards including UL 508, CSA C22.2 No 14, IEC 61810-1, and IEC 61984, confirming its safety and reliability.

This product is manufactured in China and is ideal for use in various sectors such as industrial automation, electrical control systems, manufacturing equipment interfaces, and HVAC controls. The Schneider Electric Harmony RXG21B7PV relay ensures enhanced system protection and reliable switching operations, essential for precise electrical installations.

This interface relay is from the Harmony RXG series, ensuring compatibility with industrial applications. It features a coil resistance of 260Ω and operates at 24V AC coil voltage. The DPDT contact configuration provides versatile switching capabilities with a maximum switching current of 5A.

Designed for DIN Rail mounting, it offers easy installation and secure connection via a connector terminal type. It supports switching AC voltage up to 250V AC and switching DC voltage up to 30V DC. The relay uses a silver alloy for contacts, enhancing durability and conductivity.

Operating temperature range is from -40°C to 70°C, suitable for harsh industrial environments. Dimensions are compact with length 72mm, height 79.6mm, and width 15.6mm. Certified standards include UL 508, CSA C22.2 No 14, IEC 61810-1, and IEC 61984.

Made in China, the product provides quality assurance for professional use.

For professionals seeking reliable relay solutions for industrial and automation control needs, the Schneider Electric Harmony RXG21B7PV offers outstanding performance and safety compliance. Explore similar Schneider Electric Interface Relays and other electrical components on EnvMart.
