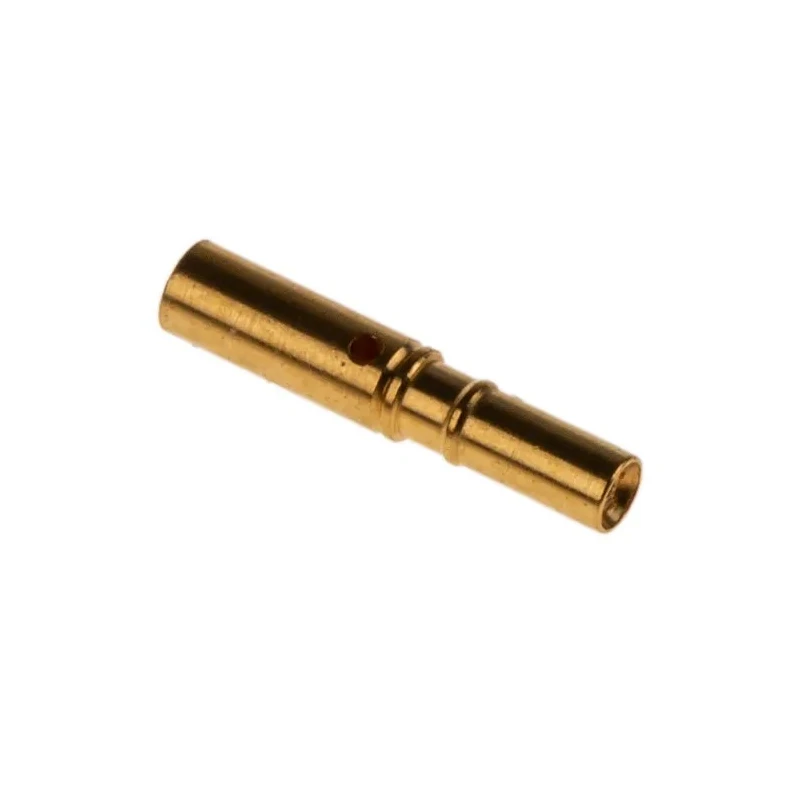

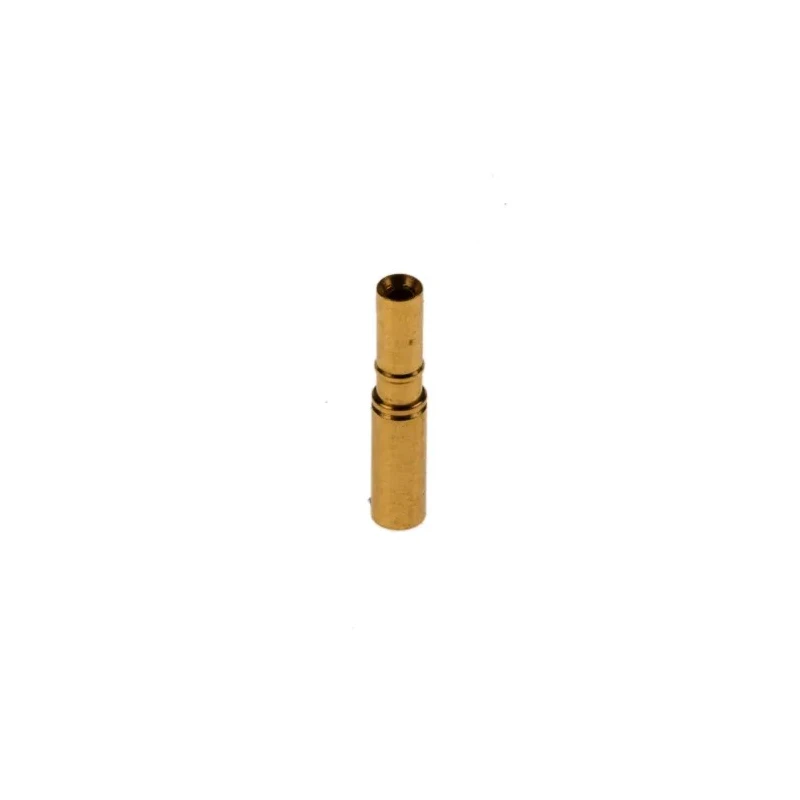

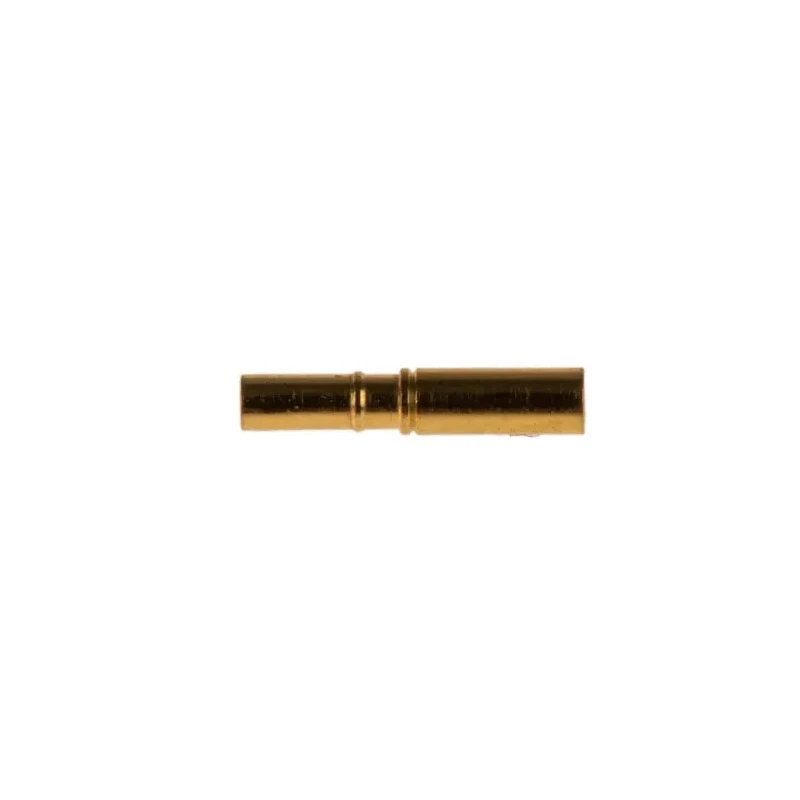

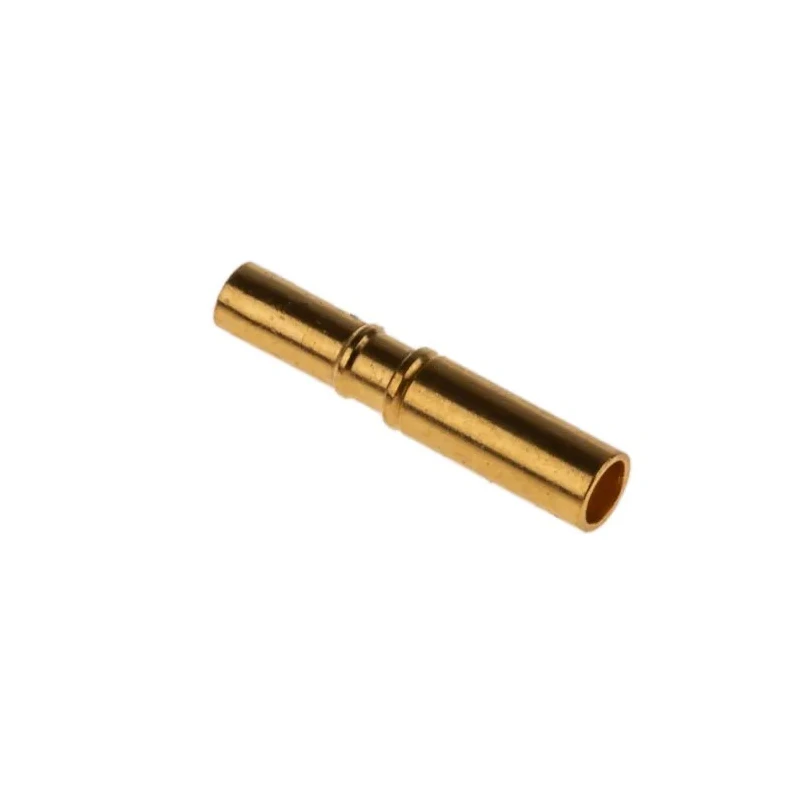

HARWIN Datamate Series Female Crimp Terminal 3A Current, 28 AWG Min, 24 AWG Max M80-0130005

HARWIN M80-0130005 is a female crimp terminal from the Datamate series engineered to provide reliable electrical termination with a maximum current rating of 3 amperes. The terminal is designed to accommodate wire sizes ranging from 28 AWG minimum to 24 AWG maximum, making it versatile for various cabling requirements in electronic and electrical assemblies.

Constructed from high-quality beryllium copper alloy, the contact features gold plating which enhances conductivity and resistance to corrosion, ensuring long-term durability and excellent electrical performance. The termination type is crimp, providing a secure mechanical and electrical connection when appropriately applied.

This crimp terminal is compatible with Harwin's Datamate L-Tek, J-Tek, and Mix-Tek connector housings, supporting rear insertion for ease of assembly. The robust four finger clip contact system ensures connection integrity even in environments subject to vibration, shock, and mechanical stress, making it well-suited for industrial, automation, communication, and other demanding applications.

The terminal operates reliably over an extensive temperature range from -55°C to 125°C, which allows usage in harsh environmental conditions. Its maximum contact resistance is capped at 25 milliohms to maintain optimal signal transmission quality. Despite the high reliability, these terminals do not have additional standards or approvals marked but comply with Harwin's quality manufacturing standards.

Produced in the United Kingdom, the M80-0130005 is a precision-engineered component ideal for use in rugged electronic systems. It is part of a range of Crimp Contacts that emphasize durability and electrical integrity, suitable for use in industrial equipment, aerospace, automotive, telecommunications, and other high-tech infrastructure requiring reliable connections.

Constructed from beryllium copper alloy for durability and reliable conductivity. Gold plated contacts ensure low resistance and corrosion protection. Suitable for use with Datamate L-Tek, J-Tek, and Mix-Tek connector housings.

Operates within a temperature range of -55°C to 125°C for harsh environment resilience. Rear insertable into connectors with a robust four finger clip design for secure connection. Maximum contact resistance rated at 25 milliohms to maintain signal integrity.

Designed for industrial, automation, and communication applications. Manufactured in the United Kingdom with exacting quality standards.

For engineers and technicians seeking high reliability crimp terminals, the HARWIN Datamate series offers proven performance in challenging electrical environments. Explore more from the Harwin catalog and discover compatible connectors, tools, and accessories at EnvMart.
