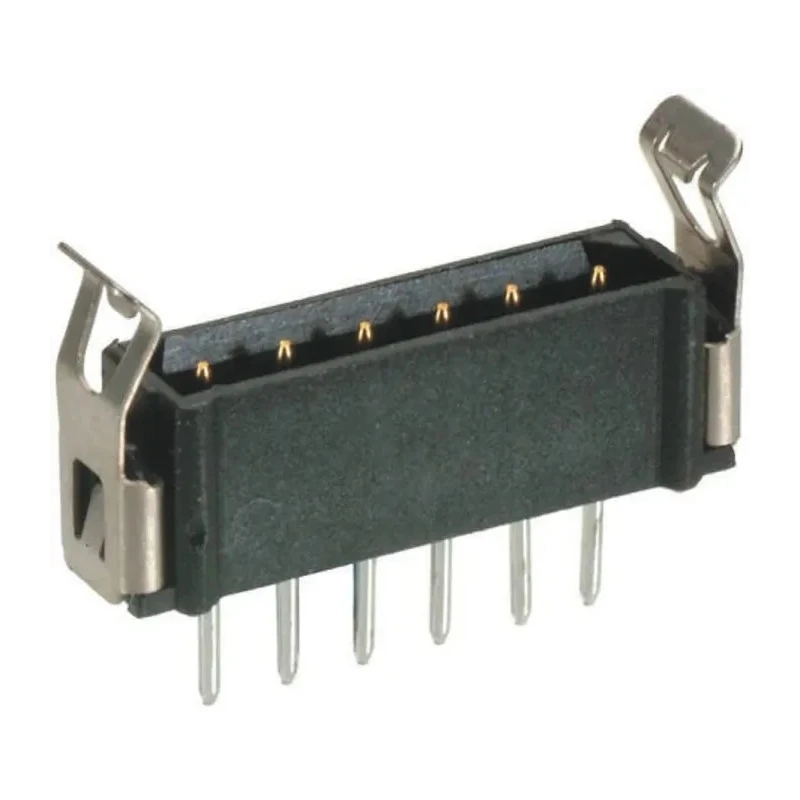

HARWIN Datamate L-Tek Series Straight Through Hole PCB Header, 6 Contacts, 2 mm Pitch, 1 Row, Shrouded M80-8820642

Free Delivery in India | Lowest Global Shipping Charges

HARWIN Datamate L-Tek Series Straight Through Hole PCB Header, 6 Contacts, 2 mm Pitch, 1 Row, Shrouded M80-8820642

Name: HARWIN Datamate L-Tek Series Straight Through Hole PCB Header, 6 Contacts, 2 mm Pitch, 1 Row, Shrouded M80-8820642
Brand: HARWIN
SKU: 164675



Category Connectors Brand HARWIN Condition New

Specifications

Country of Origin	United Kingdom
Voltage	120V
Brand	HARWIN
Orientation	Straight
Current	3A
Model	M80-8820642
Mount Type	Through Hole
Housing Material	Polyphenylene Sulphide
Contact Material	Phosphor Bronze
Series	Datamate L-Tek
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2mm
Contact Plating	Gold
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3mm

Key Features

The connector supports a current rating of 3A for reliable power transfer.
Constructed with durable Polyphenylene Sulphide housing material suitable for harsh environments.
Features male phosphor bronze contacts with gold plating for excellent conductivity and corrosion resistance.
Designed for through-hole mounting with a tail pin length of 3 mm ensuring secure solder termination.
Operates within a wide temperature range from -55°C to 125°C for industrial applications.
Polarised mouldings ensure correct mating with circuitry to prevent misconnection.
Complies with industry standards BS9525-F0033, MIL C 55302, and CEC 75101-008 for high reliability.
Ideal for high vibration and shock environments, providing long-lasting, stable electrical connections.

Product Description

HARWIN M80-8820642 Datamate L-Tek Series Straight Through Hole PCB Header is a high-reliability connector tailored for demanding industrial, electronic, and manufacturing applications. It features 6 contacts arranged in a single row with a 2 mm pitch, optimized for secure board-to-board and wire-to-board interfacing.

The connector housing is made from Polyphenylene Sulphide, offering excellent thermal and chemical resistance essential for harsh operating conditions. Its shrouded design provides additional protection and polarization to ensure proper mating and minimize connection errors.

Contacts are crafted from phosphor bronze and plated with gold, guaranteeing superior conductivity and resistance against corrosion and wear. The four-finger beryllium copper contacts assure high mating cycle durability and stable electrical performance under vibration and shock loads.

Operating voltage of 120V and current rating of 3A makes it suitable for various PCB applications requiring reliable power and signal connections. The tail pins measure 3 mm for through-hole mounting, facilitating robust solder joints.

This component functions reliably within a temperature range of -55°C to 125°C, supporting its use in industrial, automotive, aerospace, and military environments. It meets stringent standards and approvals such as BS9525-F0033, MIL C 55302, and CEC 75101-008, attesting to its durability and quality.

The connector's design includes polarised mouldings to prevent misalignment during assembly. It is part of the Datamate range, known for high reliability and longevity even in severe mechanical and environmental conditions.

The product is manufactured in the United Kingdom, ensuring adherence to strict quality controls.

This HARWIN Datamate L-Tek PCB Header is an excellent choice for designers and engineers seeking reliable, industrial-grade connectors for electronic product assembly. Explore further in the Connectors category for more PCB interfacing solutions at EnvMart.
