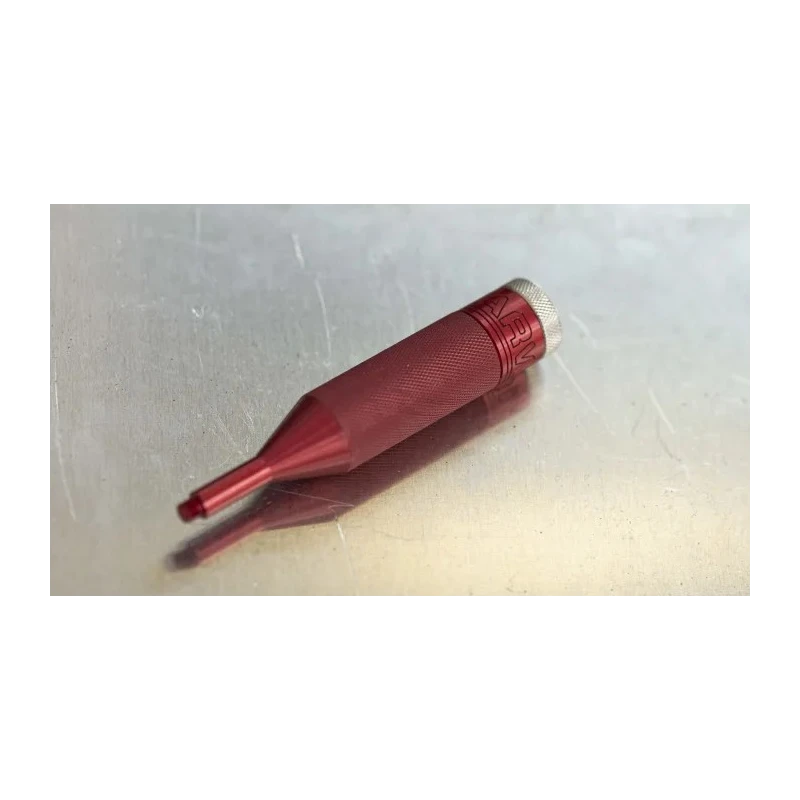

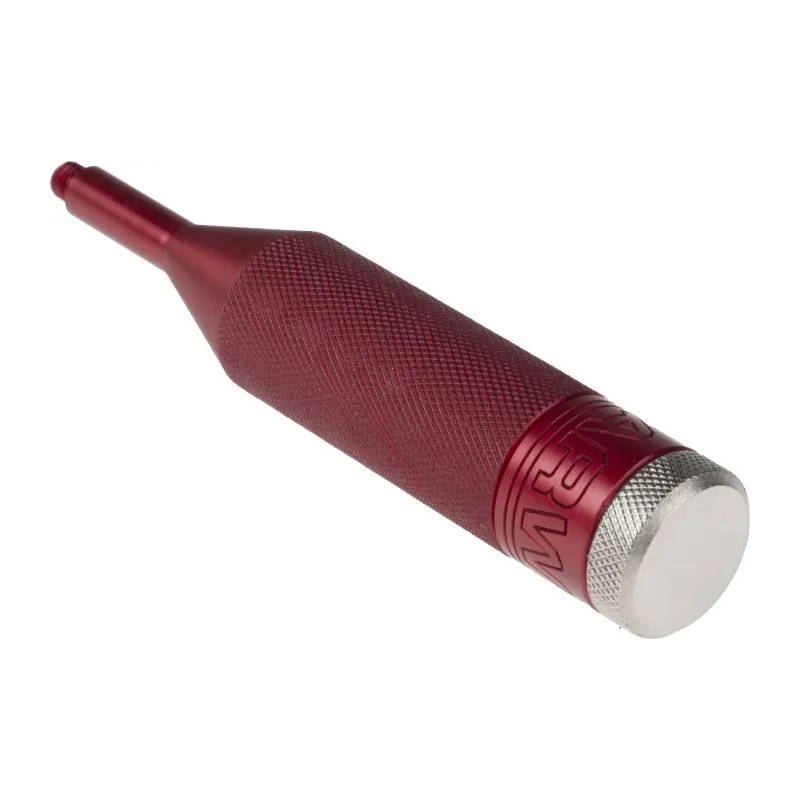

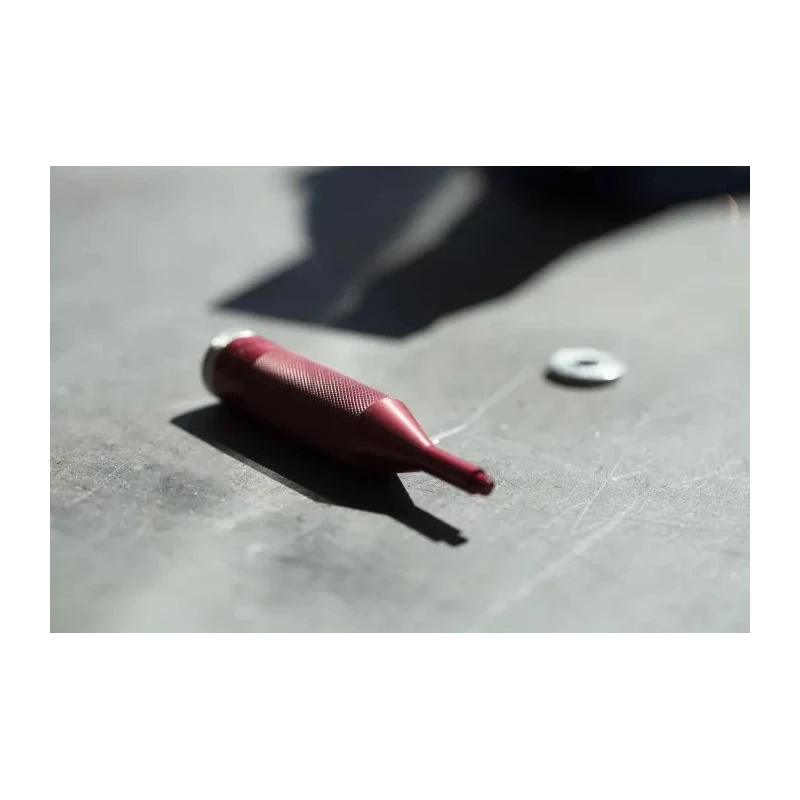

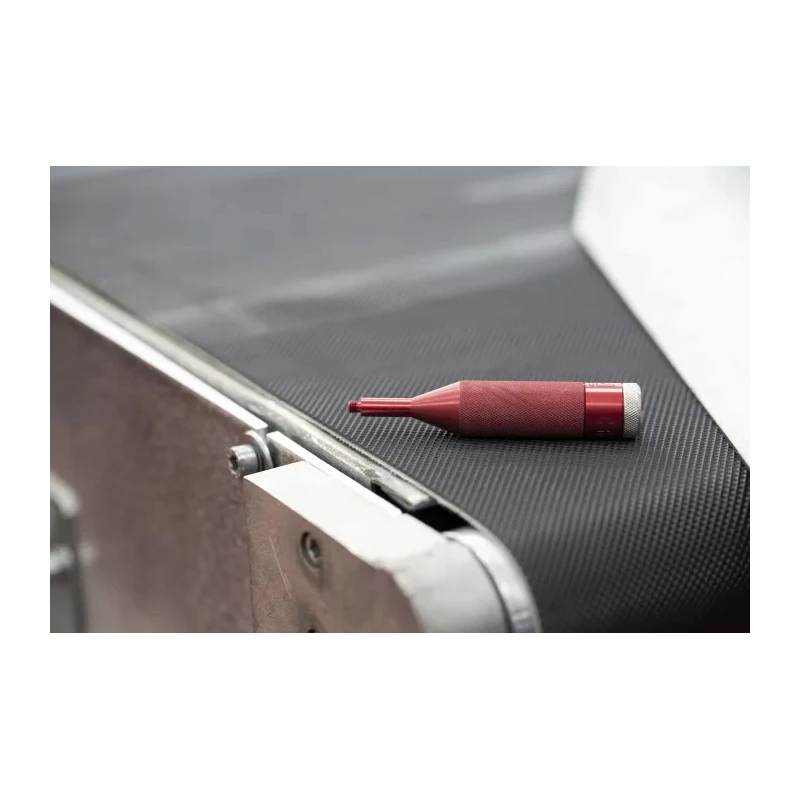

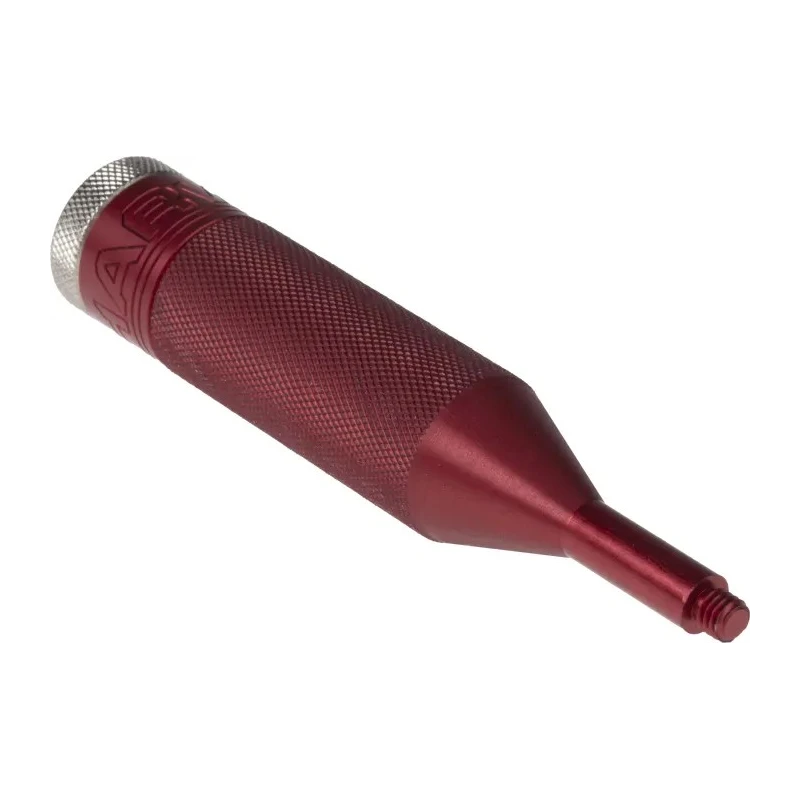

HARWIN Insertion & Extraction Tool for Datamate Series Socket Contact Z80-280

HARWIN Z80-280 Insertion & Extraction Tool for Datamate Series socket contacts is a specialized tool designed for the insertion and removal of crimp contacts into and out of Datamate 2.00mm pitch crimp housings.

It is compatible with all male and female signal contacts within the Datamate L-Tek, J-Tek, and Mix-Tek range of connectors, enabling precise contact handling without damage. The Datamate series connectors are engineered for applications with extreme safety requirements, high vibration, shock, and acceleration loads, as well as operation in harsh environments.

Harwin's use of high reliability four-finger Beryllium Copper contacts ensures the integrity and durability of connections under severe conditions, featuring a four-finger clip design that maintains contact stability through numerous mating cycles.

The tool’s polarised mouldings aid in correct orientation and prevent incorrect assembly. The Datamate connectors equipped with this tool include options with or without latches and are designed to mate with known industry equivalents, making them well-suited for commercial off-the-shelf (COTS) applications.

This insertion and extraction tool is compliant with standards including BS9525-F0033, MIL C 55302, and CEC 75101-008, covering a wide range of industrial and military-grade requirements.

This tool allows precise insertion and extraction of crimp contacts in Datamate 2.00mm pitch crimp housings. Compatible with male and female signal contacts within Datamate L-Tek, J-Tek, and Mix-Tek connectors. Ensures damage-free handling for connectors designed for harsh industrial environments.

Durable design suited for repeated industrial and manufacturing use. Supports connectors that withstand high loads of vibration, shock, and acceleration. Works with high reliability four finger Beryllium Copper contacts for robust connection.

Polarised mouldings prevent assembly errors and ensure correct mating. Complies with stringent industrial and military connector standards. Manufactured in the United Kingdom ensuring strict quality controls.

This product is essential for industrial maintenance, manufacturing assembly, aerospace, military communication systems, and other high-reliability applications requiring robust connector contact management.
