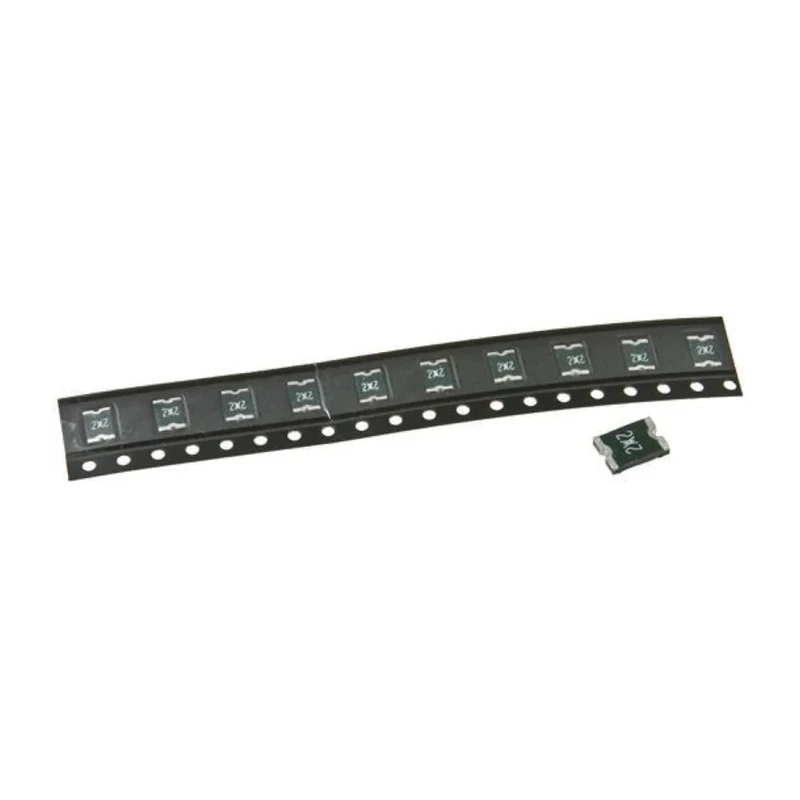

Littelfuse 2 A 8V DC Resettable Fuse PolySwitch Mini SMDC Series MINISMDC200F

Littelfuse MINISMDC200F is a 2 amp 8V DC resettable fuse from the PolySwitch Mini SMDC series, engineered for surface mount applications in electronics.

This device provides effective circuit protection by switching rapidly from a low resistance state to a high resistance state during electrical overload or short circuit events. Once the fault ceases and power is removed, it automatically resets to low resistance, ensuring maintenance-free protection.

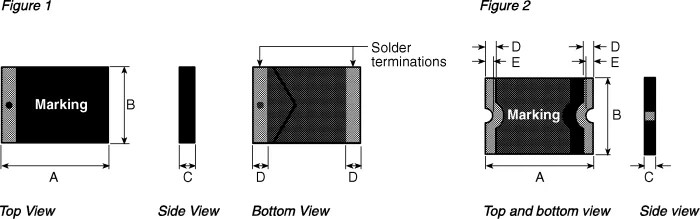

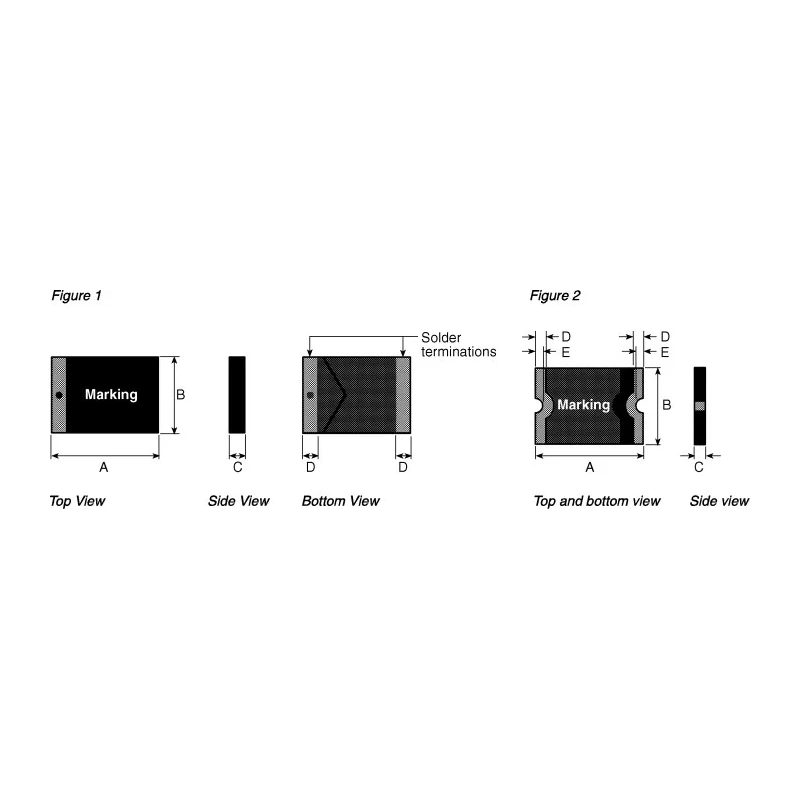

The compact dimensions of 4.73mm length, 3.41mm width, and 1.22mm height make it suitable for space-constrained circuit board designs. Tin plated terminals enhance durability and reliable connectivity.

With a power dissipation capacity of 1 watt and a maximum operating temperature of 85°C, this fuse is designed for stability across demanding electronic environments including computers, automotive systems, medical equipment, and telecommunications.

The PolySwitch Mini SMDC series is known for its fast time-to-trip (5 seconds) and low resistance (minimum 0.02 ohms, maximum 75 milliohms), reducing energy losses and improving circuit efficiency.

These resettable fuses are halogen free and RoHS compliant, aligning with modern safety and environmental standards. Applications include security systems, power supplies, power switching devices, instrumentation, control systems, audio-visual equipment, and multimedia devices.

Compact PolySwitch Mini SMDC surface-mount design suitable for electronic applications. Rated for 2 amp current and 8 volts DC voltage for low power circuit protection. Features rapid time-to-trip of 5 seconds under overload conditions.

Low resistance of 0.02 ohms minimum and 75 milliohms maximum ensures minimal power loss. Tin plated terminals provide durable and reliable electrical contact. Power dissipation rating of 1 watt supports steady performance without overheating.

Maximum operating temperature of 85°C supports stable operation in electronics environments. Maintenance-free with automatic reset capability for thousands of cycles. Ideal for use in computer, consumer, automotive, medical, and telecommunication electronics.

Halogen free construction and RoHS compliant for environmental safety. Explore more Littelfuse Resettable Fuses and other circuit protection devices on EnvMart to meet your electronics manufacturing and repair needs.
