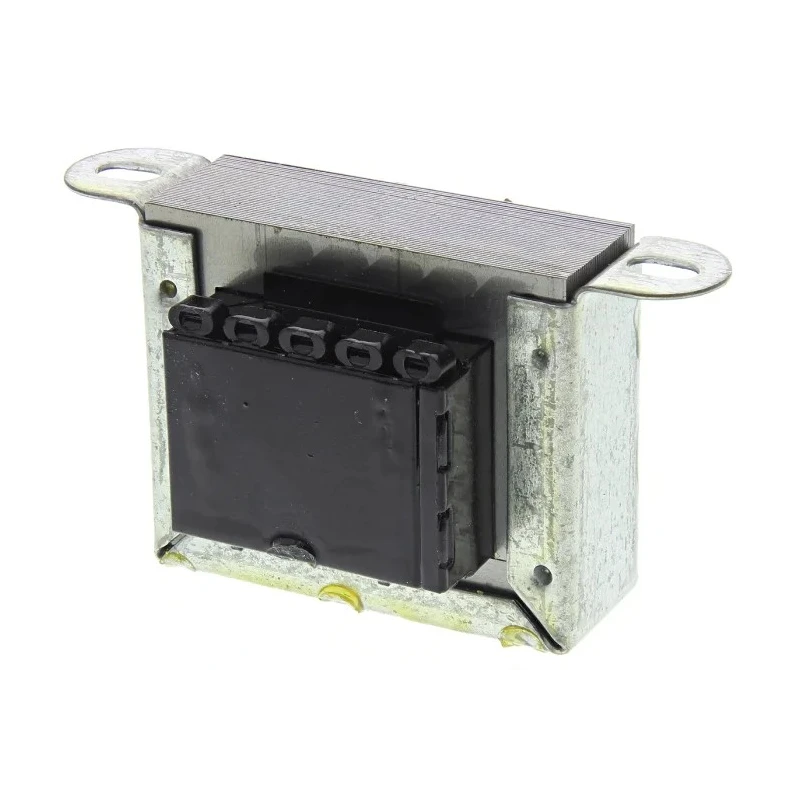

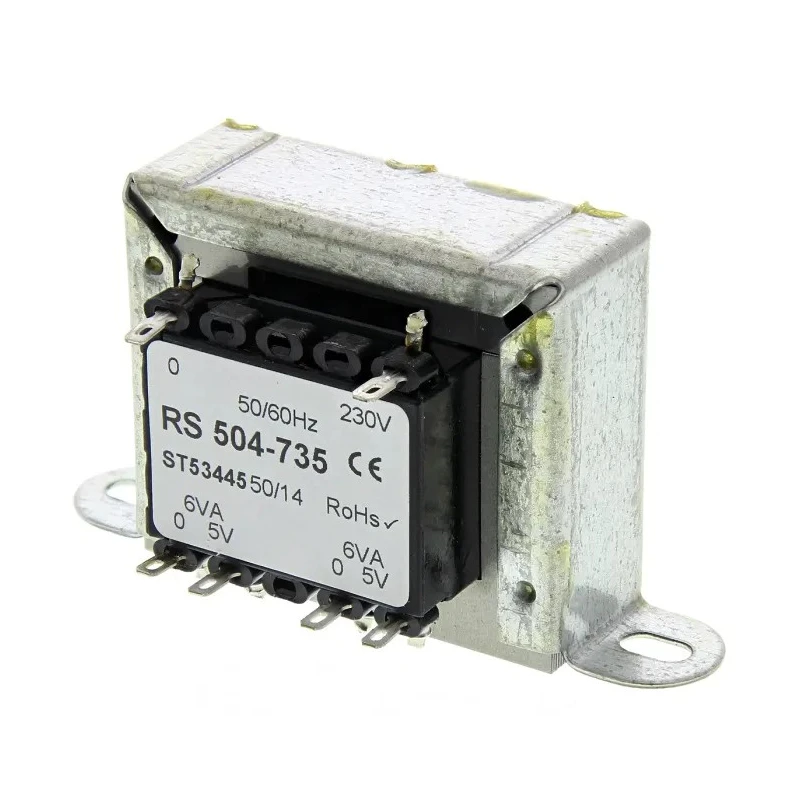

RS PRO 2 Output 12 VA Chassis Mount Transformer, 230 V ac Primary, 5 V ac Secondary, 50-60Hz, Poland 504-735
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | RS PRO |
| Length | 59mm |
| Model | 504-735 |
| Depth | 50mm |
| Gross Weight | 210g |
| Width | 50mm |
| Maximum Operating Temperature | 130°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 2 |
| Primary Voltage | 230 V ac |
| Secondary Voltage | 5 V ac |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| RS PRO 2 Output 6 VA Chassis Mount Transformer, 5 V ac, IEC 61558-2-6Brand | RS PRO |
| Walsall Transformers 12VA 2 Output Chassis Mounting Transformer, 5V acBrand | Walsall Transformers |
Key Features
- Designed for robust chassis mounting with clamp construction suitable for industrial use.
- Two independent secondary windings configurable in series or parallel for flexible voltage and current outputs.
- Compact size with dimensions 59mm (L) x 50mm (W) x 50mm (D) and weight of 210 g.
- Wide operating temperature range from -30°C to 130°C ensures reliable operation in varied conditions.
- Compliant with CE, ASNZS 61558.1, IECBSEN 615586, RoHS standards, and tested according to BS3535 and EN 60 742.
- 100% electrical and flash tested for quality assurance.
- Full varnish impregnation and fully shrouded double section bobbin enhance durability and safety.
- Ideal for industrial, commercial, and manufacturing electrical equipment applications.
Product Description
RS PRO 504-735 Chassis Mount Transformer is a 12 VA power-rated transformer with two outputs designed for mounting on chassis in electronic and electrical applications. This transformer supports a primary voltage of 230 V ac and provides a secondary voltage of 5 V ac, operating within a frequency range of 50-60 Hz.
Constructed with a double-section bobbin and fully shrouded design, it features full varnish impregnation for enhanced electrical insulation and durability. Clamp-style mounting and solder tag terminations ensure secure installation and reliable connectivity.
The device operates reliably within a temperature range of -30°C to 130°C, making it suitable for demanding industrial environments. The two independent secondary windings can be connected in series or parallel, offering versatility in output voltage and current configurations.
RS PRO 504-735 meets various international standards including CE, ASNZS 61558.1, IECBSEN 615586, RoHS, and passes rigorous electrical and flash testing to ensure operational safety and compliance.
This transformer is manufactured in Poland and finds extensive application in industrial machines, power supplies, HVAC controls, manufacturing equipment, and other electrical components requiring reliable low-voltage AC power transformation.
Robust chassis mount construction with clamp fixing. Flexible dual secondary output design permits series or parallel connection. Compact and lightweight for easy integration in electronic assemblies. Wide temperature and frequency operating ranges.
Certified for safety and environmental standards compliance. 100% electrical and flash tested for quality assurance. Ideal for industrial, laboratory, and manufacturing equipment power supply needs. Manufactured in Poland with high workmanship quality.
Explore more quality transformers and power supply components by browsing the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary voltage rating of this transformer is 230 V AC.
This model provides a secondary voltage output of 5 V AC.
The power rating of this transformer is 12 VA.
It operates within a temperature range of -30°C to 130°C.
This transformer features two independent outputs.
The dimensions of this transformer are 59mm in length, 50mm in width, and 50mm in depth.
It supports a frequency range of 50 to 60 Hz.
This model uses clamp-style mounting suitable for chassis installation.
It complies with CE, ASNZS 61558.1, IECBSEN 615586, and RoHS standards.
Yes, the two independent secondary windings can be configured in series or parallel for flexible voltage and current outputs.
The transformer features a double-section bobbin and full varnish impregnation for enhanced electrical insulation.
This transformer is manufactured in Poland.
