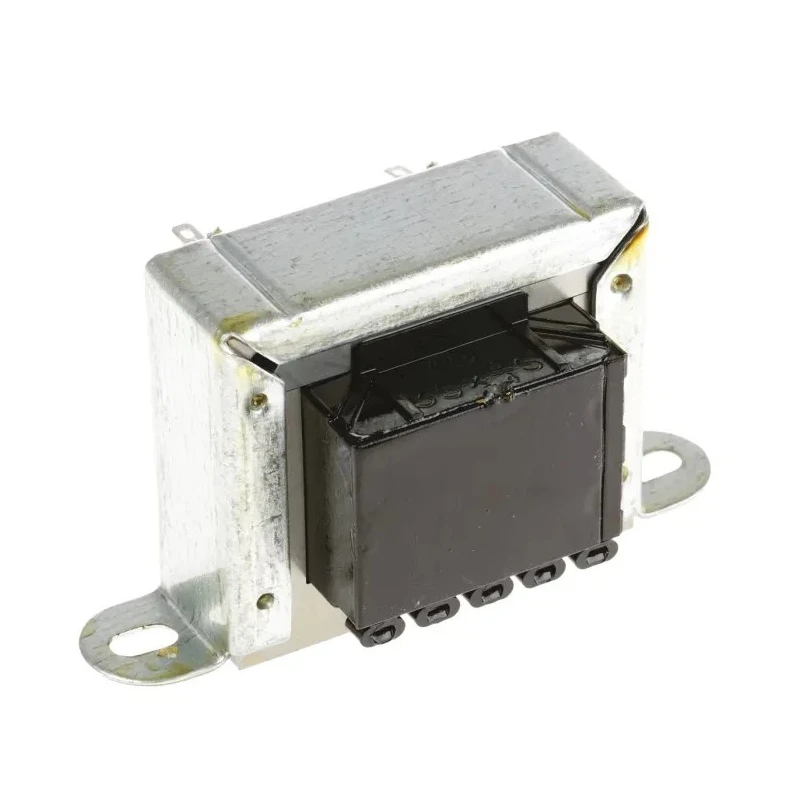

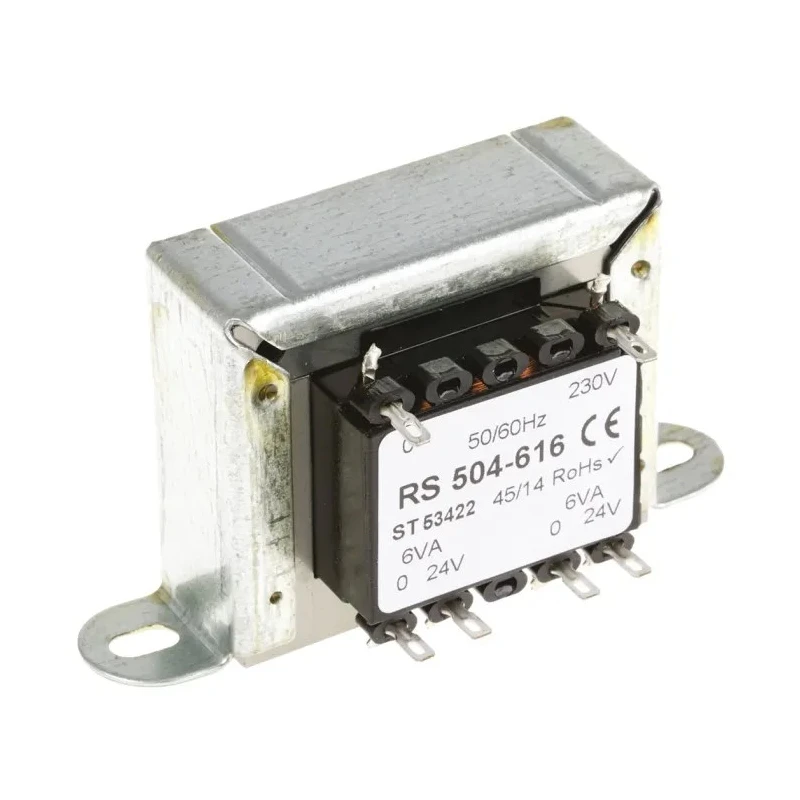

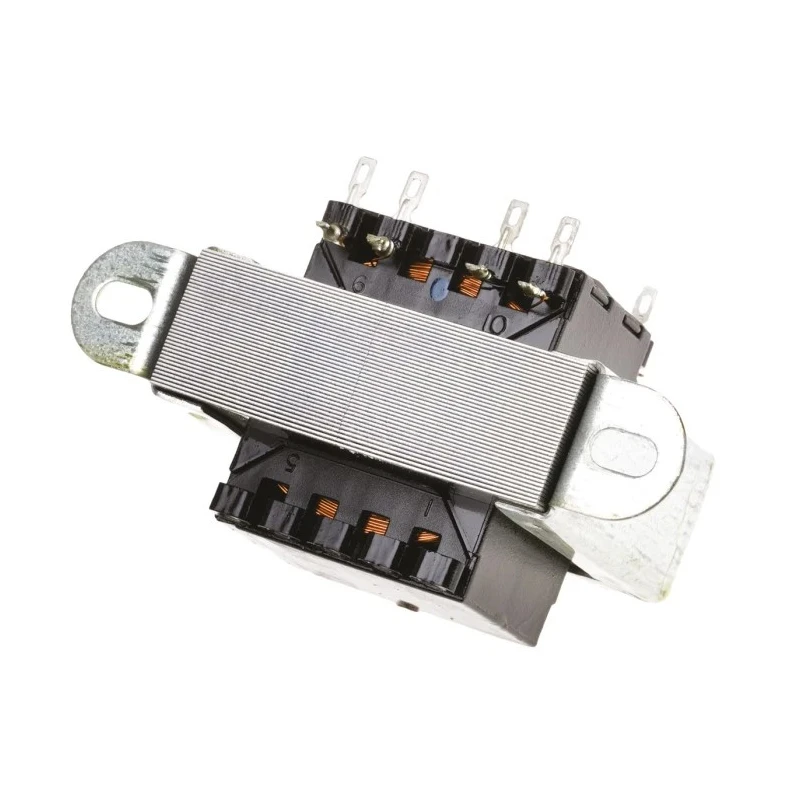

RS PRO 2 Output 12 VA Chassis Mount Transformer, 24 V ac, Double Section Bobbin, Clamp Construction, IECBSEN 615581 504-616

RS PRO 504-616 2 Output 12 VA Chassis Mount Transformer is a robust electrical component designed to provide reliable low voltage power conversion with 24 V ac secondary output. Built with double section bobbin construction and clamp mounting, this transformer is ideal for industrial, manufacturing, and power supply applications requiring secure chassis attachment and dependable performance.

This transformer supports a primary voltage of 230 V ac at 50/60 Hz frequency, delivering 12 VA power through two independent secondary windings. These can be configured in series or parallel to accommodate different voltage and current requirements, enhancing versatility in electrical system design.

Constructed with fully shrouded bobbins and complete varnish impregnation, the unit ensures excellent insulation and protection against environmental factors. Its solder tag terminations allow for straightforward wiring during installation. The device is tested to rigorous standards including BS3535, EN 60 742, IECBSEN 615581, and ASNZS 61558 series, guaranteeing safety, quality, and regulatory compliance.

Designed to operate within a temperature range from -30°C to 130°C, this transformer performs reliably under various environmental conditions. The compact form factor featuring dimensions of 59mm length, 50mm width, and 50mm depth, combined with a lightweight construction of 210 grams, makes it suitable for integration into tight spaces within electronic assemblies and industrial control panels.

Applications include power supplies, control equipment, HVAC controls, industrial automation, and other electrical systems requiring dependable voltage transformation on a chassis mount platform. The double output design offers enhanced flexibility for various circuit needs.

Features double section bobbin construction with fully shrouded bobbins for safety. Clamp construction allows secure chassis mounting with two hole fixing wrap-over clamps. Suitable for 230 V ac primary voltage and operates between -30°C to 130°C ambient temperature.

Two independent secondary windings offer flexible output connections for various applications. Fully varnish impregnated and solder tag terminations ensure durability and ease of installation. Tested in accordance with BS3535 and EN 60 742 for electrical safety and flash testing.

Compact dimensions (59mm length x 50mm width x 50mm depth) and lightweight design (210 grams).

This product is manufactured in Poland and is compliant with RoHS and CE certifications, ensuring compliance with international environmental and safety standards. For industrial engineers and technicians seeking reliable chassis mount transformers, the RS PRO 504-616 model offers quality, safety, and versatility in one package.
