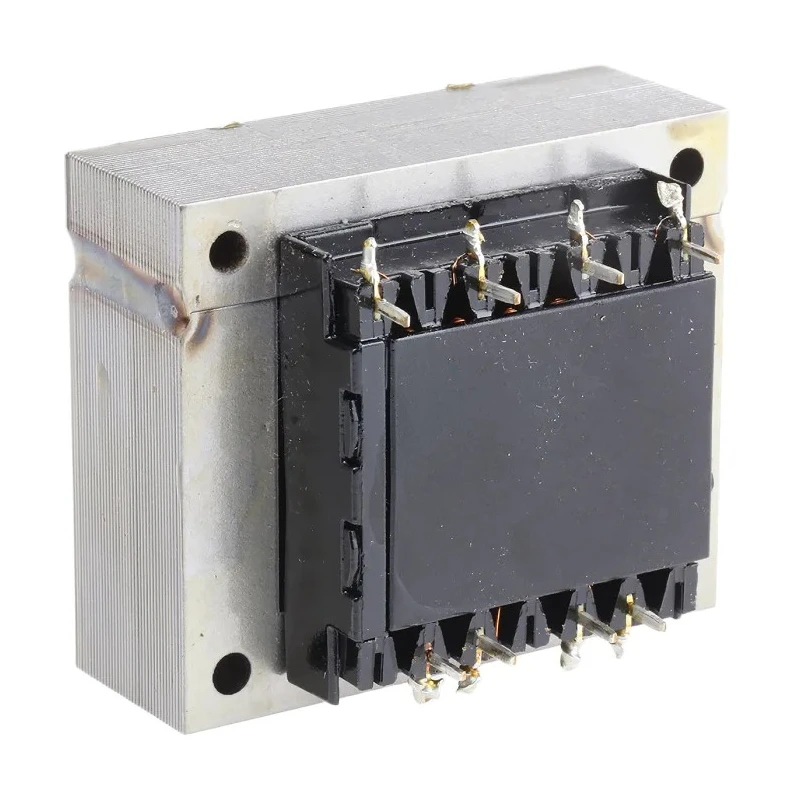

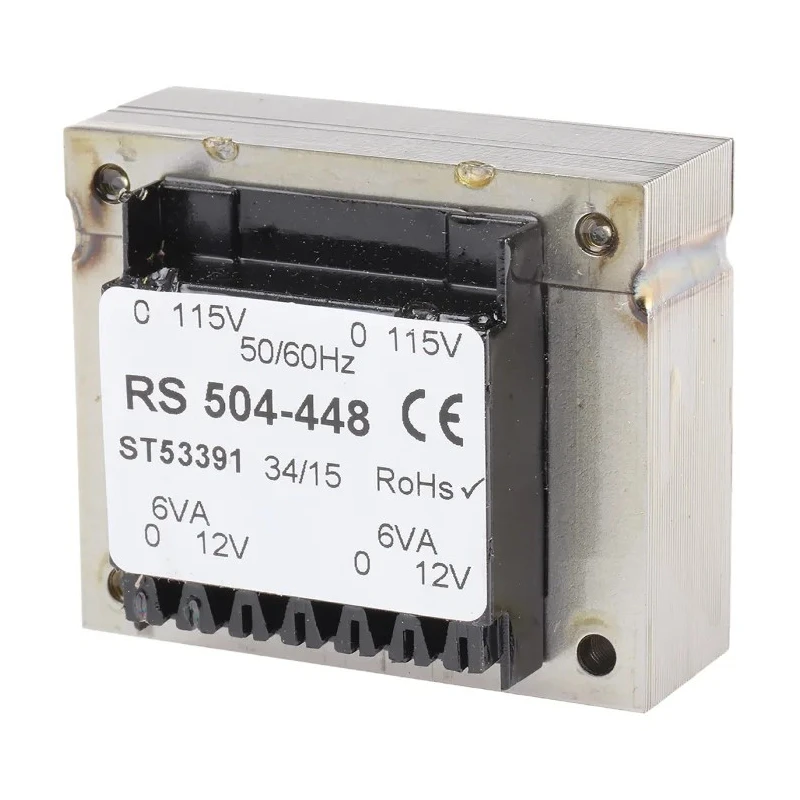

RS PRO 24 V ac 2 Output Through Hole PCB Transformer Dual Primary Winding ASNZS 61558..6 504-448

RS PRO 504-448 is a high-quality 24 V ac 2 Output Through Hole PCB Transformer featuring dual primary windings for flexible voltage input configuration. It is designed for PCB mounting applications requiring reliable power isolation and secondary voltage supply.

This transformer offers twin 115 V ac primary windings that can be connected in series for 230 V or in parallel for 115 V operation, accommodating a variety of mains voltage inputs. The secondary outputs provide two independent 24 V ac supplies for versatile circuit powering options.

Measuring 54 mm in length, 45 mm in width, and 30.41 mm in depth, this compact unit supports installation in constrained PCB footprints. The 12VA power rating and isolation voltage rated at 4 kVrms ensure safe operation for low power industrial, laboratory, and instrumentation equipment.

Constructed with fully shrouded bobbins and impregnated with varnish, this transformer is robust against thermal and electrical stresses, validated by testing to BS3535 and EN 60 742 standards. Its operational frequency range from 50 Hz to 60 Hz makes it suitable for global power system compatibility.

Compliance with ASNZS 61558..6, IECBSEN 615581, IECBSEN 615586, RoHS, and CE standards certifies this transformer's adherence to rigorous safety, environmental, and quality regulations. Designed and manufactured in Poland, it exemplifies dependable build quality for electronics manufacturers and repair professionals.

The RS PRO 504-448 transformer is ideal for use in industrial control panels, power supplies, HVAC systems, and small commercial electrical equipment requiring steady and isolated low voltage supply.

Designed for PCB mounting with through hole technique. Dual primary 115 V windings independently connectable. Two 24 V ac secondary output windings. Robust electrical isolation rated 4 kVrms. Capable of 12VA power handling for low power loads.

Compact dimensions fit confined PCB spaces. Conforms to international safety and quality standards. Fully shrouded bobbin construction for durability. Manufactured in Poland with quality assurance. Suitable for industrial, laboratory, and commercial applications.
