RS PRO 24 V AC 2 Output Through Hole PCB Transformer ASNZS 61558.1 CE IECBSEN 615581 504-357

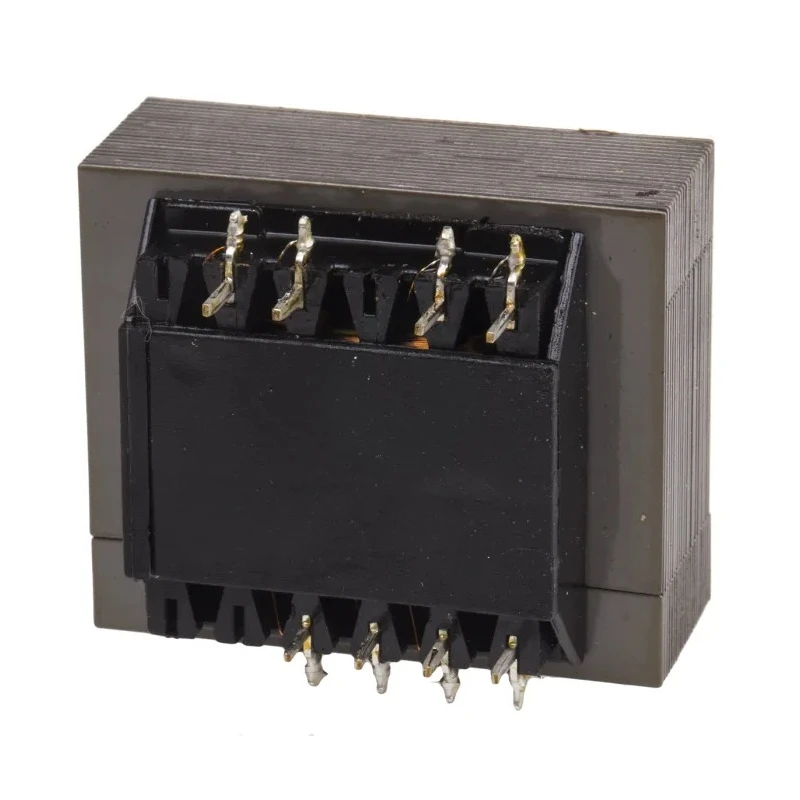

RS PRO 504-357 is a 24 V AC 2 output through hole PCB transformer engineered for industrial and electronic equipment requiring precise and stable voltage transformation.

This transformer includes twin 115 V AC primary windings which can be connected either in series for 230 V or parallel for 115 V AC operation, making it versatile for different power supply configurations. The device features fully shrouded bobbins and full varnish impregnation to ensure excellent electrical insulation and thermal performance.

Tested rigorously in compliance with BS3535 and EN 60742 standards, the component meets multiple international certifications including ASNZS 61558.1, CE, IECBSEN 615581, ASNZS 61558.6, and RoHS ensuring safety and environmental compliance.

With dimensions of 43mm length, 36mm width, and 33mm depth, and a weight of 400 grams, it fits easily onto PCBs with through-hole mounting, suitable for compact electronic assemblies. The transformer operates reliably within a frequency range of 50 to 60 Hz and withstands maximum operating temperatures up to 130°C.

Features twin 115 V AC primary windings configurable for 115 V or 230 V operation. Fully shrouded bobbins with varnish impregnation for electrical isolation. Compliance with multiple international standards including RoHS and CE.

Compact through-hole mounting suitable for PCB assemblies. Tested for quality and performance according to BS3535 and EN 60742. Thermally rated for up to 130°C operating temperature. Designed for 24 V AC secondary voltage output with 2 output windings.

Manufactured in Poland ensuring certified production quality.

This transformer is ideal for use in industrial electronics, power supplies, manufacturing control systems, and other applications requiring a reliable PCB-mounted transformer solution. It ensures electrical isolation and stable voltage performance critical for sensitive electronic devices.
