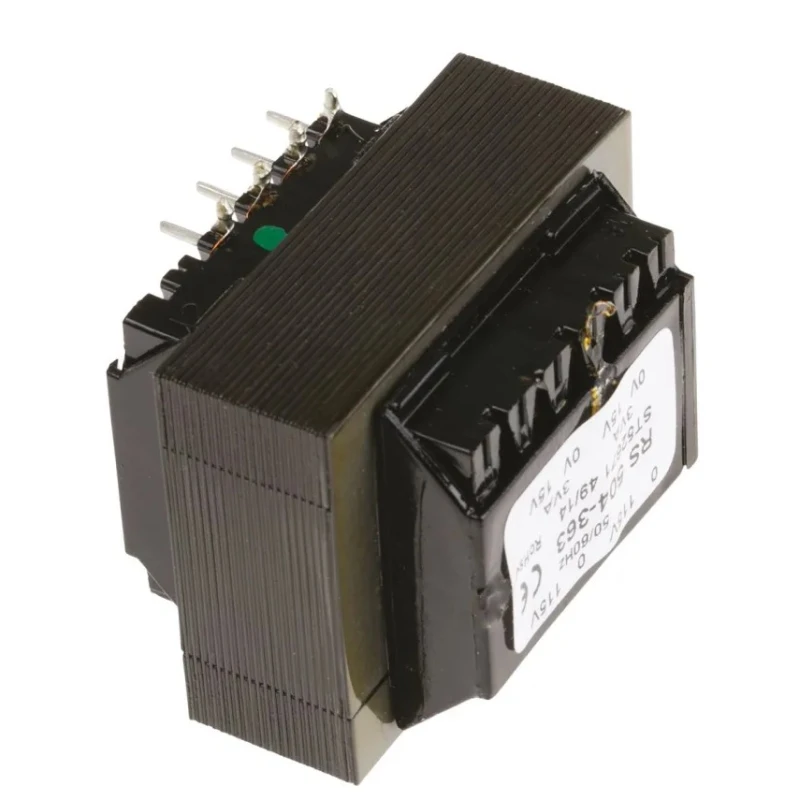

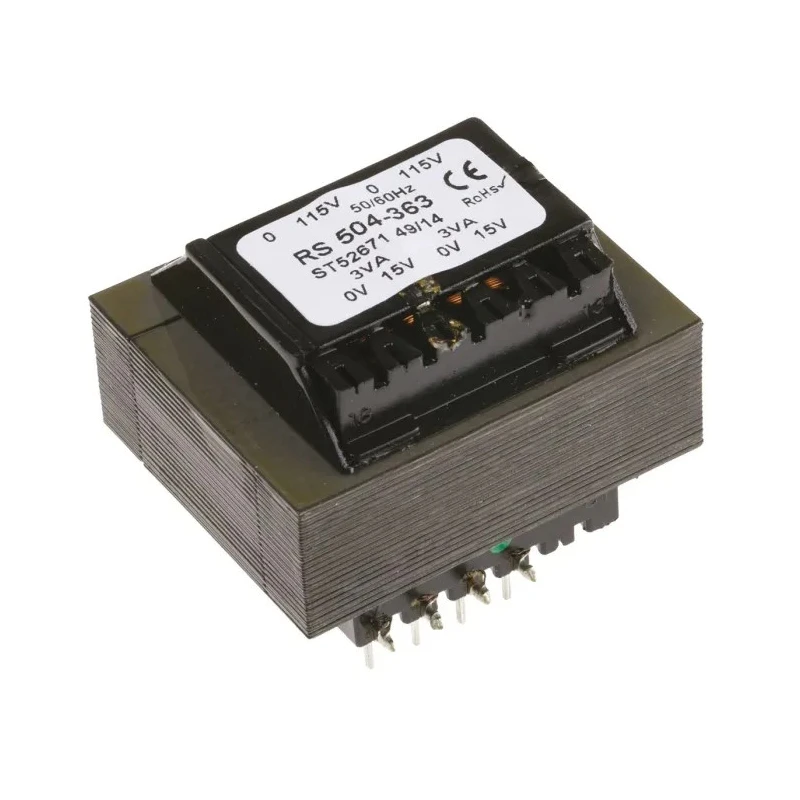

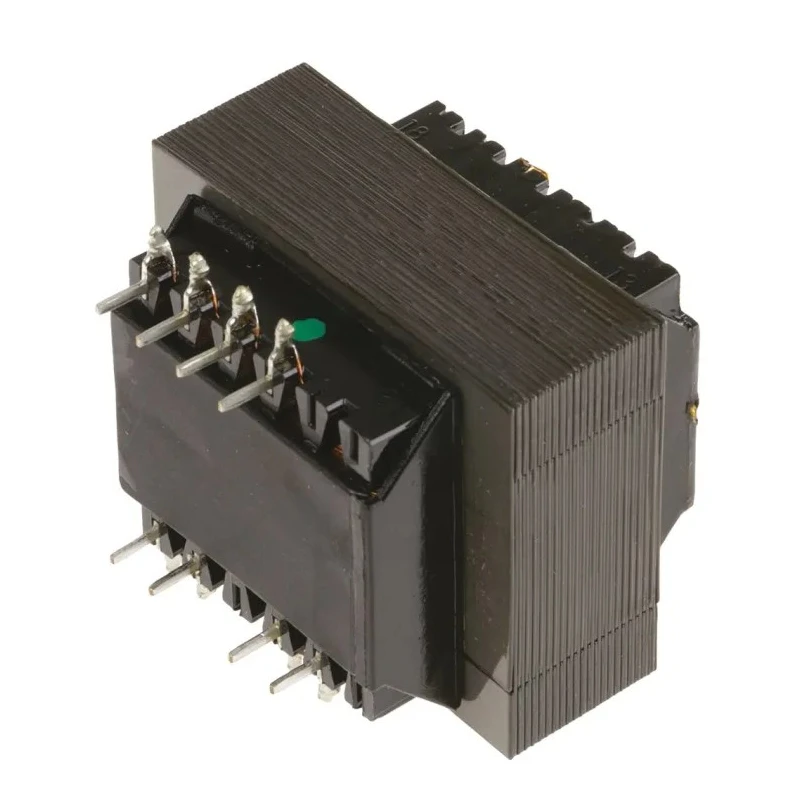

RS PRO 24 V ac 2 Output PCB Transformer, Twin 115V ac Primary, 12 VA Power, IECBSEN 615581, ASNZS 61558.6, ASNZS 504-363
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | RS PRO |
| Length | 43mm |
| Model | 504-363 |
| Depth | 33mm |
| Gross Weight | 400g |
| Width | 36mm |
| Mount Type | PCB |
| Maximum Operating Temperature | 130°C |
| Number of outputs | 2 |
| Primary Voltage | 2 x 115 V ac |
| Secondary Voltage | 24 V ac |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Walsall Transformers 15V ac 2 Output Through Hole PCB Transformer, 6VABrand | Walsall Transformers |
Key Features
- The transformer features two independent outputs with 24 V ac secondary voltage.
- Primary windings can be connected in series for 230 V or parallel for 115 V operation.
- The unit is designed for operation within 50 Hz to 60 Hz frequency range.
- Maximum operating temperature is rated at 130°C for reliable performance.
- Fully shrouded bobbin construction ensures electrical safety and flash testing compliance.
- Supports standard PCB mount installation with compact dimensions of 43 × 36 × 33 mm.
- Compliance with IECBSEN 615581, ASNZS 61558.6, ASNZS 61558.1, CE, IECBSEN 615586 and RoHS directives.
- The transformer is manufactured in Poland adhering to strict quality standards.
Product Description
RS PRO 504-363 is a high-quality 24 V ac 2 output PCB transformer designed for electronic applications requiring robust and reliable power conversion. It features twin 115 V ac primary windings suitable for either 230 V or 115 V connection configurations, supporting operation at 50 Hz to 60 Hz frequencies.
This PCB mounted transformer delivers 12 VA power with fully shrouded bobbin construction and full varnish impregnation for insulation integrity. It is 100% electrically and flash tested to ensure safety and performance compliance.
The compact unit measures 43 mm in length, 36 mm in width, and 33 mm in depth, making it suitable for tight spaces on PCB assemblies. With a maximum operating temperature of 130°C, it can sustain demanding industrial and commercial environments.
Compliance with multiple standards including IECBSEN 615581, ASNZS 61558.6, ASNZS 61558.1, CE marking, IECBSEN 615586, and RoHS ensures the transformer meets strict international safety and environmental requirements.
Industrial applications include power supplies, control panels, laboratory equipment, and other PCB mounted electrical devices requiring isolated dual output voltages. The transformer’s robust design and standardized approvals make it suitable for use in electronics manufacturing, testing, and repair facilities.
The transformer has two secondary outputs delivering 24 V ac voltage. Primary side can be configured for 115 V or 230 V supply using twin windings. Compact PCB mount form factor ideal for electronics integration. High temperature tolerance of 130°C supports demanding use cases.
Certified to multiple regional and international standards assuring quality and safety. Manufactured in Poland, ensuring European quality control. Ideal for industrial, laboratory, and electronics manufacturing applications requiring robust power transformation.
Explore the Electronics & Electricals category on EnvMart for a wide range of PCB Transformers and related power supply components from reputed brands like RS PRO, offering quality and reliability for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers a power rating of 12 VA.
It provides a secondary voltage output of 24 V ac.
The primary windings can be connected in series for 230 V or in parallel for 115 V operation.
This transformer operates within a frequency range of 50 Hz to 60 Hz.
The compact dimensions of this model are 43 mm in length, 36 mm in width, and 33 mm in depth.
The maximum operating temperature is rated at 130°C.
It supports standard PCB mount installation, making it suitable for tight spaces on PCB assemblies.
It complies with IECBSEN 615581, ASNZS 61558.6, ASNZS 61558.1, CE marking, and RoHS directives.
It is suitable for industrial applications including power supplies, control panels, and laboratory equipment requiring isolated dual output voltages.
The gross weight of this transformer is 400 g.
Yes, it features fully shrouded bobbin construction and is 100% electrically and flash tested to ensure safety and performance compliance.
It is manufactured in Poland, adhering to strict quality standards.
