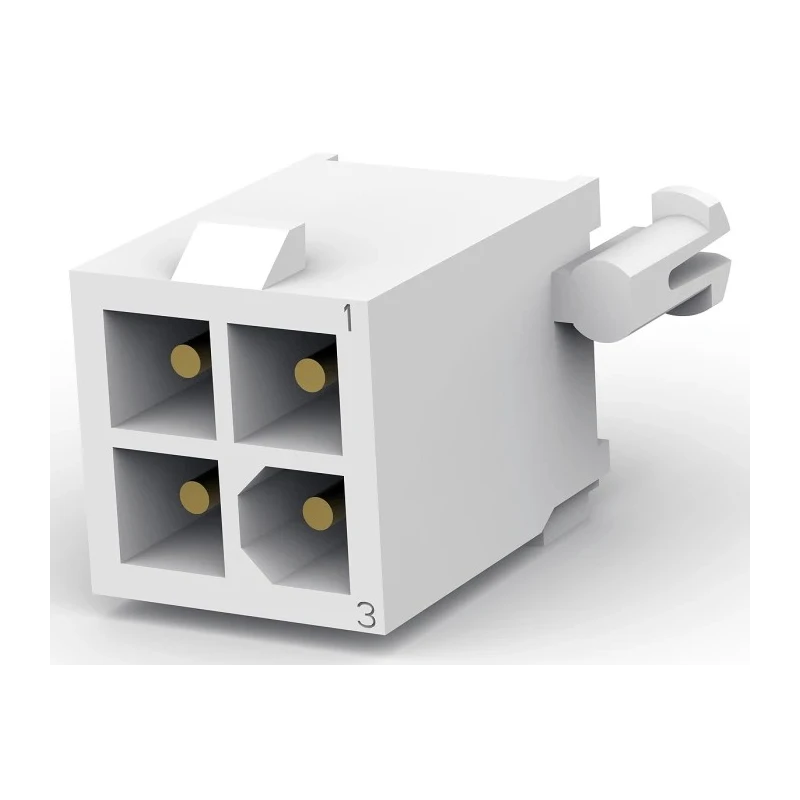

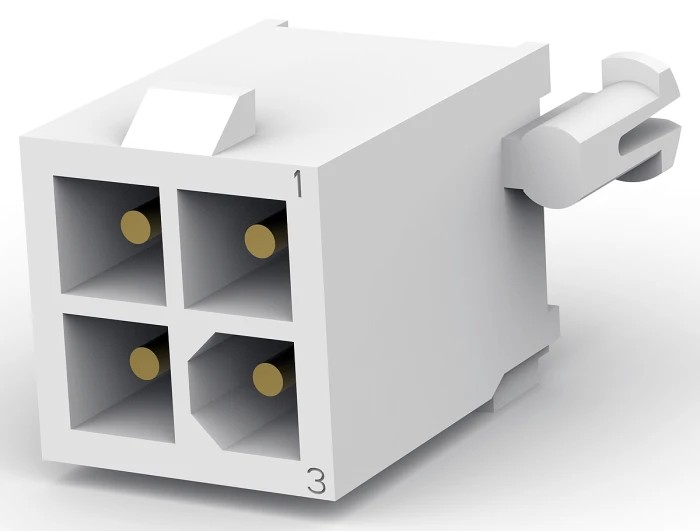

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header 4 Contacts 4.14 mm Pitch 2 Row 1-770174-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 4.14mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.69mm |
Key Features
- This PCB header supports a 9.5A current rating for reliable performance.
- The housing is made of white UL94V-0 nylon material offering durability and flame resistance.
- It features 4 male brass contacts plated with gold for excellent conductivity and corrosion resistance.
- The connector system is shrouded with a positive locking latch mechanism ensuring secure mating.
- Designed for through-hole mounting and solder termination for durable electrical connections.
- Operating temperature ranges from -55°C to 105°C, suitable for harsh environments.
- Tail pin length is 3.69 mm facilitating reliable PCB insertion and retention.
Product Description
TE Connectivity 1-770174-1 Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header is engineered for wire-to-board electrical connections with 4 contacts arranged in 2 rows and a 4.14 mm pitch. The white nylon housing complies with UL94V-0 flame retardant standards and incorporates a positive locking latch to assure secure mating and PCB retention.
This connector features male brass contacts plated with gold to provide excellent conductivity and resistance to corrosion. It is designed for through-hole mounting on PCBs with solder termination, ensuring stable mechanical and electrical connections essential for industrial electronics.
The connector is rated for 9.5A current and 600V voltage, supporting demanding power and signal transmission requirements across industrial, manufacturing, and electronic assembly applications.
Operating temperature ranges from -55°C to 105°C, making this PCB header reliable under a wide range of environmental conditions often encountered in industrial settings.
The tail pin length of 3.69 mm optimizes the insertion depth for secure mechanical contact on printed circuit boards. This part is an integral component of the Mini-Universal MATE-N-LOK connector system, compatible with various mating connectors for versatile configurations.
This connector supports robust wire-to-board connections in electronic and power applications. The flame-retardant nylon housing ensures safety and durability. Gold plating on brass contacts enhances electrical performance and longevity.
Positive locking mechanism avoids accidental disconnections. Suitable for industrial electronics, manufacturing assemblies, and PCB designs. Explore EnvMart's extensive selection of PCB Connectors to find compatible mating plugs and accessories to complete your system integration requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 9.5A, ensuring reliable performance in various applications.
The voltage rating for this connector is 600V, making it suitable for demanding power transmission requirements.
The housing is made of white nylon material that complies with UL94V-0 flame retardant standards, while the contacts are brass plated with gold for enhanced conductivity and corrosion resistance.
This model features a pitch of 4.14 mm with 4 male contacts arranged in 2 rows.
It is designed for through-hole mounting with solder termination, ensuring stable electrical connections.
The tail pin length is 3.69 mm, which facilitates reliable PCB insertion and retention.
Yes, it features a positive locking latch mechanism that ensures secure mating and prevents accidental disconnections.
Yes, it is suitable for industrial electronics, manufacturing assemblies, and PCB designs due to its robust construction and specifications.
The orientation of this model is straight, allowing for straightforward installation on PCBs.
The country of origin for this PCB header is India.
