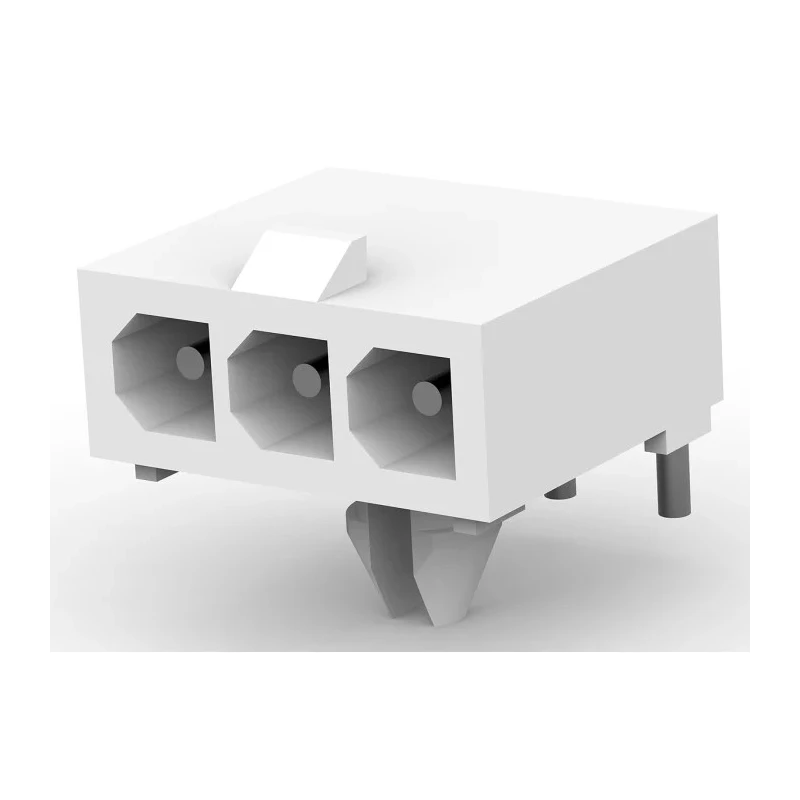

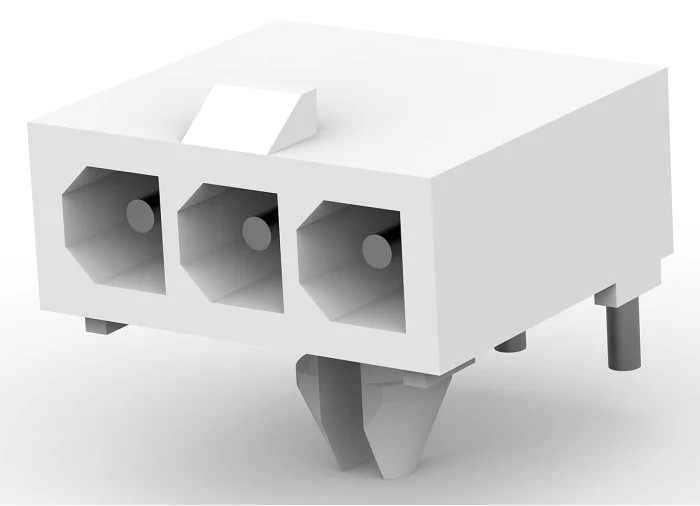

TE Connectivity Mini-Universal MATE-N-LOK Series Right Angle Through Hole PCB Header 3 Contact 4.14 mm Pitch 600V 1-770967-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 4.14mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.69mm |
Key Features
- Constructed with a shrouded nylon housing ensuring durability and insulation.
- Features 3 brass male contacts with tin plating for optimal conductivity.
- Rated for a maximum current of 9.5A and voltage of 600V.
- Mount type is through hole with solder termination for secure PCB attachment.
- Operating temperature ranges from -55°C to 105°C suitable for various industrial conditions.
- Housing includes positive locking latch and board locks for secure mating and retention.
- The tail pin length measures 3.69 mm providing reliable electrical contact.
- Single row connector designed for efficient PCB header connections.
Product Description
TE Connectivity 1-770967-0 Mini-Universal MATE-N-LOK Series Right Angle Through Hole PCB Header is engineered for dependable wire-to-board connection applications in industrial, electronics manufacturing, and HVAC systems. The right angle orientation and through hole mount type facilitate robust PCB integration, enabling efficient circuit design and assembly.
Constructed from UL94V-0 rated white nylon housing, it provides excellent insulation and flame resistance. The connector incorporates a positive locking latch mechanism that ensures secure mating with corresponding plugs, preventing accidental disconnection under vibration or mechanical stress.
This PCB header comprises 3 male brass contacts with tin plating, delivering high electrical conductivity and corrosion resistance. It is rated for a current of 9.5 amperes and voltage up to 600V, suitable for low to medium power electronic circuits.
Operating temperature spans from -55°C to 105°C, making it reliable in a diverse set of environmental conditions encountered in industrial and commercial electronic devices. The tail pins extend 3.69 mm for assured solder joint integrity and mechanical stability on PCBs.
The connector's single row 4.14 mm pitch design offers compatibility with Mini-Universal MATE-N-LOK series plug housings using socket contacts, facilitating versatile system layouts. Its shrouded configuration provides protection against damage and short circuits, enhancing system safety.
Shrouded nylon housing with UL94V-0 flame rating for safety and durability. 3 Brass male contacts with tin plating for electrical performance. Right angle orientation suited for compact PCB layouts. Positive locking latch and board locks secure connection and retention.
Through hole mount with solder termination for reliable PCB solder joints. Operating temperature range from -55°C to 105°C ensures versatile application. Compatible within the Mini-Universal MATE-N-LOK Connector System range.
This product is ideal for use in industrial electronics, manufacturing equipment, control systems, and HVAC applications where reliable, secure PCB connections are critical. TE Connectivity's trusted quality ensures long-term performance in demanding environments.
Explore more in the PCB Connectors & Wire Housings category at EnvMart for advanced electronic components supporting various industries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 9.5A.
It can handle a maximum voltage of 600V.
The operating temperature ranges from -55°C to 105°C, making it suitable for various industrial conditions.
This connector features 3 male contacts.
The pitch size is 4.14 mm.
It utilizes a through hole mount type with solder termination for secure PCB attachment.
The housing is made of nylon, and the contacts are brass with tin plating for optimal conductivity.
Yes, it includes a positive locking latch and board locks to ensure secure mating and retention.
The tail pin length measures 3.69 mm, providing reliable electrical contact.
It is suitable for wire-to-board connection applications in industrial electronics, manufacturing equipment, control systems, and HVAC systems.
The country of origin for this PCB header is India.
