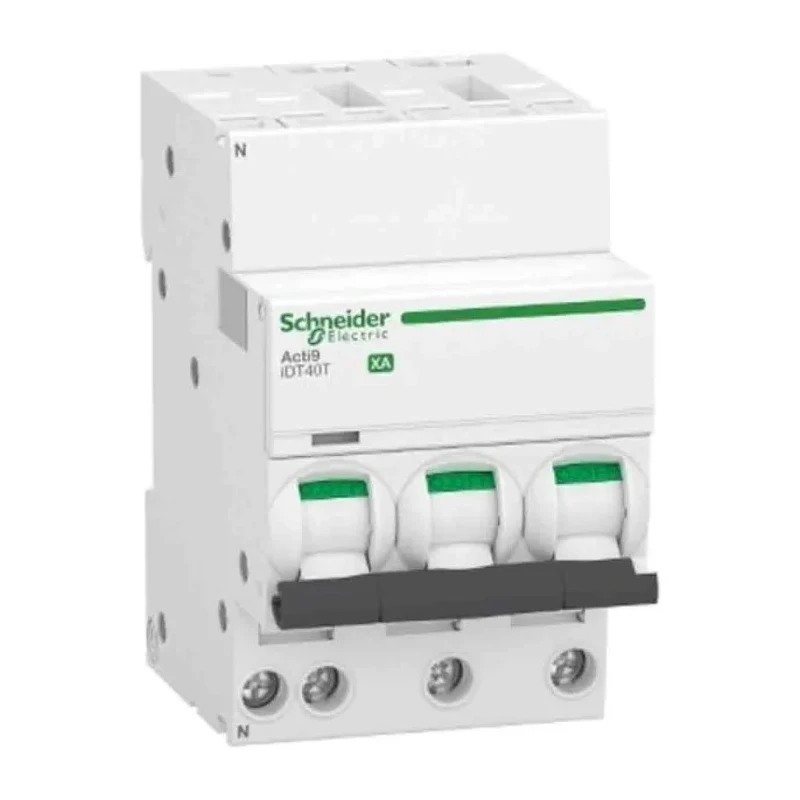

Schneider Electric Acti9 iDT40 Miniature Circuit Breaker, 3-Pole, 16A, Type C, 230V AC, 7.5 kA Breaking Capacity A9PA2716
Specifications
| Country of Origin | Hungary |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9PA2716 |
| Depth | 74mm |
| IP Rating | IP20 |
| Width | 18mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | Acti9 iDT40 |
| Terminal type | Screw |
| Breaking Capacity | 7.5kA |
| Number of Poles | 3 |
| Standards/Approvals | CE, EN IEC 60898-1, EN IEC 60947-2, REACH, RoHS |
| Rated AC Voltage | 230V |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Designed for circuit protection against overload and short circuits.
- Offers a breaking capacity of 7.5 kA ensuring safety in high fault conditions.
- Thermal magnetic trip unit ensures accurate tripping mechanism.
- Mounts easily on DIN rails for flexible installation.
- Constructed with screw-type terminals for secure connections.
- Rated with IP20 for protection against solid objects.
- Reset actuator is a toggle switch for convenient manual operation.
- Complies with international standards including CE, EN IEC 60898-1, EN IEC 60947-2, REACH, and RoHS.
Product Description
Schneider Electric A9PA2716 Miniature Circuit Breaker is engineered for dependable protection of electrical circuits in industrial and commercial environments. This 3-pole breaker has a current rating of 16 amperes and operates at a rated AC voltage of 230 volts, making it ideal for typical low-voltage power distribution systems.
The breaker uses a thermal magnetic tripping mechanism with type C characteristics, designed to protect circuits from overloads and short circuits effectively. It offers a high breaking capacity of 7.5 kA, ensuring reliable operation under fault conditions. The compact dimensions and IP20 protection rating facilitate installation in control panels and switchboards with adequate safety qualifications.
The device is part of Schneider Electric's Acti9 iDT40 series, renowned for quality and conformity to global standards including CE marking, EN IEC 60898-1, and EN IEC 60947-2. The breaker features screw terminals for secure wiring and a toggle switch reset actuator for user-friendly manual control.
This miniature circuit breaker is suitable for use in electrical distribution, automation systems, industrial equipment protection, HVAC systems, and commercial electrical installations. Its DIN rail mounting support simplifies system integration and maintenance.
Set includes: 1 Pc Schneider Electric Acti9 iDT40 Miniature Circuit Breaker 3-Pole, 16A, Type C, model A9PA2716. Designed for circuit protection against overload and short circuits. Offers a breaking capacity of 7.5 kA ensuring safety in high fault conditions.
Thermal magnetic trip unit ensures accurate tripping mechanism. Mounts easily on DIN rails for flexible installation. Constructed with screw-type terminals for secure connections. Compact dimensions: 85mm height, 74mm depth, 18mm width.
Rated with IP20 for protection against solid objects. Reset actuator is a toggle switch for convenient manual operation. Complies with international standards including CE, EN IEC 60898-1, EN IEC 60947-2, REACH, and RoHS.
Suitable for industrial, electrical distribution, automation, and HVAC applications. Explore more Schneider Electric circuit protection devices and components on EnvMart for reliable industrial and commercial installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers a breaking capacity of 7.5 kA, ensuring reliable operation under fault conditions.
It has a current rating of 16A, making it suitable for typical low-voltage power distribution systems.
The rated AC voltage for this circuit breaker is 230V.
This model is a 3-pole circuit breaker, designed for effective circuit protection.
It uses a thermal magnetic tripping mechanism, which effectively protects circuits from overloads and short circuits.
The dimensions are 85mm in height, 74mm in depth, and 18mm in width.
It is constructed with screw-type terminals for secure connections.
Yes, it complies with several international standards including CE, EN IEC 60898-1, and EN IEC 60947-2.
The IP rating is IP20, providing protection against solid objects.
The reset actuator is a toggle switch, allowing for convenient manual operation.
It mounts easily on DIN rails, facilitating flexible installation in control panels and switchboards.
It is suitable for use in electrical distribution, automation systems, industrial equipment protection, and HVAC systems.
