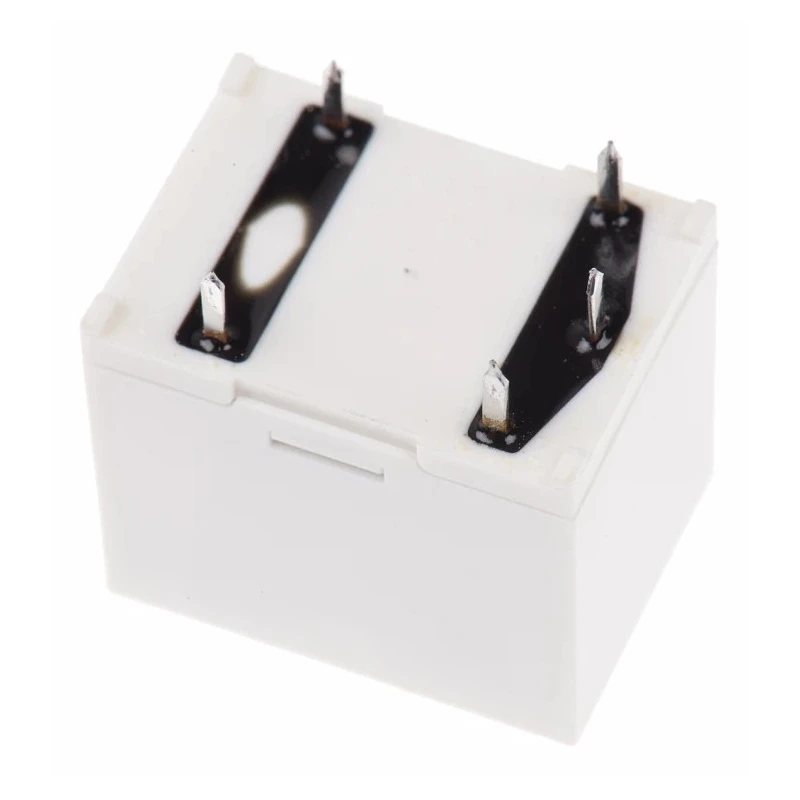

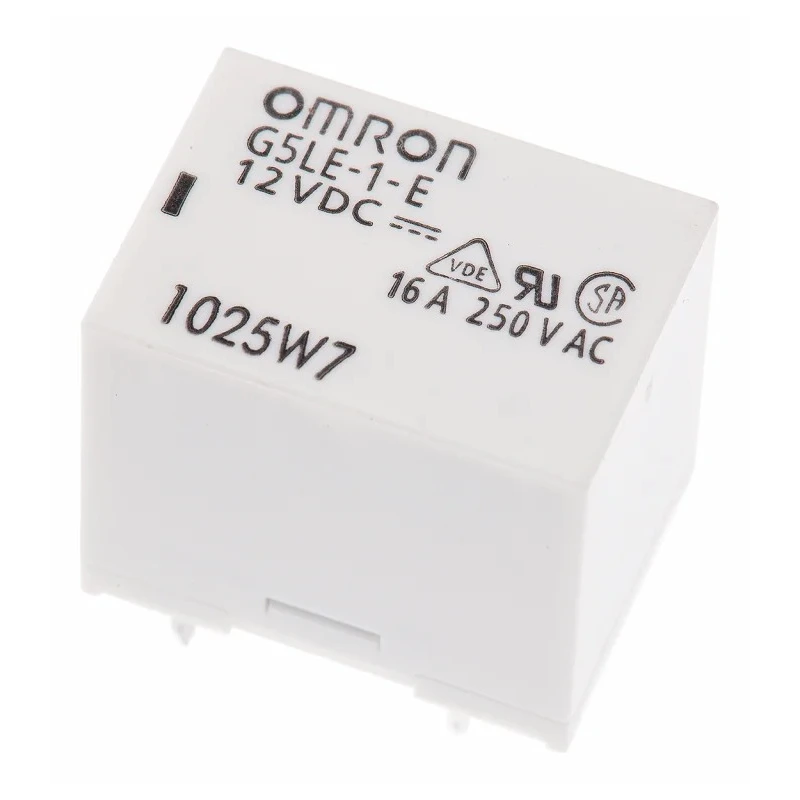

Omron PCB Power Relay, 12V DC Coil, 16A Switching Current, SPDT G5LE-1-E DC12
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Height | 19mm |
| Length | 22.5mm |
| Model | G5LE-1-E DC12 |
| Width | 16.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5LE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 35V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- The relay adopts a subminiature 'sugar cube' format ideal for control circuit applications.
- It supports high current switching capacity of up to 16A.
- The coil operates at 12V DC with coil resistance of 360Ω and power consumption of 400mW.
- The relay withstands impulse voltages up to 4500V.
- Maximum operating temperature is 85°C with a minimum of -25°C.
- Contact material is silver alloy providing a contact resistance of 100mΩ.
- The device switches DC voltage up to 35V and AC voltage up to 250V.
- Solder terminal types enable secure PCB mounting.
Product Description
Omron G5LE-1-E DC12 PCB Power Relay is a subminiature 'sugar cube' relay designed for efficient and reliable control circuit applications. Featuring a 12V DC coil and SPDT contact configuration, it offers a high switching current capacity of 16A, making it suitable for various industrial and electronic uses.
This relay is engineered to withstand impulse voltages up to 4500V, ensuring durability and safety in demanding electrical environments. With a coil resistance of 360Ω and a power usage of 400mW, it balances performance and energy efficiency.

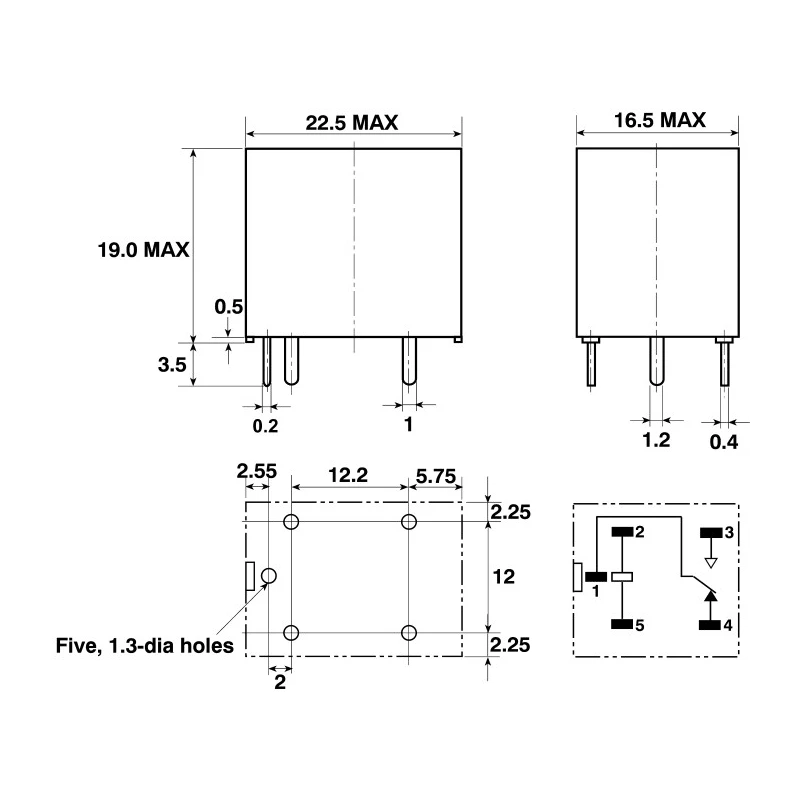

The device operates reliably within a temperature range of -25°C to 85°C. Its compact dimensions - 22.5mm length, 16.5mm width, and 19mm height - make it ideal for PCB mounting in limited spaces. The silver alloy contact material ensures minimal contact resistance at 100mΩ, supporting stable and efficient switching.
This relay supports switching of DC voltages up to 35V and AC voltages up to 250V, complemented by solder-type terminals for secure PCB integration. Compliance with RoHS standards confirms adherence to environmental regulations.
Omron’s G5LE series relays are widely used in industrial control systems, automation equipment, and electrical devices requiring compact and reliable switching solutions. Malaysia is the country of origin for this product.
The relay adopts a subminiature 'sugar cube' format ideal for control circuit applications. High switching current capacity of 16A ensures efficient power management. Operates at 12V DC coil voltage with coil resistance of 360Ω.
Dimensions: 22.5mm (L) x 16.5mm (W) x 19mm (H) offer compact installation. Contact configuration is SPDT with silver alloy contacts. Contact resistance is low at 100mΩ for reliable switching. Maximum operating temperature of 85°C and minimum -25°C enhance durability.
Switching DC voltage up to 35V and AC voltage up to 250V. Complies with RoHS environmental standards. Manufactured in Malaysia. Explore more industrial and electronic components in the Power Relays category on EnvMart for reliable and quality-approved solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a high switching current capacity of 16A, making it suitable for various control circuit applications.
The coil operates at a voltage of 12V DC, with a coil resistance of 360Ω.
The relay has compact dimensions of 22.5mm in length, 16.5mm in width, and 19mm in height, making it ideal for PCB mounting.
It features a Single Pole Double Throw (SPDT) contact configuration, which allows for versatile switching applications.
The maximum operating temperature for this unit is 85°C, while the minimum is -25°C, allowing it to function in a wide range of environments.
It can switch DC voltages up to 35V and AC voltages up to 250V, providing flexibility for different applications.
The contact material is silver alloy, which ensures a low contact resistance of 100mΩ for reliable switching performance.
The coil has a power consumption of 400mW, balancing performance and energy efficiency.
It features solder-type terminals, which enable secure mounting on PCBs.
Yes, it complies with RoHS standards, confirming adherence to environmental regulations.
This product is manufactured in Malaysia, ensuring quality and compliance with industry standards.
This model is part of the G5LE series, which is known for its compact and reliable switching solutions.
