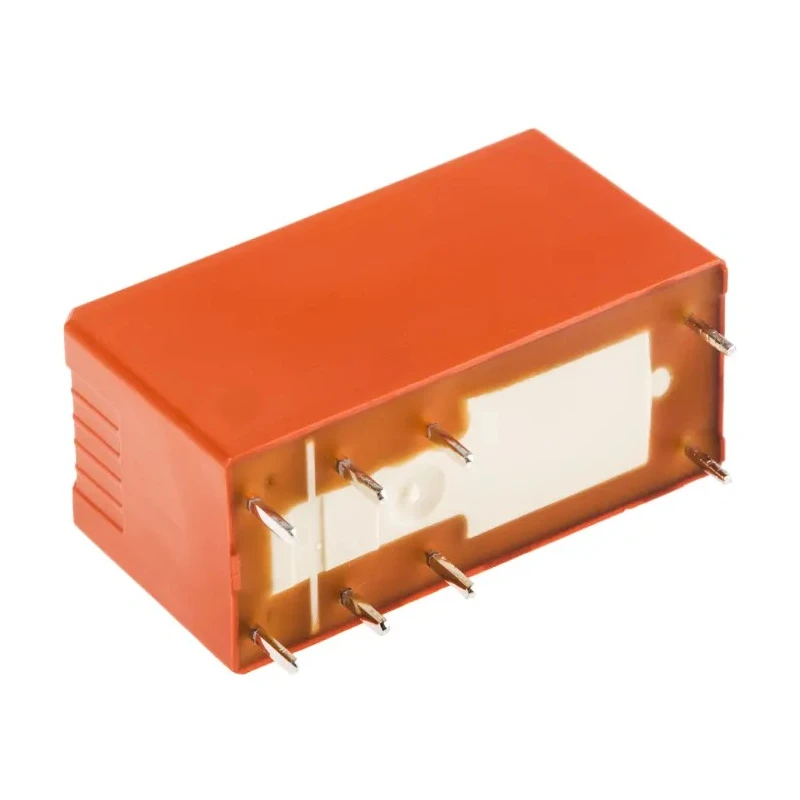

TE Connectivity PCB Power Relay 12V DC Coil 16A Switching Current SPDT RTH14012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTH14012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RTH |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, IEC 61810 |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 500mW |
Key Features
- Designed for high temperature operation up to 105°C ambient.
- Features a sensitive 500mW coil power and 360Ω coil resistance.
- Silver nickel alloy contacts ensure durability and performance.
- PCB mount type with solder terminal and 5mm pinning for easy installation.
- Supports switching AC voltage up to 400V AC and switching power of 4kVA.

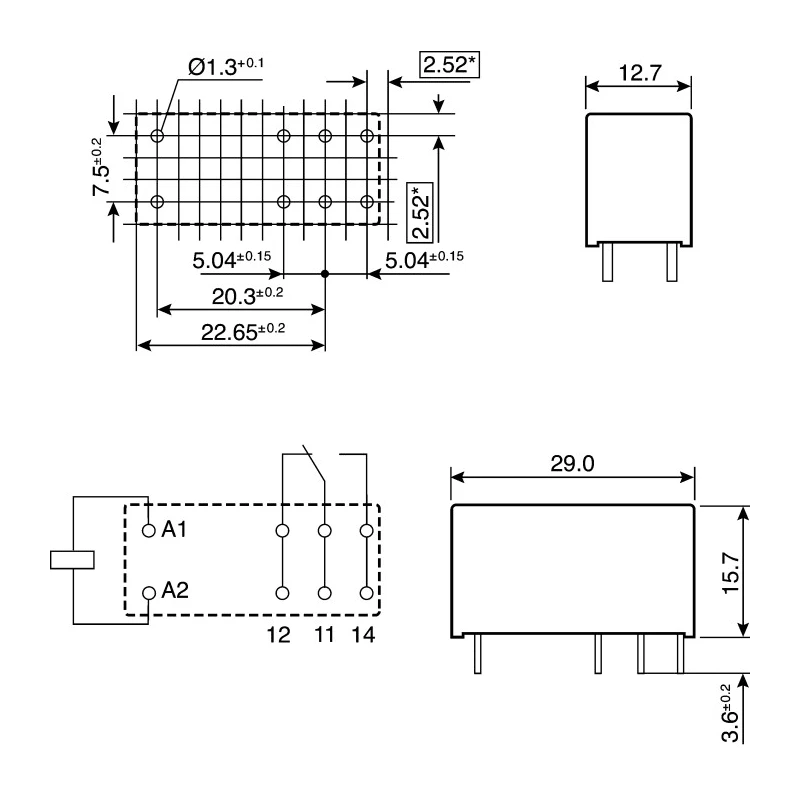

- Compact size with dimensions 29mm length, 15.7mm height, and 12.7mm width.
- Reinforced insulation and flux tight orange enclosure for reliability under demanding conditions.
- Applications include oven control and cooking plate control in industrial and commercial environments.
Product Description
TE Connectivity RTH14012 PCB Power Relay is a high-performance relay designed for PCB mounting and capable of operating in ambient temperatures up to 105°C. It features a 12V DC coil voltage and a maximum switching current of 16A with SPDT contact configuration, offering reliable switching capabilities for demanding industrial applications.
This power relay uses silver nickel alloy contacts for enhanced durability and low contact resistance. It is supplied with solder terminal type and 5mm pinning, facilitating robust and straightforward PCB mounting. The relay is housed in a flux tight orange enclosure to resist environmental stress and contaminants.
With a coil power rating of 500mW and coil resistance of 360Ω, it offers a sensitive switching mechanism requiring minimal coil current. It supports switching AC voltage up to 400V AC and a switching power rating of 4kVA, making it suitable for power control applications.
The compact relay measures 29mm in length, 15.7mm in height, and 12.7mm in width, suitable for space-constrained designs. It also features reinforced insulation and meets RoHS compliance and IEC 61810 standards for quality assurance.
Typical applications include industrial oven controls, cooking plate controls, and other equipment requiring reliable high temperature power switching. The reinforced insulation and robust build ensure long-term durability and safety in harsh environments.
Choose TE Connectivity RTH14012 for dependable, high-temperature PCB power relay solutions in industrial, commercial, and HVAC applications. Designed for high temperature operation up to 105°C ambient. Features a sensitive 500mW coil power and 360Ω coil resistance.
Silver nickel alloy contacts ensure durability and performance. PCB mount type with solder terminal and 5mm pinning for easy installation. Supports switching AC voltage up to 400V AC and switching power of 4kVA. Compact size with dimensions 29mm length, 15.7mm height, and 12.7mm width.
Reinforced insulation and flux tight orange enclosure for reliability under demanding conditions. Applications include oven control and cooking plate control in industrial and commercial environments. Explore more Power Relays and industrial components at EnvMart for your automation and electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 16A.
This relay operates with a coil voltage of 12V DC.
The relay measures 29mm in length, 15.7mm in height, and 12.7mm in width.
It supports PCB mounting with solder terminal and 5mm pinning for installation.
The maximum operating temperature is 105°C.
The coil power rating is 500mW.
The contacts of this relay are made from silver nickel alloy.
It can switch AC voltage up to 400V AC.
It complies with RoHS and IEC 61810 standards.
The coil resistance is 360Ω.
Typical applications include oven control and cooking plate control in industrial and commercial environments.
The minimum operating temperature is -40°C.
