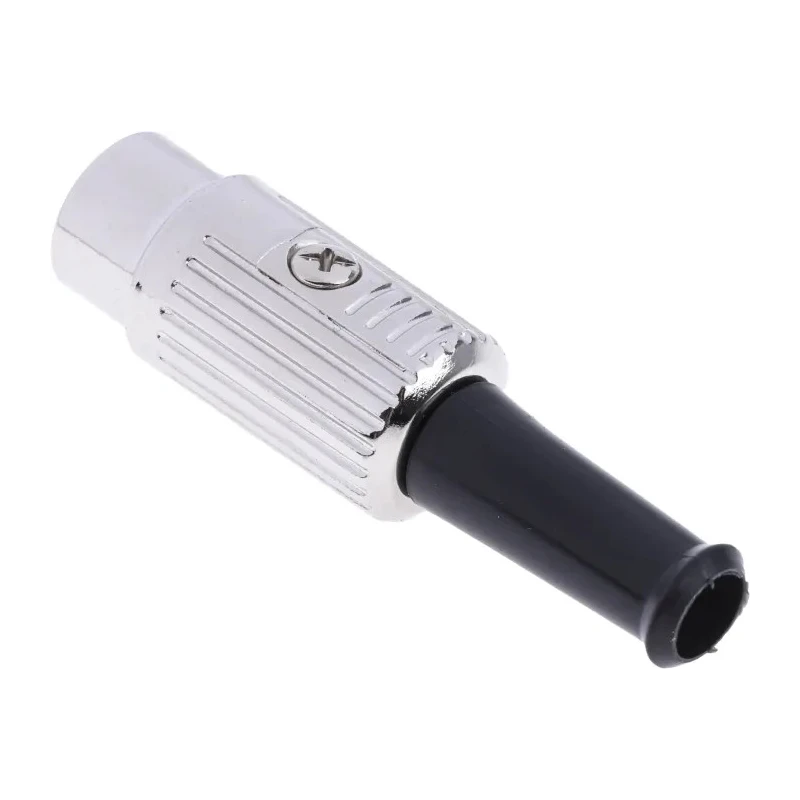

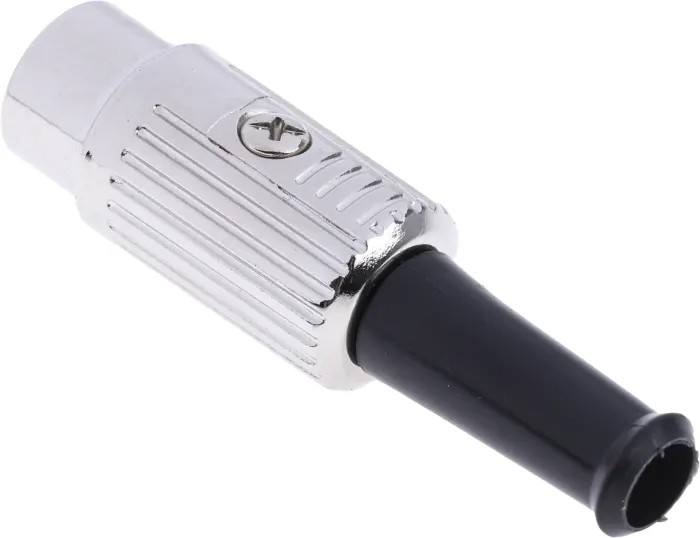

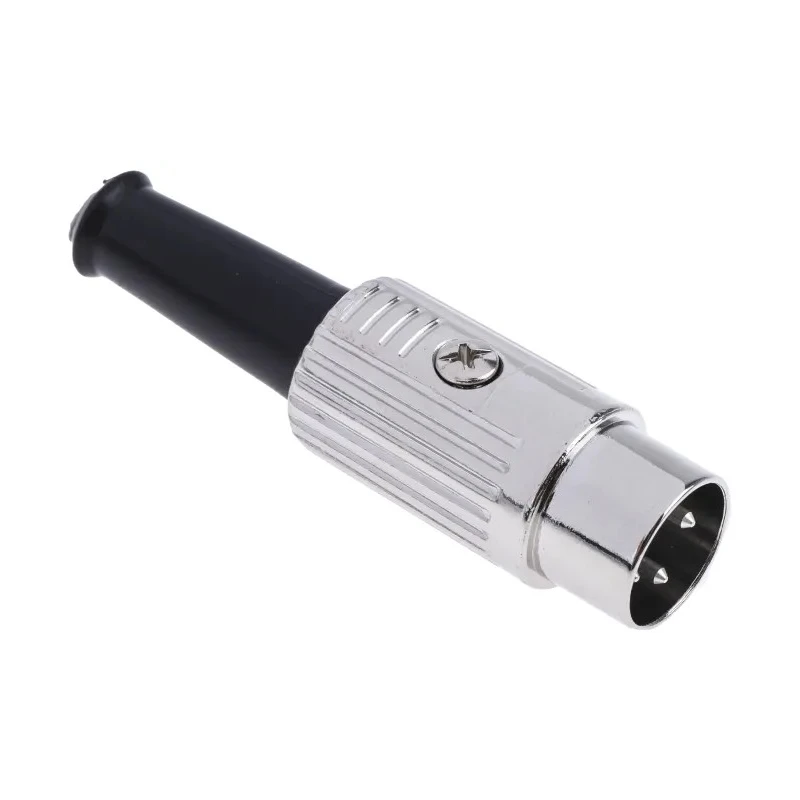

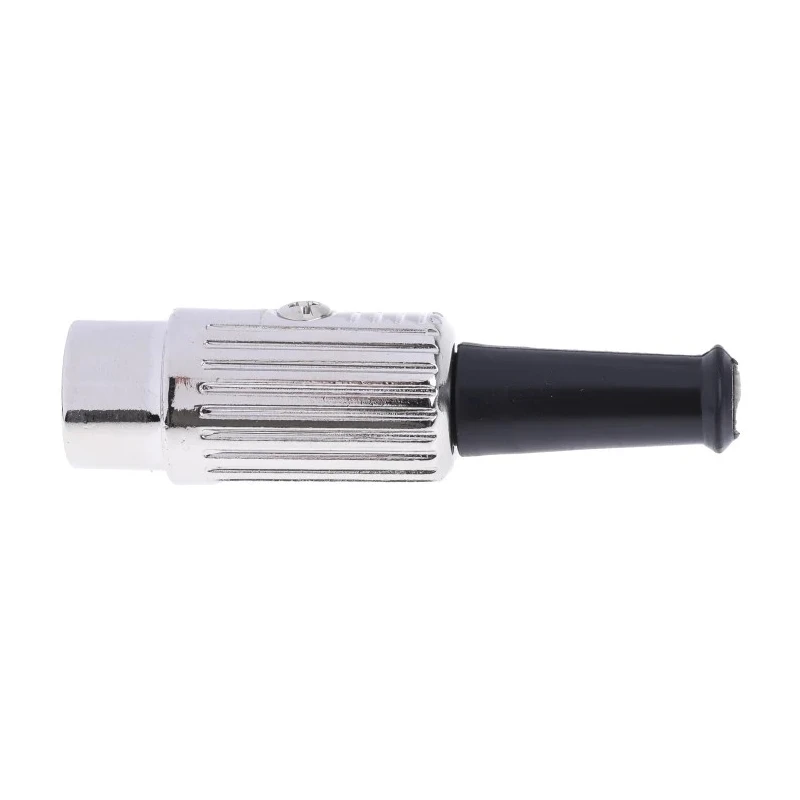

RS PRO 6 Pole Straight Standard DIN Plug 1A 100V AC Push Lock Cable Male 491-162

RS PRO 491-162 6 Pole Straight Standard DIN Plug is engineered for dependable electrical connectivity in demanding industrial and electronic applications. With a current rating of 1A and operating voltage of 100V AC, this cable-mounted male DIN connector features a push lock mating mechanism for secure and reliable engagement. The housing is made of robust ABS material and the contacts comprise brass with silver plating, providing excellent durability and corrosion resistance.

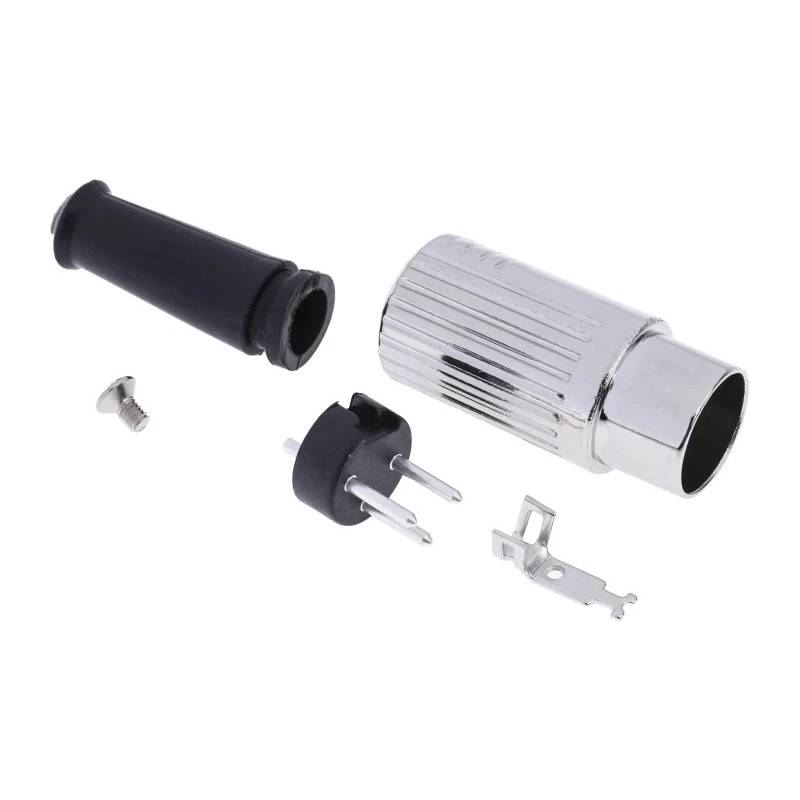

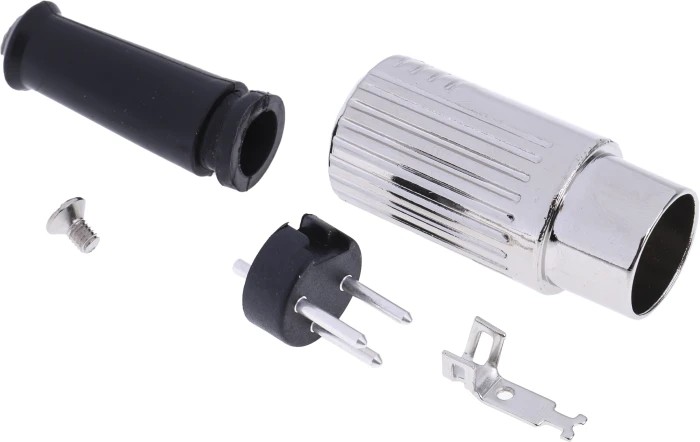

This shielded connector incorporates a zinc alloy nickel-plated shield cover along with a steel leaf spring and nickel-plated hook button that ensure mechanical stability and protection against electromagnetic interference. It is suitable for environments operating between -20°C and 85°C, providing versatility for various climate conditions. The screw termination and standard connector size facilitate easy installation and compatibility with other standardized DIN components.

Key electrical specifications include a contact resistance of 30 mΩ max on pins and 50 mΩ on the shell, insulation resistance of 100 MΩ at 500V DC, and voltage withstand capability of 250V AC for 1 minute, ensuring safety and performance.

The RS PRO DIN connectors series offers latching types designed to prevent accidental disengagement through a depress-to-release method, maintaining secure connections in industrial, laboratory, HVAC, manufacturing, and power connector applications. This 6 pole variant meets industry standards without formal certifications but is trusted for its quality and build sourced from Taiwan, Province Of China.

Constructed with durable ABS housing and brass silver-plated contacts for longevity. Shielded design with zinc alloy nickel plated cover ensures superior interference protection. Rated for maximum operating temperature of 85°C and minimum of -20°C for versatile usage.

Features a push lock mating type with screw termination for secure and easy assembly. Designed for cable mounting with male connector gender and standard connector size. Provides insulation resistance of 100 MΩ at 500V DC and voltage withstand of 250V AC for 1 minute.

Contact resistance pins maximum 30 mΩ and shell maximum 50 mΩ increasing conductivity efficiency. Ideal for industrial, electronic components, and power connector applications requiring secure DIN connections.

This product is an essential component for professionals seeking reliable DIN cable plugs with secure locking mechanisms. RS PRO products are widely used in electronics and electrical industries, delivering dependable performance in varied industrial environments. Explore additional RS PRO connectors and related products to fulfill diverse connectivity needs.
