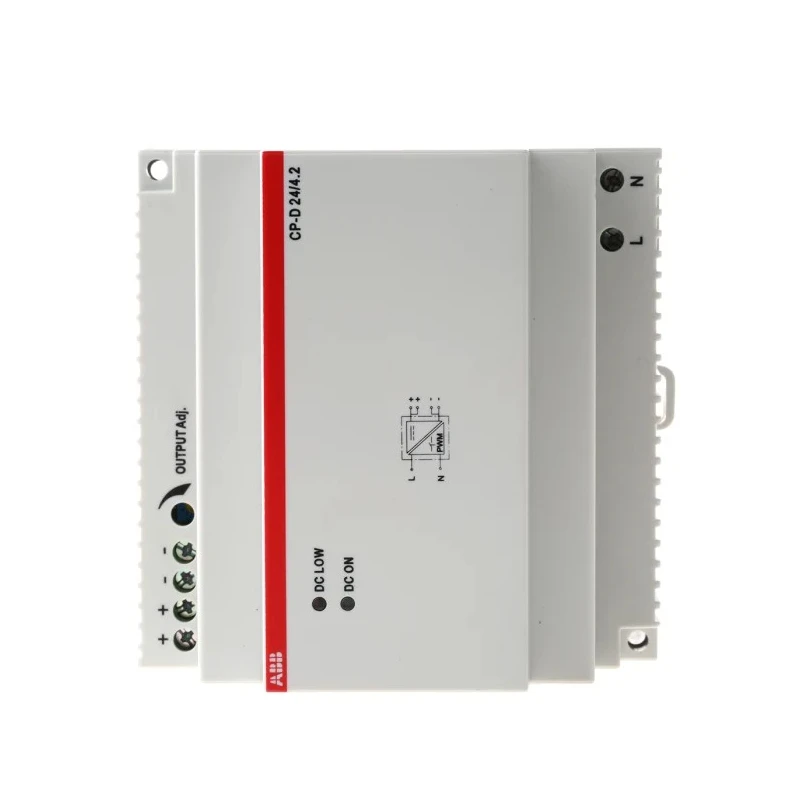

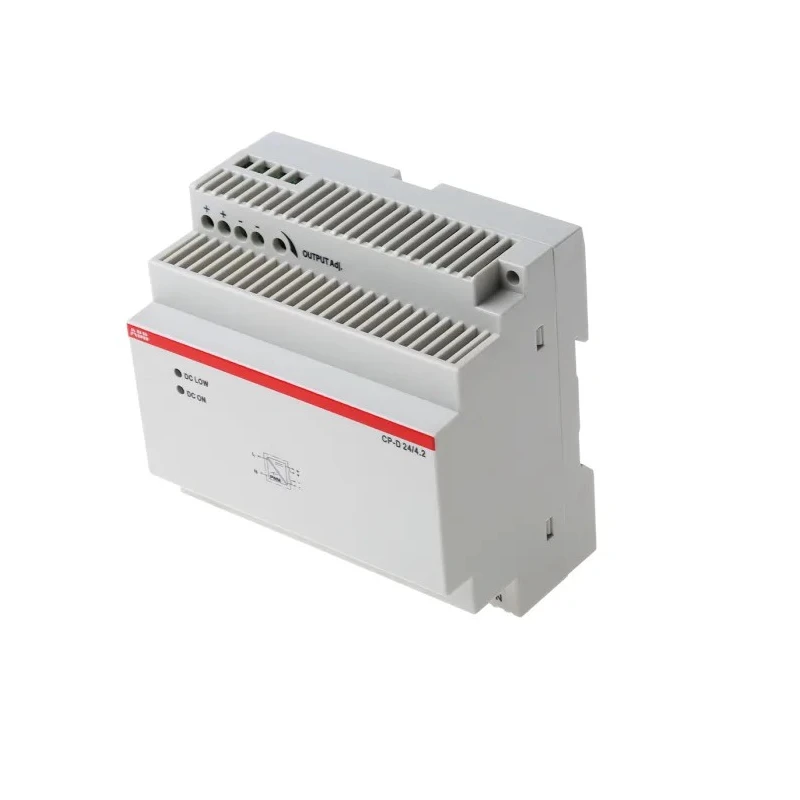

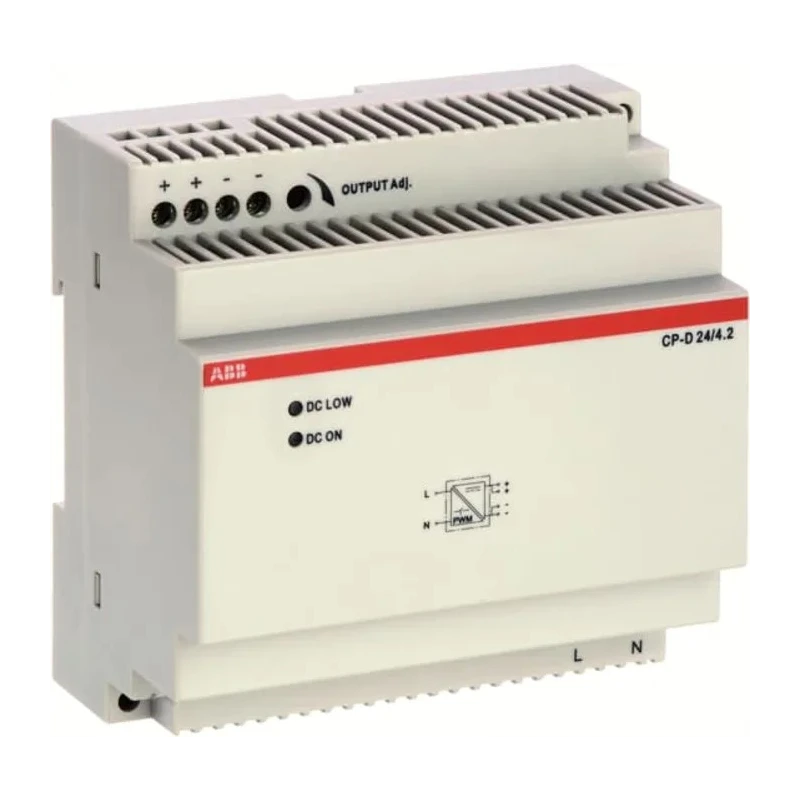

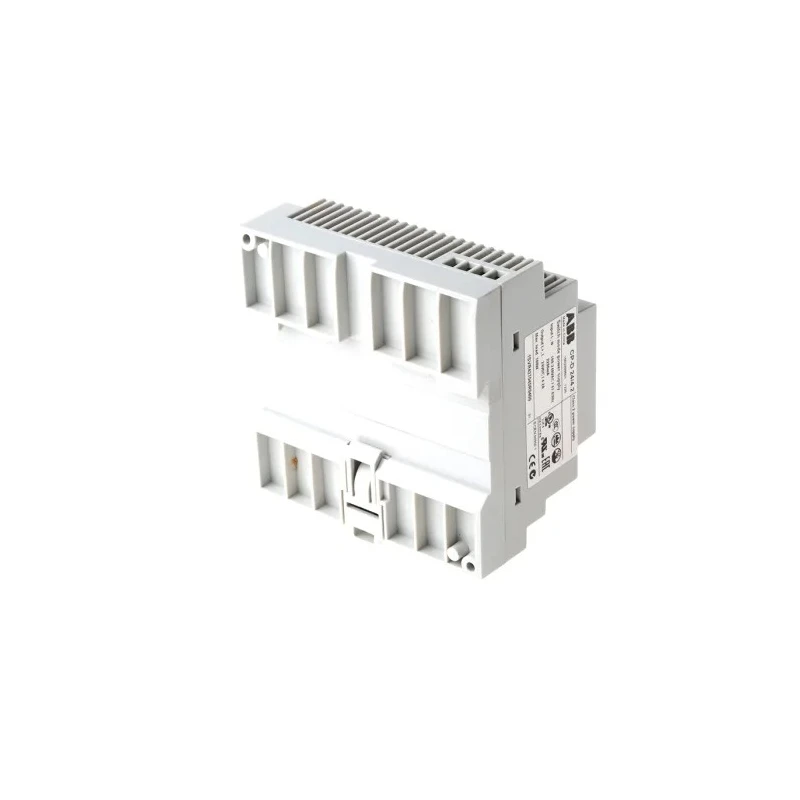

ABB CP-D Switched Mode DIN Rail Power Supply 240V AC/DC Input 24V DC 4.2A Output 100W 1SVR427045R0400 - CP-D 24/4.2

Free Delivery in India | Lowest Global Shipping Charges

ABB CP-D Switched Mode DIN Rail Power Supply 240V AC/DC Input 24V DC 4.2A Output 100W 1SVR427045R0400 - CP-D 24/4.2



Category DIN Rail Power Supplies Brand ABB Condition New

Specifications

Country of Origin	Taiwan
Brand	ABB
Power	100W
Efficiency	89%
Height	91mm
Model	1SVR427045R0400 - CP-D 24/4.2
Depth	57.5mm
IP Rating	IP20
Width	89.9mm
Series	CP-D
Output Current	4.2A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	240V ac
Electrical Phase	1
Maximum Output Voltage	24V dc
Minimum Input Voltage	100V ac

Key Features

Switched mode power supply compatible with AC/DC input voltages.
Input voltage range from 100V AC up to 240V AC and 120V DC to 375V DC.
High efficiency of 89% reduces energy loss as heat.
Operating temperature range from -25°C to 70°C ensures performance in harsh environments.
IP20 rating protects against solid objects and limited ingress protection.
Continuous short-circuit protection and integrated 3.15A fuse on input enhances safety.
Compact dimensions of approximately 89.9mm width, 91mm height, and 57.5mm depth enable easy DIN rail mounting.
Suitable for HVAC systems, distribution cabinets, and home security power applications.

Product Description

ABB 1SVR427045R0400 - CP-D 24/4.2 is a switched mode DIN rail power supply designed for stable and efficient power delivery. It supports wide AC/DC input voltages from 100V AC to 240V AC and 120V DC to 375V DC, providing a regulated 24V DC output with a continuous current of 4.2A and a power capacity of 100W. This power supply ensures reliable operation for industrial, commercial, and HVAC systems requiring consistent DC power.

Featuring a high conversion efficiency of 89%, it minimizes energy loss as heat, allowing for fanless convection cooling. The unit includes built-in continuous short-circuit protection and a 3.15A fuse on the input side, enhancing safety and protection for connected devices against overcurrent and voltage spikes.

Designed for challenging conditions, this unit operates reliably between -25°C and +70°C ambient temperatures with an IP20 rating for protection against touch and solid objects. Its compact dimensions (89.9mm x 91mm x 57.5mm) allow for convenient installation within distribution cabinets or electrical panels with standard DIN rails.

The CP-D series power supplies are suitable for applications such as HVAC control systems, home security installations, industrial machinery requiring DC input, and distribution panels. Additional features include adjustable output voltage to compensate voltage drops and an integrated redundancy unit option for critical systems requiring continuous uptime.

Switched mode power supply with wide AC/DC input voltage range. High efficiency of 89%, supporting fanless convection cooling. Integrated continuous short-circuit and overload protection. Operating temperature range of -25°C to 70°C suitable for harsh environments.

Compact DIN rail mountable design with IP20 ingress protection. Application areas include HVAC systems, security, and distribution cabinets. Redundancy unit available for critical power supply continuity.

Choose ABB CP-D 1SVR427045R0400 to ensure efficient, safe, and stable power delivery for your industrial and commercial DC power needs. Browse the full range of DIN Rail Power Supplies to find solutions tailored to your specific electrical system requirements.
