SMC Pneumatic Compact Cylinder, 100mm Bore, 50mm Stroke, Aluminium Alloy Body, Double Acting CDQ2 Series CDQ2B100TF-50DZ

Free Delivery in India | Lowest Global Shipping Charges

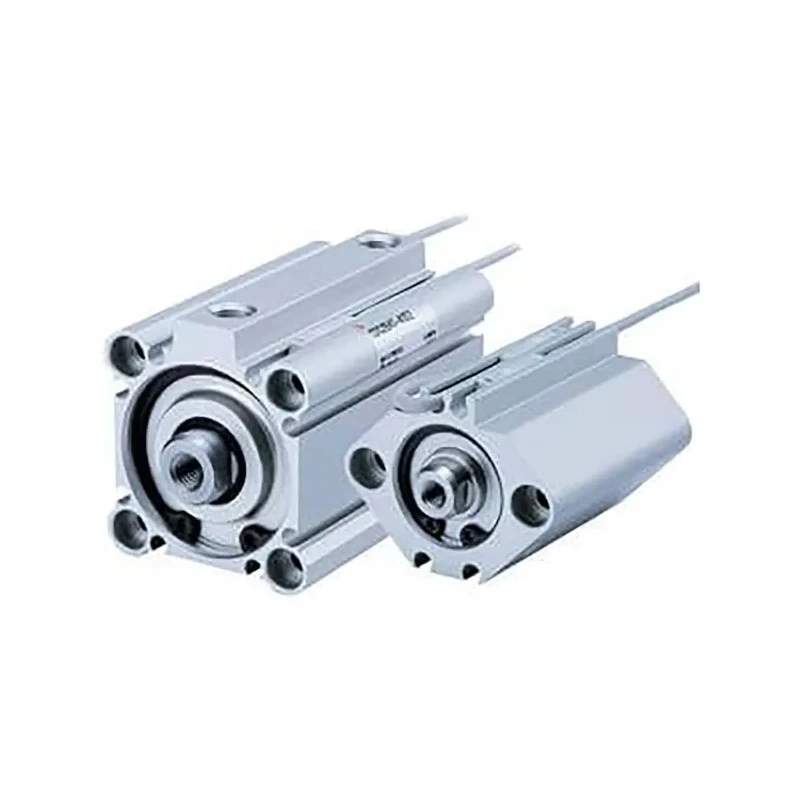

SMC Pneumatic Compact Cylinder, 100mm Bore, 50mm Stroke, Aluminium Alloy Body, Double Acting CDQ2 Series CDQ2B100TF-50DZ



Category Pneumatic Piston Rod Cylinders Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1 Mpa
Height	117mm
Length	123.5mm
Model	CDQ2B100TF-50DZ
Gross Weight	2.6kg
Width	125mm
Mount Type	Through Hole
Series	CDQ2
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Stroke Length	50mm
Bore Diameter	100mm
Rod Type	Single
Action Type	Double Acting
Piston Rod Gender	Male
Piston Rod Thread Standard	Metric
Piston Rod Thread Size	3/8 in G
Standard stroke range (mm)	5 to 100 mm
Port threads	M (12 to 25 bore), Rc, NPT or G (32 to 100 bore)

Key Features

Double acting compact cylinder for precise pneumatic motion control.
100mm bore diameter suitable for medium force applications.
50mm standard stroke length for versatile use.
Constructed with lightweight aluminium alloy body for durability.
Single male piston rod with 3/8 inch G metric threading.
Through hole mount type enables flexible installation options.
Operates reliably within a temperature range of -10°C to 60°C.
Maximum operating pressure up to 1 MPa for robust performance.

Product Description

SMC branded pneumatic compact cylinder model CDQ2B100TF-50DZ belongs to the CDQ2 series, offering a robust double acting operation with a 100mm bore diameter and 50mm stroke length. This compact cylinder features an aluminium alloy body ensuring strength and corrosion resistance, ideal for demanding pneumatic applications.

The cylinder operates with a single male piston rod and metric thread size of 3/8 inch G, mounted through hole for installation versatility. It supports a maximum operating pressure of 1 MPa and a piston speed up to 500 mm/s, suitable for a diverse range of industrial automation tasks.

Designed to perform reliably within a temperature range from -10 degrees Celsius to 60 degrees Celsius, this compact cylinder withstands typical industrial environments. Its dimensions (length 123.5 mm, height 117 mm, width 125 mm) create a compact form factor without compromising performance, weighing 2.6 kg.

The CDQ2B100TF-50DZ cylinder can be equipped with small auto switches mounted on four surfaces for enhanced position sensing and control. The series supports bore sizes from 12 mm to 100 mm with standard stroke ranges from 5 mm to 100 mm and accommodates multiple port thread options (M, Rc, NPT, or G) depending on bore size, allowing for flexible pneumatic circuit integration.

This product suits industrial automation, manufacturing equipment, material handling, HVAC controls, and other pneumatic-driven systems requiring compact, reliable cylinder actuation. Its aluminium construction and double acting mechanism facilitate efficient control of linear movements with durability and repeatability.

Double acting compact cylinder for precise pneumatic motion control. 100mm bore diameter suitable for medium force applications. 50mm standard stroke length for versatile use. Constructed with lightweight aluminium alloy body for durability.

Single male piston rod with 3/8 inch G metric threading. Through hole mount type enables flexible installation options. Operates reliably within a temperature range of -10°C to 60°C. Maximum operating pressure up to 1 MPa for robust performance.

Compact dimensions: length 123.5mm, height 117mm, width 125mm. Weight approximately 2.6 kg providing stability without excess mass. Explore EnvMart for a comprehensive selection of pneumatic cylinders and accessories designed for varied industrial automation and fluid power solutions.

Explore more products in our Pneumatic Piston Rod Cylinders category.
