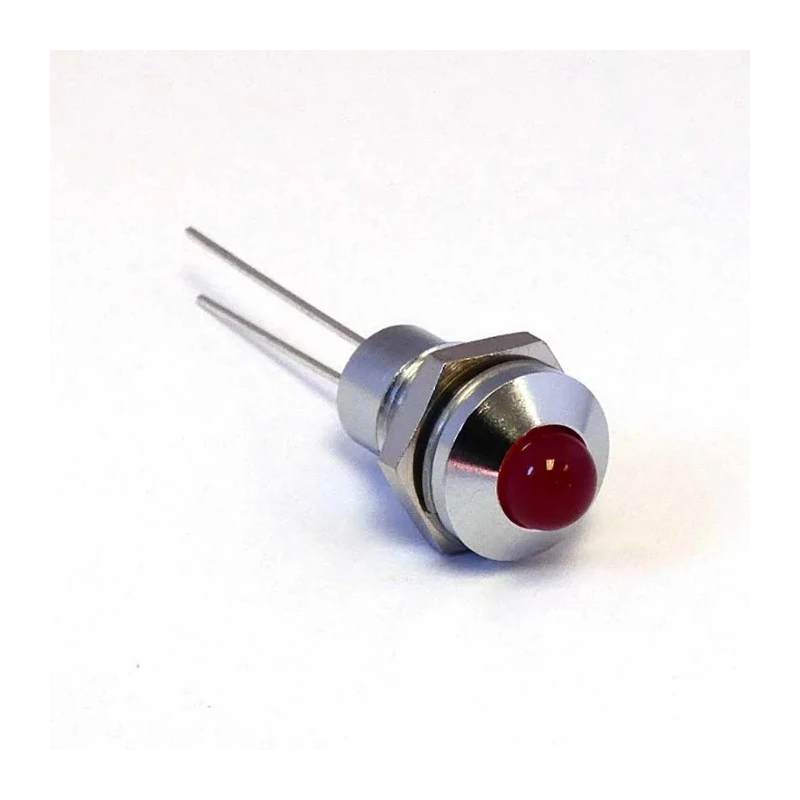

CML Innovative Technologies Red Panel Mount Indicator 2V 10mA IP40 Prominent Bezel 19040003

CML Innovative Technologies 19040003 Panel Mount Indicator is a red LED indicator lamp designed for panel mounting applications requiring a compact and reliable status display. This indicator operates at a nominal voltage of 2 volts and a current of 10 milliamps, making it energy-efficient and suitable for low-power electronic circuits.

The device features a prominent bezel style with a length of 16.5mm, providing high luminous intensity and clear visibility on control panels or instrument displays.

Rated with an IP40 ingress protection, the panel mount indicator is protected against solid objects greater than 1mm but is not waterproof, ideal for indoor electronic component applications.

The mounting hole size is M8 allowing easy installation and secure fixing within control or instrumentation panels.

The plastic polycarbonate body offers durability and limited chemical resistance; note that the indicator is sealed above the panel when the supplied gasket is used, ensuring protection against dust and contaminants.

The indicator's luminous intensity is measured at an ambient temperature of 25 degrees Celsius, and color temperature variations may be observed due to component tolerances. This product is manufactured in the United Kingdom, ensuring compliance with recognized quality standards.

Features a prominent bezel style for clear visibility. Operates at 2 volts with a current of 10 milliamps. IP40 rated for protection against solid particles larger than 1mm. M8 mount hole size for easy panel installation.

Compact length of 16.5mm for space-efficient mounting. Sealed construction when gasket is used for dust protection. Polycarbonate material providing durability with limited chemical resistance. Luminous intensity tested at 25°C ambient temperature.

UK origin reflecting high manufacturing standards.

This panel mount indicator is ideal for applications in industrial equipment, laboratory instruments, electrical control panels, and instrumentation systems where clear and reliable visual signalling is required.
