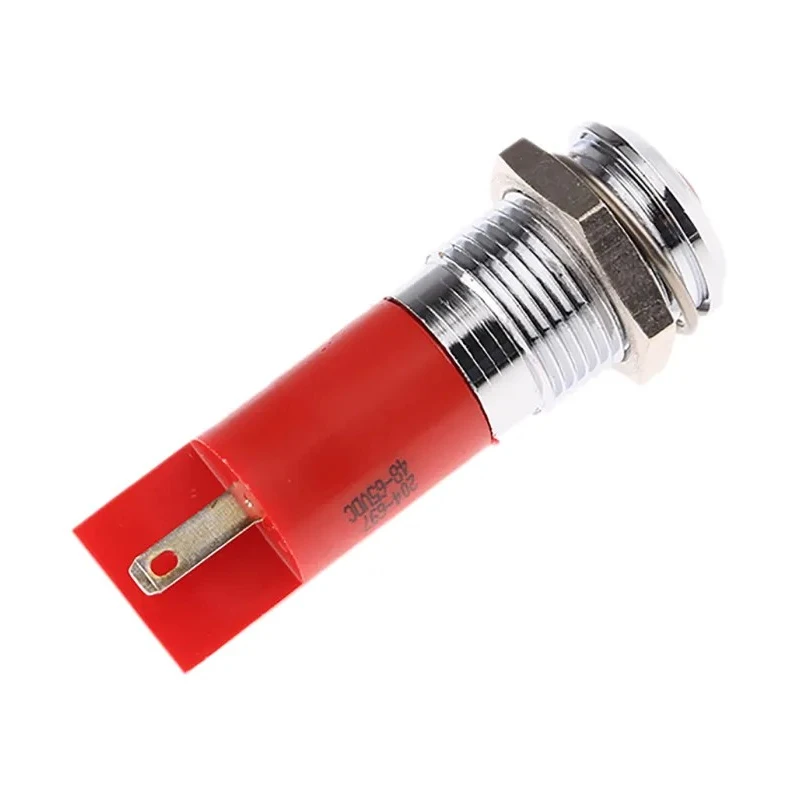

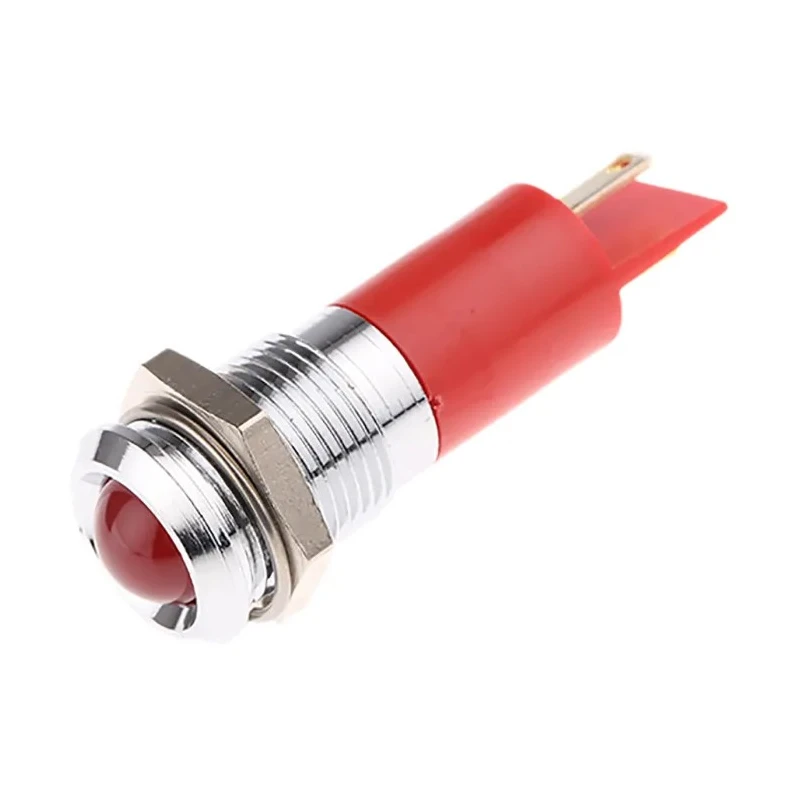

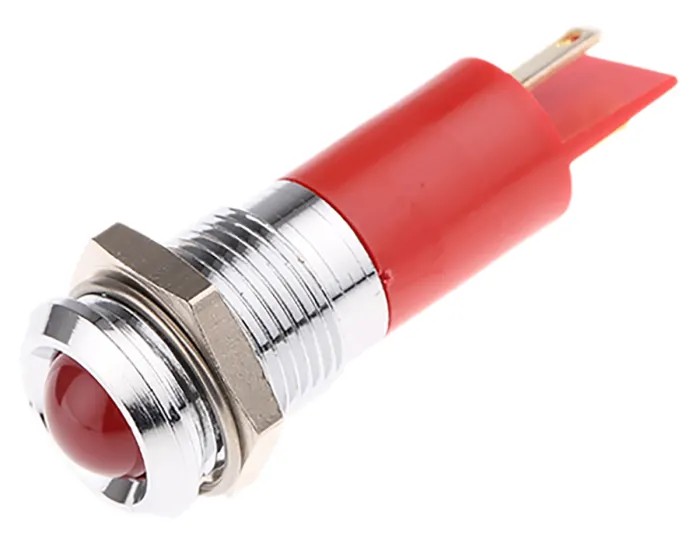

RS PRO Red Panel Mount Indicator 48V dc 65V dc 16mA Prominent Bezel 14mm Mount Hole 204-697

RS PRO 204-697 Red Panel Mount Indicator is a high-quality LED indicator designed for various industrial and commercial electronic applications. It operates within a voltage range of 48V dc to 65V dc and consumes 16mA current, making it efficient and reliable for panel indication purposes.

The indicator features a 10 mm coloured diffused epoxy style lens paired with a 16 mm chrome bezel for a prominent and visible display. The bezel is silver in colour and the overall length of the unit is 47 mm, with a mounting hole size of 14 mm to fit standard panel configurations.

This LED indicator comes with a solder tab termination, allowing for fast and secure installation. It is supplied with a fixing nut and spring washer to ensure mounting stability.

The product is available in four distinct LED colours: red, yellow, orange, and green, including tri-colour options that combine two different LED colours to produce mixed light outputs, increasing versatility for signalling applications.

LED technology provides multiple benefits such as reduced heat emission compared to incandescent or neon lamps, focused directional light output reducing the need for additional reflectors, and significantly longer lifespan paired with low power consumption.

This indicator is ideal for use in industrial, laboratory, control panels, and manufacturing equipment where clear visual signalling is required to indicate status or warnings. The indicator features a prominent bezel style with a silver bezel color.

The LED is red with a 14 mm mount hole size and a length of 47 mm. High-quality epoxy style lens ensures durability and excellent light diffusion. Includes fixing nut and spring washer for secure mounting. Suitable for applications requiring clear and bright signal indication.

Available in multiple colours including red, yellow, orange, and green. Tri-colour options provide mixed light outputs for versatile signalling. Designed for easy and quick installation with solder tab termination. Long lifespan and low power consumption due to LED technology.

Manufactured in the United Kingdom ensuring quality and standards compliance.

This RS PRO panel mount LED indicator combines quality construction with versatility and performance, making it a dependable choice for your electronic component needs. Explore the RS PRO range for more Panel Mount Indicators and electronic components at EnvMart.
