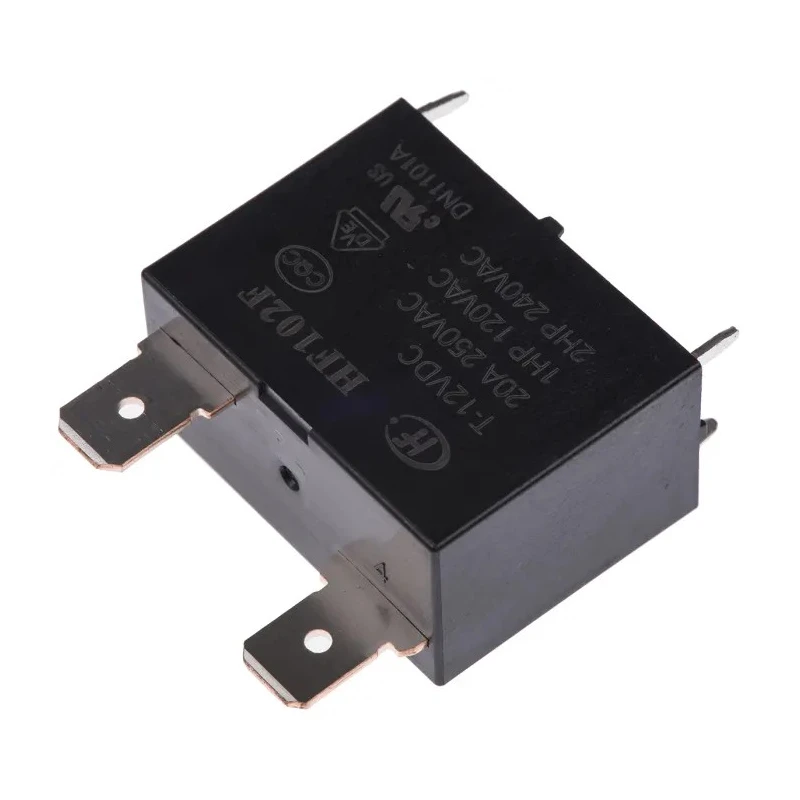

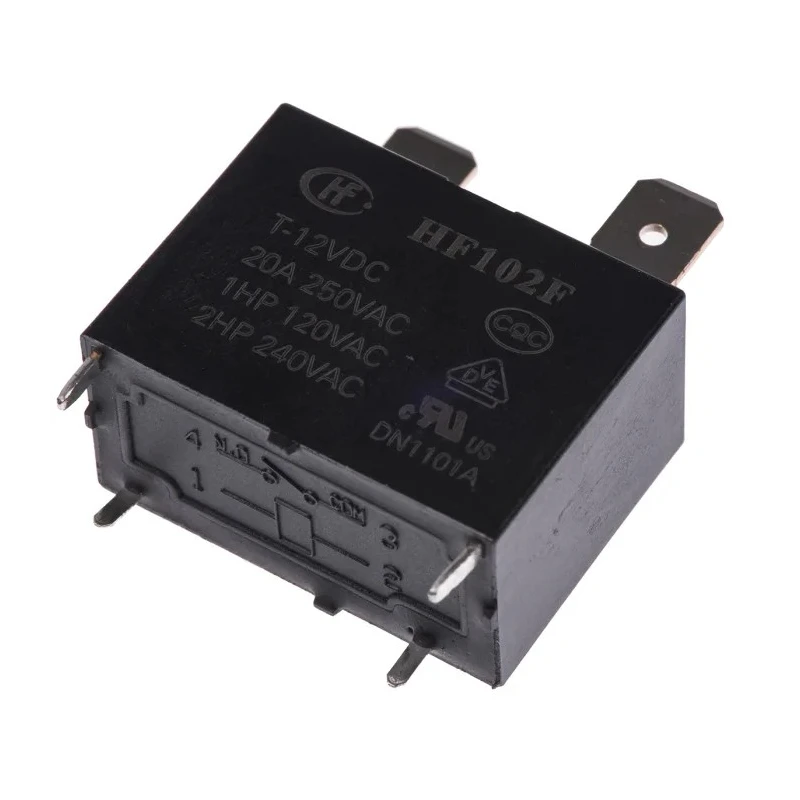

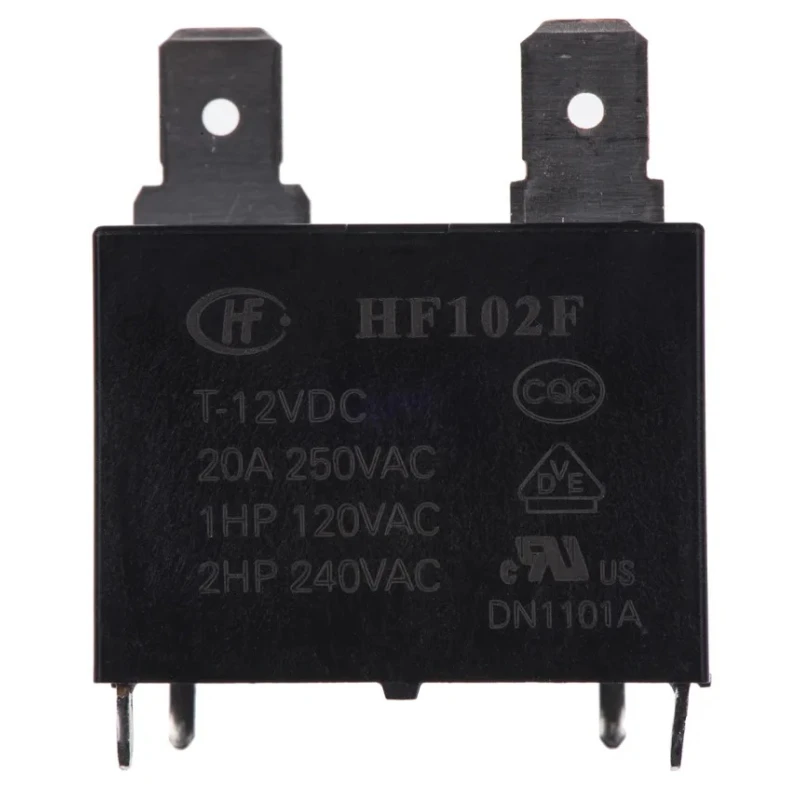

RS PRO PCB Power Relay 12V DC Coil 25A Switching Current SPST 476-561

RS PRO 476-561 PCB Power Relay features a 12V DC coil and a single-pole single-throw (SPST) contact configuration, suitable for reliable high-power switching tasks. This relay is designed primarily for PCB mounting with solder terminals, ensuring stable connections in compact electronic and electrical assemblies.

The coil voltage of 12V DC is supported by a coil resistance of 160Ω and a coil power rating of 900mW, providing efficient electromagnetic operation. The relay can handle a switching current of up to 25A and an AC voltage of 250V, delivering a switching power capacity of 6.25kVA. It is built with silver alloy contacts which enhance conduction efficiency and durability under heavy electrical loads.

Operating temperature ranges from -25°C to 85°C allow this relay to function effectively in diverse industrial environments, including automation, electrical machinery, and control systems. It offers high dielectric strength up to 4.5kV between coil and contacts, providing robust electrical insulation and safety margins for sensitive circuit designs.

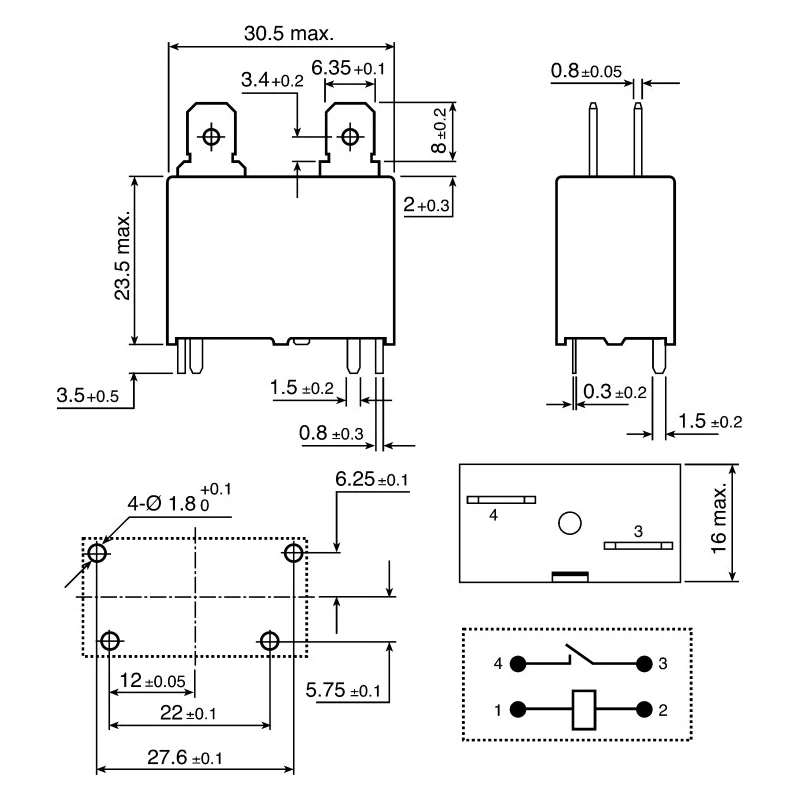

This product is RoHS compliant, ensuring it meets mandatory environmental and safety regulations. The relay's compact design with precise dimensions (30.5mm x 16mm x 33.5mm) accommodates space-constrained PCB layouts.

RS PRO PCB Power Relay 476-561 is ideal for use in industrial automation, manufacturing equipment, HVAC systems, and machinery control panels requiring reliable power switching solutions. Its heavy-duty construction supports heavy load operations up to 5000VA, making it well-suited for motor switching and other demanding applications.

Designed for PCB mounting with solder terminal type. Operates at coil voltage of 12V DC with coil resistance of 160Ω. Capable of switching AC voltage up to 250V and switching power of 6.25kVA. Operates reliably within temperature range of -25°C to 85°C.

Constructed with silver alloy contact material for durability and conductivity. Compact dimensions: 30.5mm length, 16mm width, and 33.5mm height. Coil power consumption is 900mW, ensuring efficient operation. RoHS compliant, meeting environmental standards.

High dielectric strength of 4.5kV between coil and contacts for electrical insulation. Ideal for high-power switching applications in industrial and automation systems. Explore more specialized relays and power switching products in the Electronics & Electricals category at EnvMart to find components that meet your project's precise requirements.
