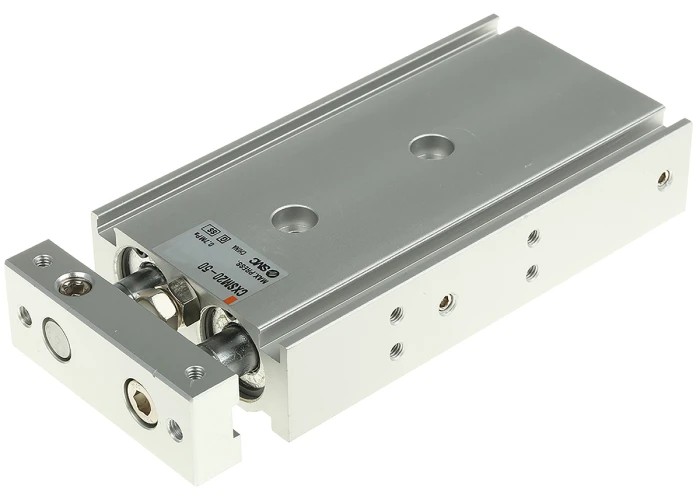

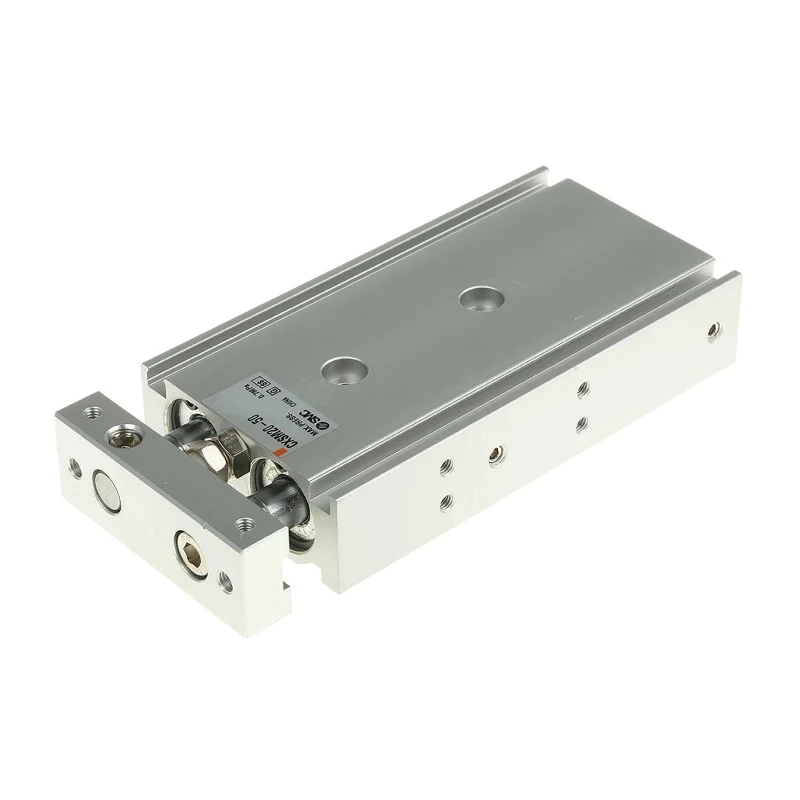

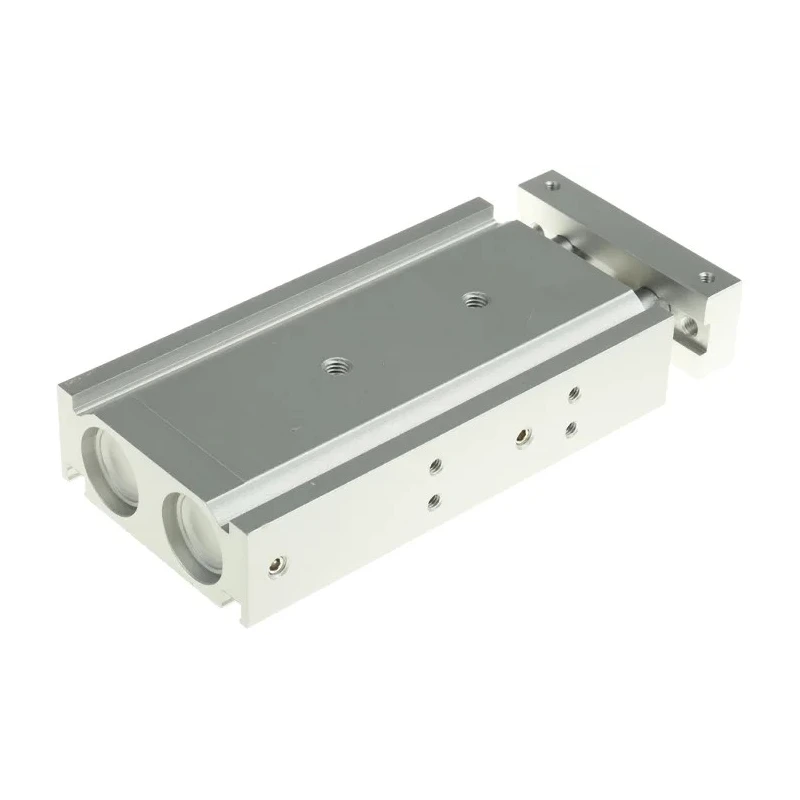

SMC Pneumatic Guided Cylinder 20mm Bore Dual Rod Push-In Acting 50 mm Stroke CXSM20-50

SMC CXSM20-50 Pneumatic Guided Cylinder offers precision and robust performance with a 20mm bore size and a 50mm stroke length, suitable for push-in acting pneumatic applications.

This dual-rod guided cylinder incorporates ball bearing and slide bearing guides, providing excellent non-rotational accuracy ideal for pick-and-place automation tasks in industrial settings.

It functions efficiently at a maximum operating pressure of 0.7 Mpa with rubber cushioning to ensure smooth, stable piston movement and durability. The piston speed can reach up to 300mm/s, catering to high-speed operation requirements.

The cylinder is engineered to operate reliably within a temperature range from -10°C to 60°C, making it adaptable to various manufacturing, automation, and pneumatic system environments.

Compact in size, it measures 144mm in length, 64mm in height, and 25mm in width, weighing approximately 550g, which facilitates easy integration into equipment.

The product meets rigorous JISC0920 and IEC IP67 standards, guaranteeing protection against dust and water ingress, enhancing longevity and performance stability under tough industrial conditions.

The dual rods provide enhanced stability and minimize rotation, ideal for precise linear motion tasks. The design includes a recess for auto switches and allows for integral stroke adjustment up to 5mm less than the standard stroke length.

Constructed for use with clean, filtered, and non-lubricated compressed air, it ensures consistent operation while minimizing maintenance.

This guided cylinder is well-suited for industries including manufacturing, automation, pneumatic tooling, and material handling systems requiring precise and efficient pneumatic actuation.

Operates at a maximum pressure of 0.7 Mpa with rubber cushioning for smooth operation. Equipped with ball bearing and slide bearing guides for enhanced accuracy and durability. Supports piston speeds up to 300mm/s suitable for rapid cycling.

Designed for operating temperatures from -10°C to 60°C across industrial environments. Compact dimensions with 144mm length, 64mm height, and 25mm width for versatile integration. Includes dual rod type for superior non-rotational accuracy in pick-and-place tasks.

Built to JISC0920 and IEC spec IP67 standards ensuring environmental protection. Lightweight design weighing approximately 550 grams for ease of installation. Constructed for use with clean, filtered, non-lubricated compressed air for reliability.
