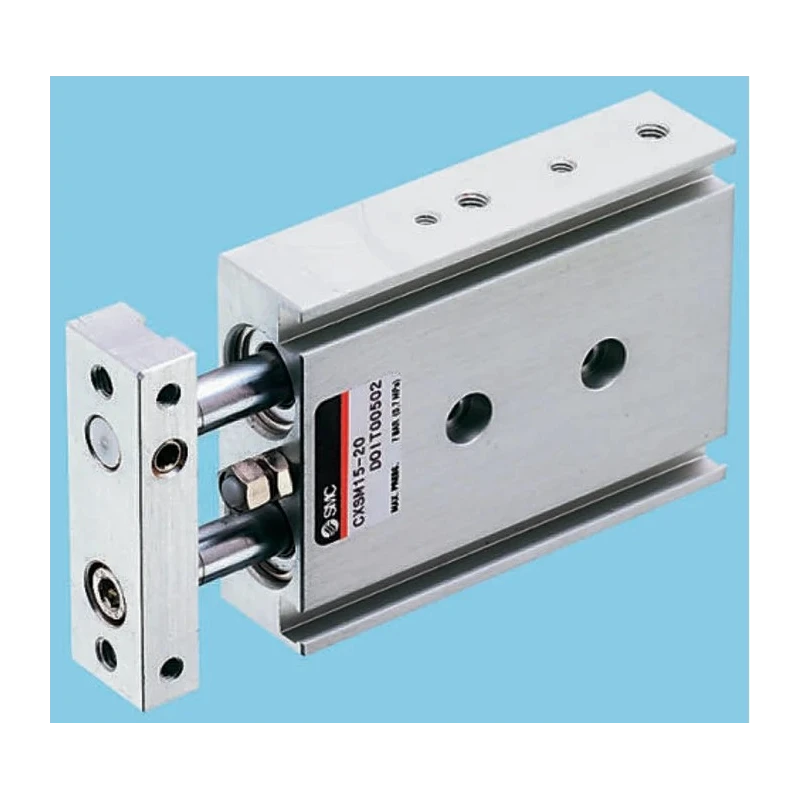

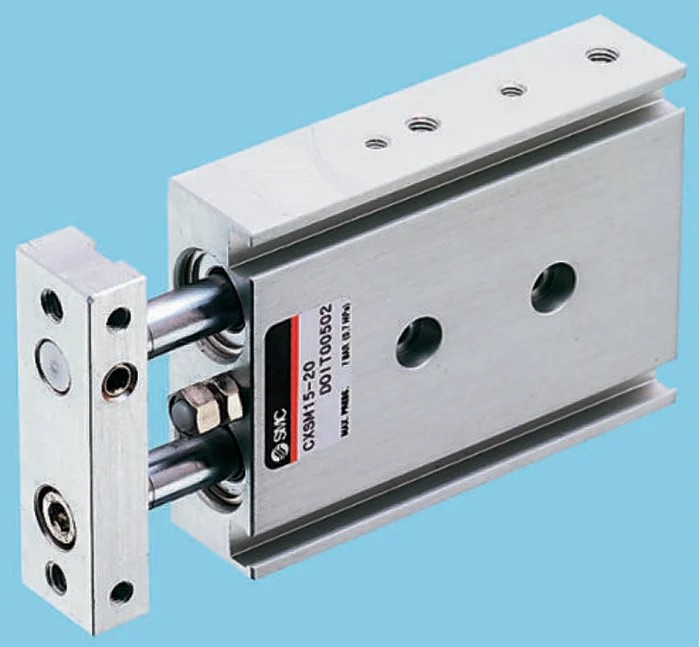

SMC Pneumatic Guided Cylinder CXSM Series Dual Rod Slide & Ball Bearing Guide 0.7 Mpa 30mm Stroke CXSM20-30
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Maximum Operating Pressure | 0.7 Mpa |
| Model | CXSM20-30 |
| Gross Weight | 480g |
| Series | CXSM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 30mm |
| Rod Type | Dual Rod |
| Standards/Approvals | JIS C0920, IEC spec IP67 |
| Cushioning Type | Rubber |
| Guide Type | Slide Bearing, Ball Bearing |
| SMC Pneumatic Guided Cylinder - 25mm Bore, 20mm Stroke, CXSM SeriesBrand | SMC |
Key Features
- Compact dual rod cylinder with high non-rotational accuracy suitable for pick-and-place applications.
- Operates with non-lubricated, filtered compressed air for reliable pneumatic actuation.
- Standard stroke length of 30mm with integral stroke adjustment up to 5mm reduction.
- Designed for tough environments with operating temperature range from -10°C to 60°C.
- Equipped with a recess for auto switches and magnetic sensing for precise control.
- Incorporates rubber cushioning for smooth operation and extended component life.
- Slide and ball bearing guides enhance durability and load capacity.
- Complies with standards JIS C0920 and IEC spec IP67 ensuring high quality and protection.
Product Description
SMC CXSM20-30 Pneumatic Guided Cylinder is a dual rod type actuator featuring slide and ball bearing guide types designed for accurate and stable pneumatic positioning. This model provides a maximum operating pressure of 0.7 Mpa and a stroke length of 30mm, making it ideal for precise pick-and-place industrial automation applications.
The cylinder operates with non-lubricated, filtered compressed air, requiring minimal maintenance. Its robust design includes rubber cushioning to reduce impact at stroke ends, contributing to longer service life. The cylinder also integrates a recess for mounting auto switches with magnetic sensing, enabling efficient position detection and control.
Operating reliably within a temperature range of -10°C to 60°C, the CXSM20-30 is suitable for diverse industrial environments. The dual rod design along with slide and ball bearing guides provide excellent stability and high non-rotational accuracy, critical for applications requiring precise motion control.
Certified to meet JIS C0920 and IEC spec IP67, this Pneumatic Guided Cylinder adheres to strict quality and environmental protection standards, ensuring high durability and performance in harsh industrial settings.
This component is extensively used in mechanical, fluid power, and automation systems across manufacturing, laboratory, HVAC, and other industrial sectors. Compact dual rod cylinder with high non-rotational accuracy suitable for pick-and-place applications.
Operates with non-lubricated, filtered compressed air for reliable pneumatic actuation. Standard stroke length of 30mm with integral stroke adjustment up to 5mm reduction. Designed for tough environments with operating temperature range from -10°C to 60°C.
Equipped with a recess for auto switches and magnetic sensing for precise control. Incorporates rubber cushioning for smooth operation and extended component life. Slide and ball bearing guides enhance durability and load capacity.
Complies with standards JIS C0920 and IEC spec IP67 ensuring high quality and protection. Explore a wide variety of pneumatic cylinders and actuators at EnvMart to enhance your automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 0.7 Mpa.
This model has a standard stroke length of 30mm, with the capability for integral stroke adjustment up to a 5mm reduction.
It operates reliably within a temperature range of -10°C to 60°C.
This pneumatic guided cylinder incorporates rubber cushioning to reduce impact at stroke ends, contributing to a longer service life.
The cylinder features slide and ball bearing guides, enhancing its durability and load capacity.
It complies with JIS C0920 and IEC spec IP67, ensuring high quality and protection.
It operates with non-lubricated, filtered compressed air for reliable pneumatic actuation.
The gross weight of this model is 480g.
This model features a dual rod design, which provides excellent stability and high non-rotational accuracy.
Yes, it is equipped with a recess for mounting auto switches with magnetic sensing for precise control.
This pneumatic guided cylinder is ideal for pick-and-place applications in various industrial settings.
The country of origin for this model is India.
