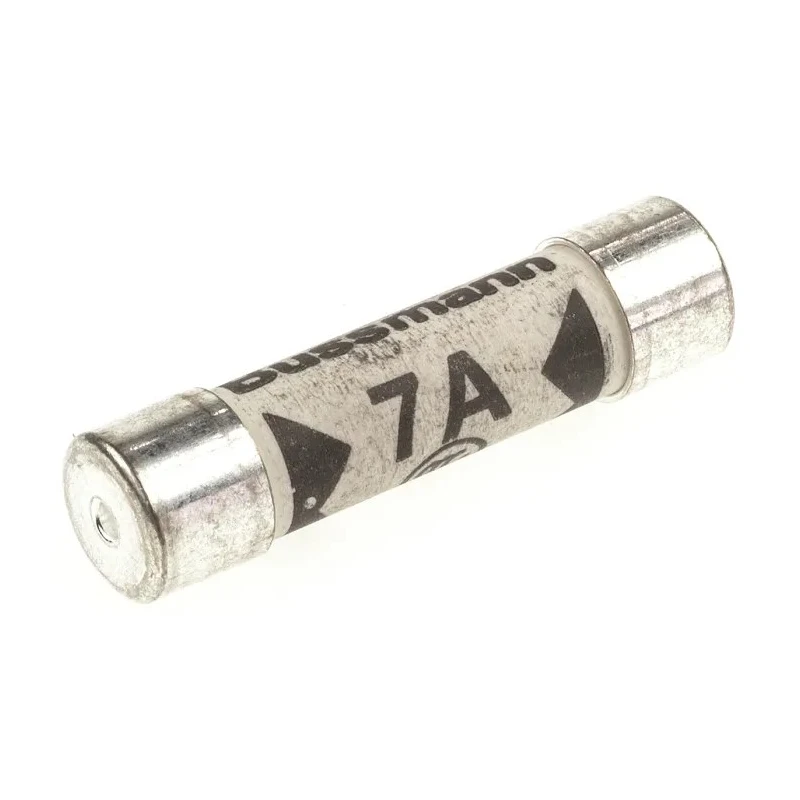

Eaton 7A Fast Acting Ceramic Cartridge Fuse, 6.3 x 25 mm, 240V AC TDC180-7A

Eaton TDC180-7A ceramic cartridge fuse is a 7A fast acting device designed for reliable circuit protection at 240V AC. It quickly interrupts excessive currents to prevent damage to electrical equipment and maintain safe operation. The fuse features a sturdy ceramic body that provides improved heat resistance and mechanical robustness compared to glass fuses.

Its compact cylindrical shape measures 6.3 x 25 mm in size and includes highly conductive nickel-plated brass endcaps to ensure solid electrical connections and reduce nuisance trips. The fuse material is halogen-free, minimizing toxic substance formation in the event of a fire, making it suitable for use in public and commercial areas.

With a maximum breaking capacity of 6kA, this cartridge fuse can safely clear high fault currents commonly encountered in commercial kitchen and retail electrical installations. It consumes only around 1 watt of power, helping maintain energy efficiency in protected circuits.

The TDC180 series fuse offers a service life of at least 1000 operational hours at rated current, delivering reliable long-term protection. It is designed to perform consistently within a temperature range of -5°C to +35°C, making it suitable for various indoor environments.

Common use cases include protection of electrical circuits in commercial kitchens, retail establishments, industrial control panels, and other commercial electrical systems requiring fast and dependable overcurrent protection.

Fast acting fuse design to promptly interrupt overcurrent events. Ceramic construction for superior durability and heat resistance. Compact 6.3 x 25 mm cylindrical form factor for standard fuse holders. Halogen-free materials reduce fire-related toxicity risks.

6kA maximum breaking capacity to handle high fault currents. Low power dissipation of approximately 1 watt promotes energy efficiency. Minimum operating temperature of -5°C and maximum of 35°C. Reliable performance with a minimum 1000 hour service life at rated current.

Ideal for use in commercial kitchens, retail, HVAC, and industrial electrical circuits.

This Eaton ceramic Cartridge Fuse is a trusted electrical protection component across industrial, commercial, and laboratory applications requiring rapid fault interruption to safeguard equipment and personnel. Explore additional Eaton safety and circuit protection products on EnvMart for your electrical system needs.
