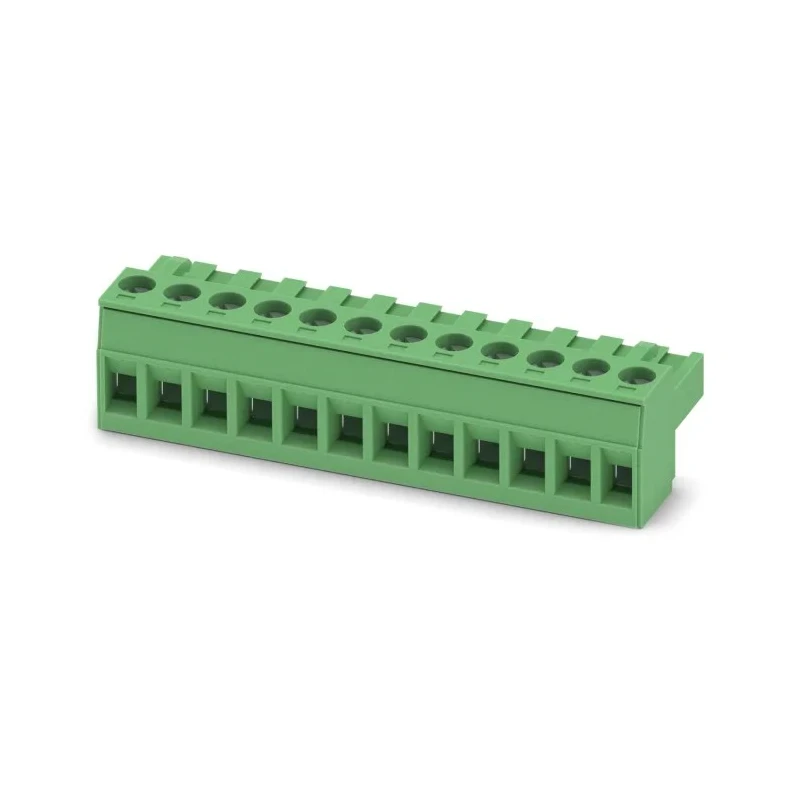

Phoenix Contact MSTBT 2 Series Pluggable Terminal Block, 12-Contact, 5.08 mm Pitch, 1 Row, 10A, 300V, Polyamide 1781085

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact MSTBT 2 Series Pluggable Terminal Block, 12-Contact, 5.08 mm Pitch, 1 Row, 10A, 300V, Polyamide 1781085

Name: Phoenix Contact MSTBT 2 Series Pluggable Terminal Block, 12-Contact, 5.08 mm Pitch, 1 Row, 10A, 300V, Polyamide 1781085
Brand: PHOENIX CONTACT
SKU: 160003
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	300V
Brand	Phoenix Contact
Colour	Green
Orientation	0°
Current	10A
Length	18.2mm
Model	1781085
Depth	15mm
Width	60.96mm
Housing Material	Polyamide
Series	MSTBT 2
Number of Rows	1
Pitch	5.08mm
Standards/Approvals	VDE, CSA, IECEE CB, EAC, cULus
Number of Contacts	12
Connector Gender	Female
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	4mm²
Minimum Wire Size AWG	30AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Screw

Key Features

Constructed with durable polyamide housing ensuring long-lasting performance.
Supports wire sizes ranging from 0.05 mm² to 4 mm² (30 AWG to 12 AWG).
Rated for a current capacity of 10A at 300V voltage for safe and reliable operation.
Features screw-type wire connection method for secure electrical contacts.

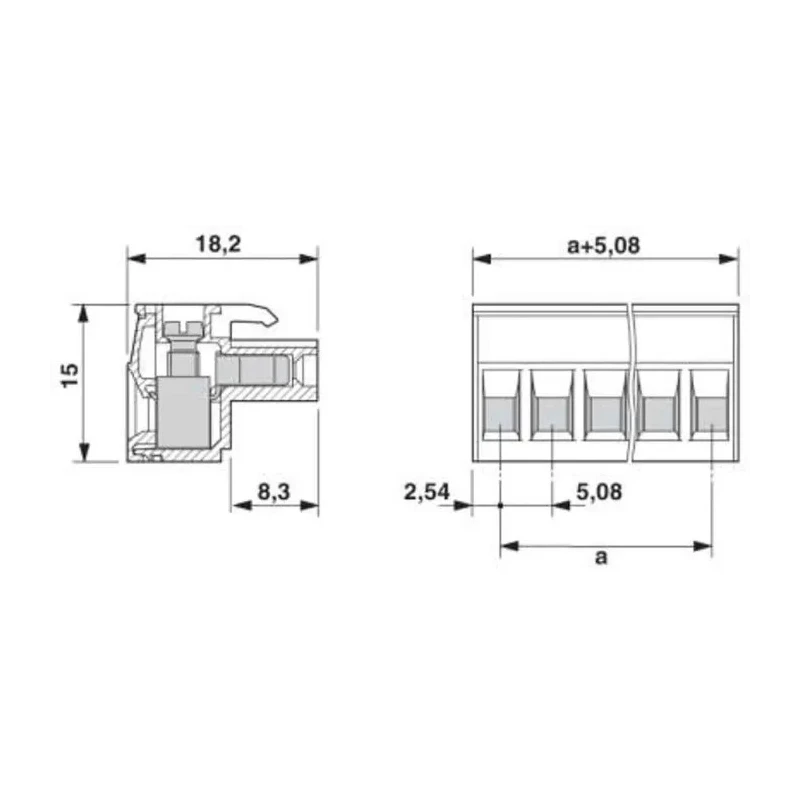

Compact dimensions with 60.96 mm width, 18.2 mm length, and 15 mm depth enable easy integration.
Connector gender is female with orientation at 0° suitable for standard mounting.
Complies with VDE, CSA, IECEE CB, EAC, and cULus standards for quality and safety.
Color coded green housing for easy identification and aesthetics.

Product Description

Phoenix Contact 1781085 MSTBT 2 Series Pluggable Terminal Block is a high-quality connector component designed for use in electronic and electrical applications. Featuring 12 contacts arranged in a single row with a precise 5.08 mm pitch, this pluggable terminal block ensures reliable and efficient wiring connections.

The terminal block is constructed using robust polyamide housing that offers excellent durability and electrical insulation, making it suitable for industrial, laboratory, and commercial setups. It supports wire sizes from 0.05 mm² (30 AWG) up to 4 mm² (12 AWG), accommodating a wide range of wiring requirements.

Rated at 10 amperes and 300 volts, it handles moderate electrical loads safely. The screw-type wire connection method guarantees firm and stable contacts which can withstand vibrations and mechanical stresses. The connector gender is female and the orientation is at 0°, facilitating straightforward installation in standard DIN rail or panel setups.

The compact design, with dimensions of 60.96 mm width, 18.2 mm length, and 15 mm depth, allows flexible placement within control cabinets and enclosures. This series complies with various international standards including VDE, CSA, IECEE CB, EAC, and cULus ensuring compliance and reliability globally.

This pluggable terminal block is ideal for use in industrial automation, control systems, signal distribution, and power supply wiring tasks. The green color aids in visual identification and organized wiring layouts.

Durable polyamide housing for electrical insulation and protection. Accommodates wire sizes from 0.05 mm² to 4 mm². 10A current rating with 300V voltage capability. Screw connection for secure wiring interfaces. Compact size for versatile mounting options.

Certified to multiple international standards for quality assurance. Green color coding for system identification.

Choose Phoenix Contact MSTBT 2 Series for trusted connectivity solutions in electronic and industrial environments. Explore more options and related products in the Pluggable Terminal Blocks category at EnvMart.
