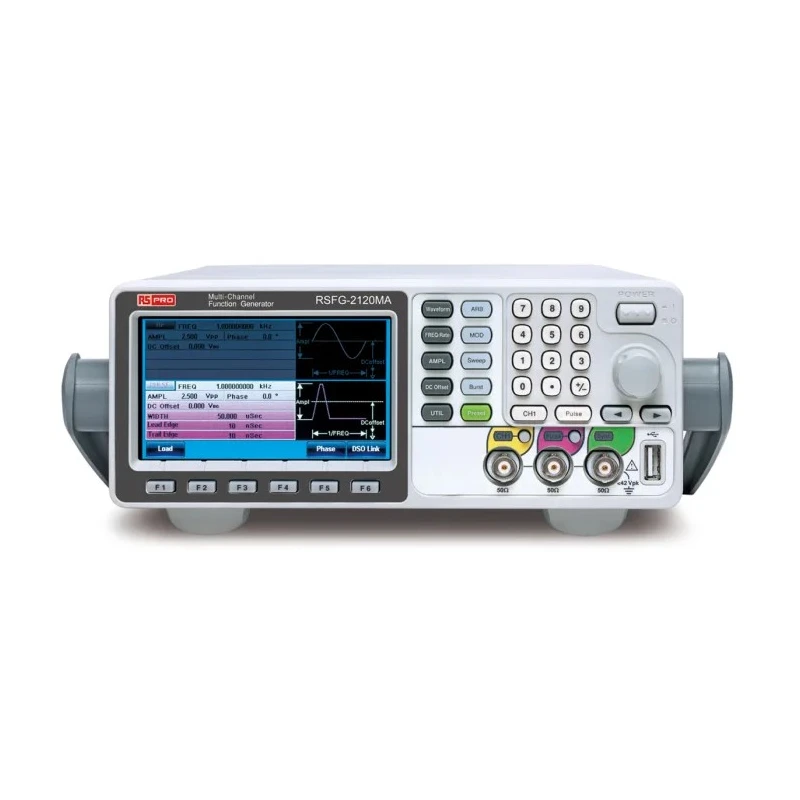

RS PRO RSFG-2120MA Function Generator 25 MHz Frequency Range 5 Channels USB LAN Interface RSFG-2120MA

RS PRO RSFG-2120MA Function Generator is a high-performance signal generator designed for industrial, laboratory, and test & measurement applications. This device offers a maximum frequency range of 25 MHz across sinewave, square pulse, and arbitrary waveforms, along with FM modulation capabilities. Featuring five output channels, including two arbitrary channels and an RF channel, it supports complex waveform generation and modulation schemes.

The function generator is equipped with a 4.3 inch TFT colour display that provides an easy-to-use interface for controlling output signals. Users can access features such as AM, FM, PM, FSK, PWM modulations along with sweep, burst, and trigger functions for enhanced testing flexibility. It includes a pulse generator capable of 25 MHz operation, allowing fine adjustments of pulse width, duty cycle, and edge times.

RSFG-2120MA incorporates USB and LAN interfaces for remote operation and integration into automated test setups. Its built-in power amplifier with 20 W output provides low distortion amplification for speaker or experimental connections. The device’s time base accuracy of ±20 ppm and digital amplitude and offset adjustments ensure high precision in signal output.

With compact dimensions (293mm wide, 266mm long, 107mm high) and a weight of 2.5 kg, the generator is portable and suitable for laboratory benches and field testing. It operates reliably in ambient temperatures from 0°C to 40°C, making it adaptable across industrial and research environments.

Additional features include a 150 MHz frequency counter, internal linear and logarithmic sweep, and TTL output level of 4 V peak-to-peak. The instrument meets CE and IEC standards, confirming its safety and quality for professional use.

Provides five output channels including arbitrary, pulse, and RF channels for versatile signal needs. Supports sine, square, triangle, and arbitrary waveforms up to 25 MHz frequency range. Includes FM modulation and internal linear and logarithmic sweep capabilities.

Features a 4.3 inch TFT colour display for clear interface and easy navigation. Equipped with USB and LAN interface types for flexible device connection and control. Built-in pulse generator with pulse width, duty cycle, rise and fall edge time control.

Offers a low-frequency 20W/20dB power amplifier with less than 0.1% distortion. Time base accuracy of ±20 ppm ensures precise frequency generation. Compact dimensions of 293mm width, 266mm length, and 107mm height for convenient use in various settings.

Operates reliably within 0°C to 40°C temperature range suitable for lab and industrial use.

This RS PRO Function Generator is ideal for industrial, laboratory, research, and educational testing purposes, offering versatile signal generation with high precision and modulation options. Explore more professional test and measurement instruments at EnvMart.
