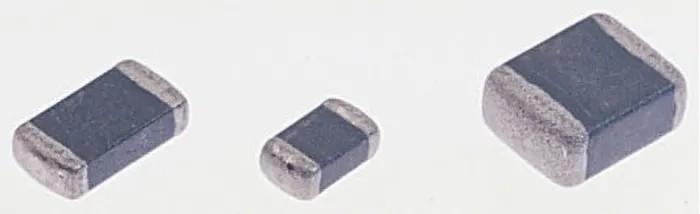

KYOCERA AVX VC Varistor 1 A Clamping 100 V Surface Mount Ceramic VC Series VC120648D101DP
Specifications
| Country of Origin | India |
|---|---|
| Brand | KYOCERA AVX |
| Material | Ceramic |
| Height | 1.02mm |
| Length | 3.2mm |
| Model | VC120648D101DP |
| Depth | 1.6mm |
| Mount Type | Surface |
| Series | VC |
| Energy Rating | 0.4J |
| Maximum Operating Temperature | 125°C |
| Maximum dc Voltage | 48V dc |
| Maximum AC Voltage | 34V ac |
| Clamping Voltage VC | 100V |
| Clamping Current | 1A |
| Maximum Surge Current | 100A |
| KYOCERA AVX, VC Varistor 1 A, Clamping 67 VBrand | KYOCERA AVX |
Key Features
- Clamping voltage of 100 V provides effective transient voltage suppression.
- Clamping current rating of 1 A ensures reliable operation under surge conditions.
- Compact surface mount design with dimensions 3.2mm length, 1.6mm depth, and 1.02mm height.
- Constructed from high-quality ceramic material for durability and stability.
- Maximum operating temperature of 125°C suitable for various industrial environments.
- Maximum AC voltage rating of 34 V AC and DC voltage rating of 48 V DC.
- Energy rating of 0.4 joules for absorbing transient energy.
- Part of the VC series of multilayer ZnO ceramic suppressors with copper clad steel solder coated leads.
Product Description
KYOCERA AVX VC120648D101DP is a high-performance VC Series varistor designed for transient voltage suppression in electronic circuits. This surface mount varistor features a clamping voltage of 100 V and a clamping current rating of 1 A, making it ideal for protecting sensitive electronic components from voltage spikes and surges.
The device is constructed using multilayer zinc oxide (ZnO) ceramic technology, which offers excellent energy absorption and durability. Its compact dimensions of 3.2 mm length, 1.6 mm depth, and 1.02 mm height allow for efficient PCB space utilization in surface mount technology (SMT) applications.
With a maximum AC voltage rating of 34 V and a maximum DC voltage rating of 48 V, it is suitable for a wide range of industrial, laboratory, and manufacturing use cases that require reliable surge protection. The varistor’s maximum operating temperature of 125°C ensures stable performance even under demanding environmental conditions.
This varistor has an energy rating of 0.4 joules and a maximum surge current capability of 100 A, providing robust defense against transient voltages. The copper clad steel, solder coated lead finish enables secure and long-lasting solder joints in automated assembly processes.
Industries such as electronics manufacturing, power supply design, telecommunications, and automotive electronics can benefit from the reliable protection offered by the KYOCERA AVX VC120648D101DP varistor.
Clamping voltage: 100 V. Clamping current: 1 A. Maximum AC voltage: 34 V AC. Maximum DC voltage: 48 V DC. Energy rating: 0.4 J. Maximum surge current: 100 A. Operating temperature max: 125°C. Compact surface mount dimensions: 3.2mm x 1.6mm x 1.02mm.
Material: Ceramic multilayer ZnO. Lead finish: Copper clad steel, solder coated. This Varistor is part of the TransGuard® family of SMT transient suppressors by KYOCERA AVX, engineered to enhance circuit protection and improve production efficiency.
Explore a wide range of reliable electronic components at EnvMart to support your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this varistor is 100 V, providing effective transient voltage suppression.
This model has a maximum surge current capability of 100 A, ensuring robust defense against transient voltages.
The dimensions of this varistor are 3.2 mm in length, 1.6 mm in depth, and 1.02 mm in height, making it suitable for compact PCB designs.
The maximum operating temperature for this varistor is 125°C, allowing stable performance in various industrial environments.
This varistor has a maximum AC voltage rating of 34 V and a maximum DC voltage rating of 48 V, suitable for a wide range of applications.
It is constructed from ceramic multilayer ZnO material, which provides durability and stability for surge protection.
The energy rating of this model is 0.4 joules, which indicates its capacity to absorb transient energy effectively.
This unit is designed for surface mounting, making it compatible with SMT applications.
This varistor is part of the VC series of multilayer ZnO ceramic suppressors by KYOCERA AVX.
Industries such as electronics manufacturing, power supply design, telecommunications, and automotive electronics can benefit from its surge protection capabilities.
The lead finish is copper clad steel with a solder-coated finish, ensuring secure and long-lasting solder joints during assembly.
This varistor enhances circuit protection by providing effective transient voltage suppression, protecting sensitive components from voltage spikes and surges.
