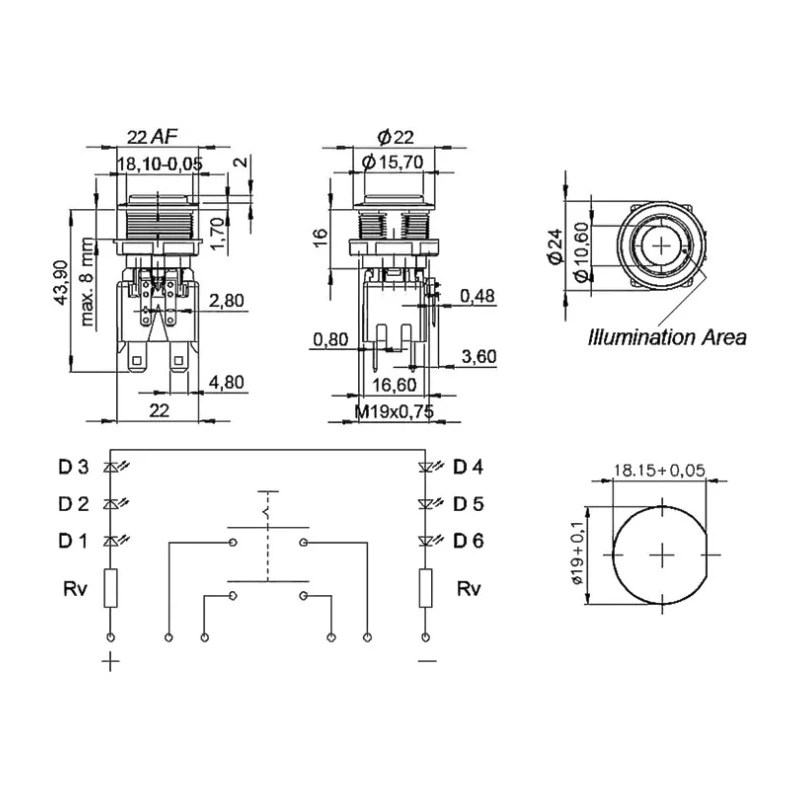

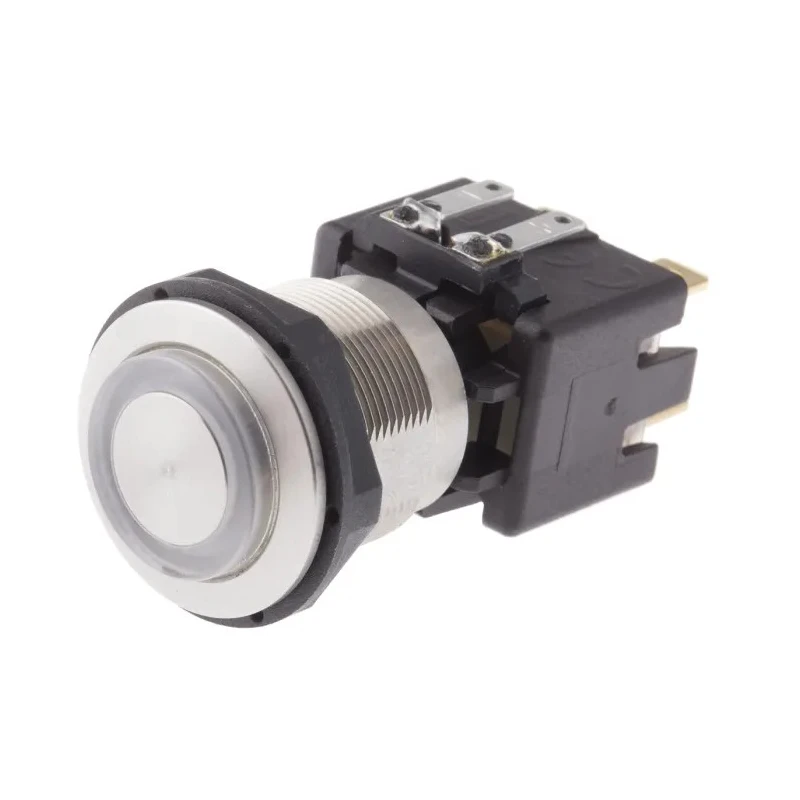

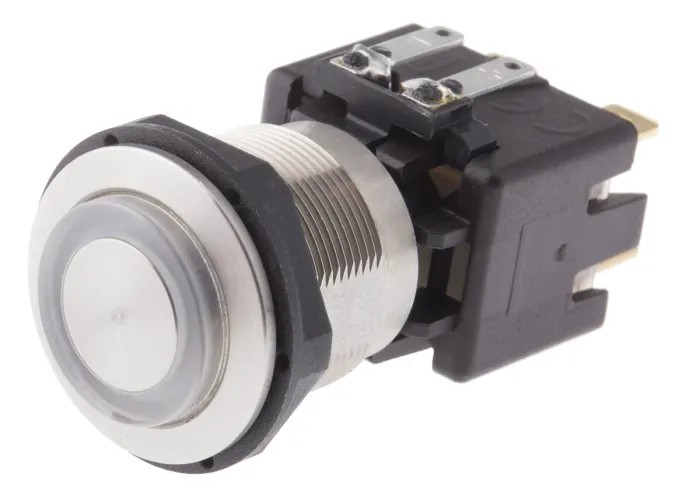

Schurter MSM LA 19 Series Illuminated Push Button Switch, Latching, Panel Mount, 19 mm Cutout, DPDT, Red 1241.6824.1121000

Name: Schurter MSM LA 19 Series Illuminated Push Button Switch, Latching, Panel Mount, 19 mm Cutout, DPDT, Red 1241.6824.1121000
Brand: Schurter
SKU: 87181
Price: 50 USD
Availability: InStock



Category Push Button Switch Brand Schurter Condition New

Specifications

Country of Origin	India
Brand	Schurter
Height	22mm
IP Rating	IP64
Width	22mm
Mount Type	Panel
Series	MSM LA 19
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	2P
Minimum Operating Temperature	-20°C
Panel Cutout Size	19 mm
Terminal type	Tab
Standards/Approvals	CE, RoHS
LED Colour	Red
Switch Operation	Latching
Actuator Colour	Natural
Contact DC Voltage	125V dc
Actuator Style	Round
Switch Contact Current	12A
Operating Force	10N
Contact AC Voltage	125V ac

Key Features

Robust stainless steel push button switch designed for harsh environments.
Offers latching operation and is suitable for panel mounting with 19 mm cutout.
Features DPDT contact configuration for versatile switching requirements.
Integrated red LED illumination with IP64 protection against dust and water.
Supports both 125 V DC and 125 V AC operation for industrial compatibility.
Rated for 12 A switch contact current and quick-connect tab terminals.
Operates reliably from -20°C to 85°C ambient temperature.
Mechanical life up to 150,000 operations for durable performance.

Product Description

The Schurter MSM LA 19 Series Illuminated Push Button Switch, model 1241.6824.1121000, is a high-performance latching switch engineered for demanding applications where reliability and durability are essential. Designed for panel mounting with a 19 mm cutout, this switch offers robust construction in a stainless steel housing and is IP64 rated, ensuring excellent protection against dust and splashing water.

This push button features a DPDT contact configuration, making it suitable for a range of industrial circuits requiring versatile switching. Its latching mechanism operates with a push-on, push-off action, allowing secure control over connected devices or systems. The actuator is finished in natural color, is round, and provides visual status feedback thanks to a bright red LED, which is clearly visible even under challenging lighting conditions. The switch is equipped with a quick-connect tab terminal for straightforward and efficient installation.

The MSM LA 19 switch is illuminated and supports both DC and AC operation at 125 V, making it compatible with modern industrial electrical standards. It delivers a rated contact current of 12 A, suitable for controlling sizable loads. The operating force is 10N with a travel distance of 4.5 mm, and the actuator protrudes 3.7 mm above the panel in its off state, ensuring ease of operation. Designed to perform reliably in environments with ambient temperatures ranging from -20°C to 85°C, the switch boasts a mechanical longevity of up to 150,000 operations.

Engineered to offer excellent resistance to mechanical shock (IK07), the switch meets standards such as CE and RoHS for global compliance and safety. Available in point-illuminated types that require external resistors for suitable voltage operation, and ring-illuminated types with integrated resistors for 24V DC use, the MSM LA 19 accommodates flexible installation and operation styles. It provides a wide illuminated viewing angle (180°), allowing for easy optical status confirmation at a glance.

Applications include industrial control panels, access control systems, machinery control, instrumentation, and environments where anti-vandal protection, reliable switching, and visual feedback are critical. Its high ingress protection rating and robust stainless steel build make it ideal for public and outdoor installations. This switch can be found in manufacturing, automation, commercial settings, and laboratory equipment.

Browse the complete range of Schurter Push Button Switches and related industrial switching products in the Electronics & Electricals and Switches & Sockets categories on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching requirements in industrial applications.

The switch is rated for a contact current of 12 A, making it suitable for controlling sizable loads in various applications.

It operates reliably within a temperature range of -20°C to 85°C, ensuring functionality in diverse environmental conditions.

This switch is designed for panel mounting with a cutout size of 19 mm, making it easy to integrate into control panels.

The switch has an IP64 rating, providing protection against dust and splashing water, suitable for harsh environments.

It supports both 125 V DC and 125 V AC operation, making it compatible with various industrial electrical standards.

This model is equipped with quick-connect tab terminals, facilitating straightforward and efficient installation.

The mechanical life of this switch is rated up to 150,000 operations, indicating its durability for frequent use.

The actuator is round in style and finished in a natural color, providing a clear visual feedback with its red LED illumination.

It meets CE and RoHS standards, ensuring compliance with global safety and environmental regulations.

The operating force for this switch is 10N, allowing for a secure and reliable operation during use.

It is suitable for applications such as industrial control panels, access control systems, and machinery control, particularly where visual feedback and reliable switching are critical.
