Maxim Integrated Voltage Regulator Surface Mount 1.3 W 5.5 V 8-Pin MAX1792EUA33+

Free Delivery in India | Lowest Global Shipping Charges

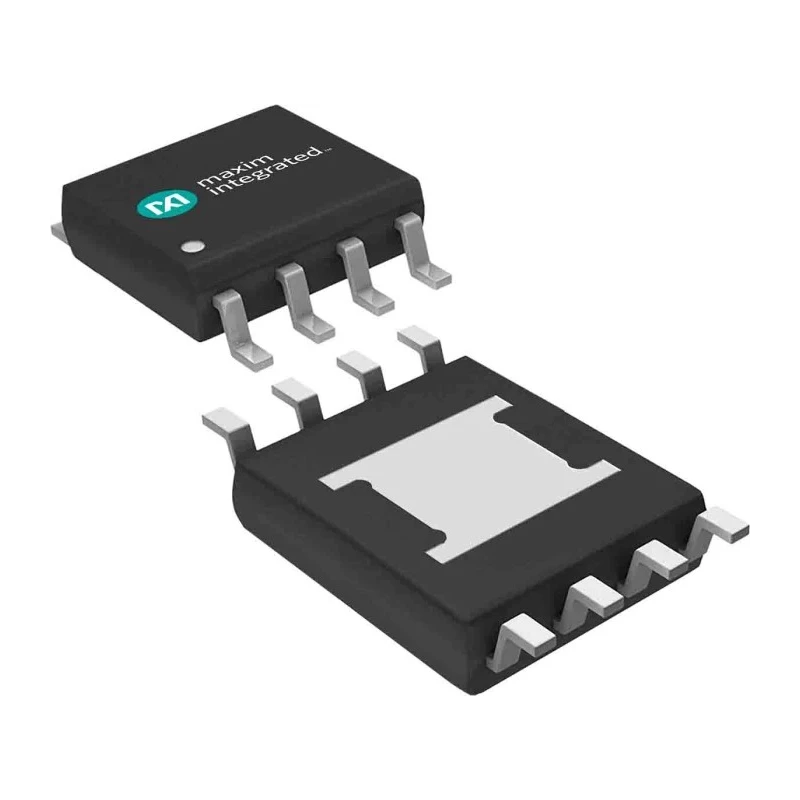

Maxim Integrated Voltage Regulator Surface Mount 1.3 W 5.5 V 8-Pin MAX1792EUA33+

Name: Maxim Integrated Voltage Regulator Surface Mount 1.3 W 5.5 V 8-Pin MAX1792EUA33+
Brand: Maxim Integrated
SKU: 159500



Category Voltage Regulator Brand Maxim Integrated Condition New

Specifications

Country of Origin	India
Brand	Maxim Integrated
Height	950μm
Length	3.05mm
Model	MAX1792EUA33+
Width	3.05mm
Mount Type	Surface
Series	MAX1792
Power Rating	1.3W
Maximum Operating Temperature	85°C
Polarity	Positive
Interfaces	USB Hubs
Maximum Input Voltage	5.5V
Quiescent Current	110μA
Minimum Input Voltage	2.5V
Pin Count	8

Key Features

Provides guaranteed 500 mA output current for stable power delivery.
Low 130 mV dropout at 500 mA load ensures efficient regulation.
Offers up to ±1% output voltage accuracy for precise performance.
Output voltage preset at common levels or adjustable from 1.25 V to 5.0 V.
Includes reset output with 4 ms timeout period for system monitoring.
Low quiescent current of 110 μA reduces power consumption.
Extremely low shutdown current of 0.1 μA enhances energy savings.
Built-in thermal overload protection and output current limiting for reliability.

Product Description

Maxim Integrated MAX1792EUA33+ is a high-performance voltage regulator designed for efficient power management in compact electronic devices. The device supports a power rating of 1.3 W with a maximum operating input voltage of 5.5 V and features an 8-pin surface mount package measuring 3.05 mm by 3.05 mm and a height of 950 μm, making it well suited for modern portable applications.

This voltage regulator guarantees a 500 mA output current with a low dropout voltage of 130 mV at full load, ensuring stable and efficient voltage regulation. It offers exceptional output voltage accuracy of up to ±1%, with preset options at 1.5 V, 1.8 V, 2.5 V, 3.3 V, or 5.0 V, as well as an adjustable output voltage range from 1.25 V to 5.0 V to accommodate various device requirements.

The device includes a reset output with a 4 ms timeout period for reliable system supervision and has a low quiescent current of 110 μA, which supports battery-powered applications by minimizing power consumption. Additionally, it features an ultra-low shutdown current of 0.1 μA, thermal overload protection, and output current limiting to enhance device safety and reliability.

Its compact μMAX package and surface mount design facilitate easy integration into space-constrained PCBs, making it ideal for consumer electronics such as cell phones, cordless phones, docking stations, notebook and palmtop computers, PDAs, USB hubs, and wireless base stations.

Guaranteed 500 mA output current. Low dropout voltage of 130 mV at 500 mA. High accuracy output voltage with ±1% tolerance. Multiple preset and adjustable output voltage options. Reset output with timeout for system monitoring.

Low quiescent and shutdown currents for energy efficiency. Thermal overload and output current protection included. Compact 8-pin μMAX surface mount package. Suitable for various portable and wireless communication devices.

This sophisticated voltage regulator is suitable for industrial, telecommunications, portable electronics, and other power management applications requiring miniature size, high efficiency, and reliable output voltage regulation. For broader selections of Voltage Regulators by Maxim Integrated and other brands, explore EnvMart’s Electronics & Electricals categories.
