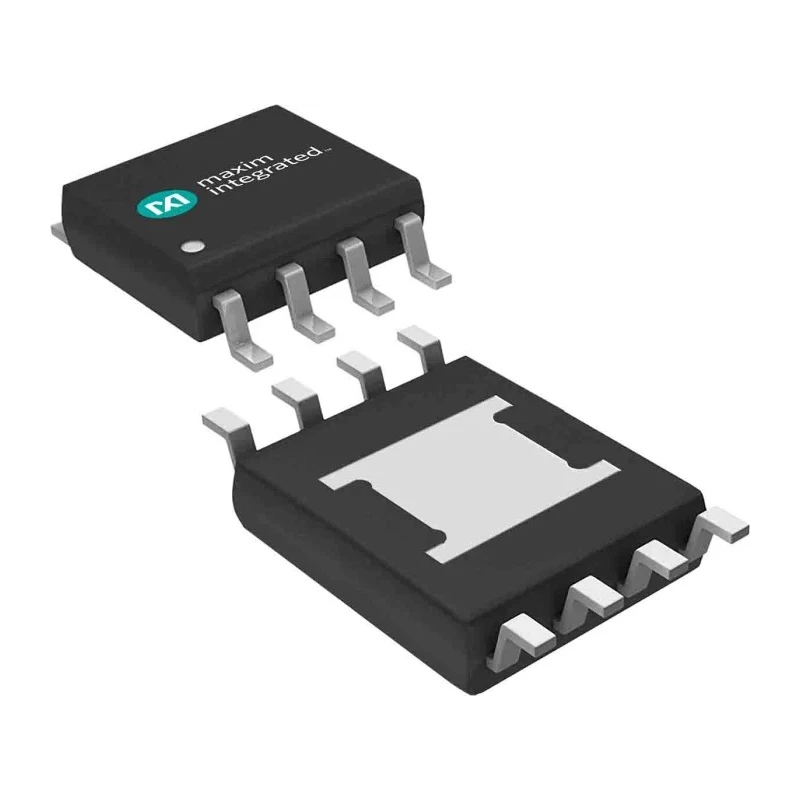

Maxim Integrated Voltage Regulator 330mW 5.5V Surface Mount Positive Polarity 8-Pin MAX1795EUA+

Maxim Integrated MAX1795EUA+ is a high-efficiency voltage regulator designed for low power applications with a maximum input voltage of 5.5V and a power rating of 330mW. It features true-shutdown circuitry that disconnects the output from the input during shutdown mode, minimizing power consumption. The regulator operates with a low quiescent current of 25μA and an ultra-low shutdown current of 2μA, making it suitable for battery-powered portable devices.

The device is packaged in a compact 8-pin μMAX surface mount package with dimensions of 3.1mm length, 3.1mm width, and 950μm height, enabling space-efficient PCB integration. Its antiringing circuitry ensures low noise operation, improving overall signal quality. The built-in LBI/LBO comparator functions even during shutdown, adding robustness to power management designs.

Designed to operate at temperatures up to 85°C, the MAX1795EUA+ regulator supports positive polarity applications commonly found in PDAs, palmtops, portable digital audio players, portable terminals, and wireless handsets.

High efficiency greater than 95%. True-shutdown circuitry disconnects output during power off. Low quiescent current of 25μA for energy savings. Low-noise antiringing feature. Enabled LBI/LBO comparator during shutdown mode.

Extremely low shutdown current of 2μA. Compact 8-pin μMAX package. Reliable operation up to 85°C. Surface mount package suitable for portable electronics. Ideal for PDAs, handheld devices, and wireless communication equipment.

This voltage regulator is widely applicable in industrial electronics, consumer portable devices, communications, and other fields requiring efficient and compact power management solutions. Explore more voltage regulators and power management integrated circuits in the EnvMart catalog for your next project or production line.
