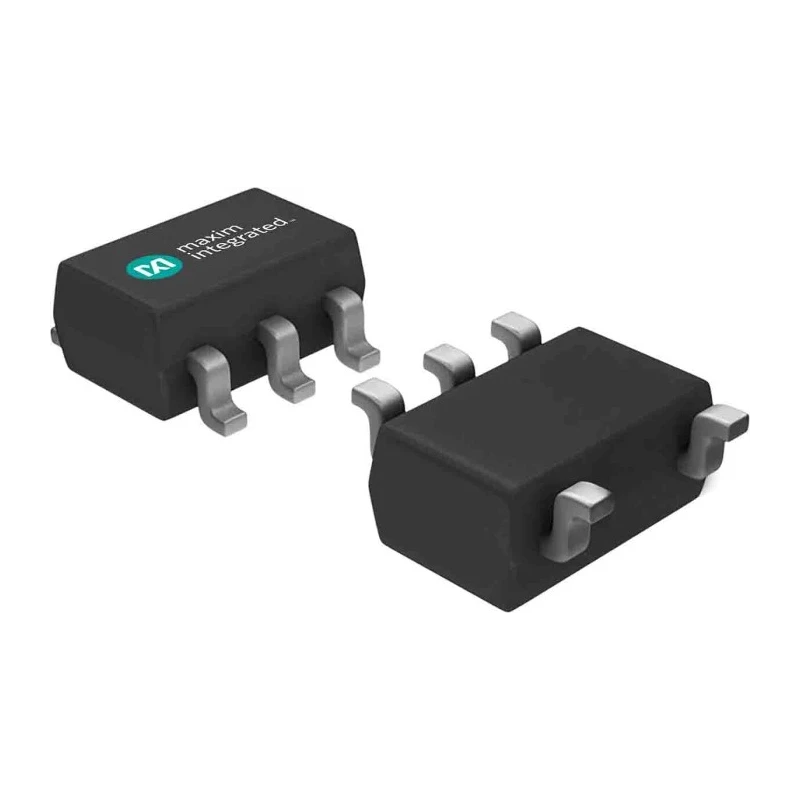

Maxim Integrated Line Transceiver CMOS Non-Inverting 5-Pin SOT-23 MAX3180EEUK+T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 1.45mm |
| Length | 3mm |
| Model | MAX3180EEUK+T |
| Width | 3mm |
| Mount Type | Surface |
| Output type | CMOS |
| Input Type | Single Ended, Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | Driver, Line Driver, Converter |
| Minimum Supply Voltage | 3V |
| Maximum Propagation Delay Time @ CL | 0.15μs |
| Supply Current | 5μA |
Key Features
- Operates within a supply voltage range of 3V to 5.5V ensuring flexibility in power supply options.
- Utilizes CMOS/TTL logic family suitable for diverse digital interfacing environments.
- Designed with a non-inverting polarity for stable signal transmission.
- Compact surface mount SOT-23 package dimensions of 3mm length, 3mm width, and 1.45mm height for space-constrained applications.
- Features a maximum propagation delay time of 0.15 microseconds for high-speed data rates up to 1.5Mbps.
- Low supply current consumption of 5 microamperes ensures energy efficiency in handheld and battery-operated equipment.
- Operational temperature range from -40°C to +85°C enabling wide industrial and commercial use cases.
- ESD protected input with immunity to ±15kV Human Body Model, ±8kV contact discharge, and ±15kV air-gap discharge for reliable operation.
Product Description
Maxim Integrated MAX3180EEUK+T Line Transceiver is a CMOS-based, non-inverting line interface IC designed to support reliable data transmission over communication lines. Encapsulated in a tiny 5-Pin SOT-23 surface mount package measuring 3mm in length and width and 1.45mm in height, it enables integration into compact electronic systems.
Operating efficiently within a voltage range of 3V to 5.5V, this transceiver IC features a low supply current of only 5 microamperes, making it highly suitable for power-sensitive applications such as handheld devices and digital cameras. It guarantees a data rate of up to 1.5Mbps with a maximum propagation delay of 0.15 microseconds, supporting high-speed digital communication interfaces with CMOS/TTL logic compatibility.
The device offers extensive electrostatic discharge protection with ±15kV Human Body Model and other ESD standards, ensuring robustness in industrial and commercial environments. Its operating temperature range of -40°C to 85°C allows deployment across diverse conditions from telecommunications networks to diagnostic equipment.
Operates from 3V to 5.5V supply voltage. CMOS/TTL logic family compatibility. Non-inverting polarity line driver function. Compact 5-Pin SOT-23 surface mount package. Maximum propagation delay time of 0.15μs. Low supply current of 5μA for energy efficiency.
Wide operating temperature range -40°C to 85°C. Built-in ESD protection for enhanced reliability. Supports data rates up to 1.5Mbps. Suitable for network equipment, handheld, set-top boxes, and diagnostic applications.
This line transceiver IC is optimized for modern electronics manufacturing with surface mount technology, ensuring high performance and durability in industrial, laboratory, telecommunications, consumer electronics, and network infrastructure applications. Ideal for OEMs and system integrators requiring compact and reliable interface components.
Explore our broad range of semiconductor and interface ICs to find compatible products and accessories for your communication system designs.
Explore more products in our Line Interface ICs category.
