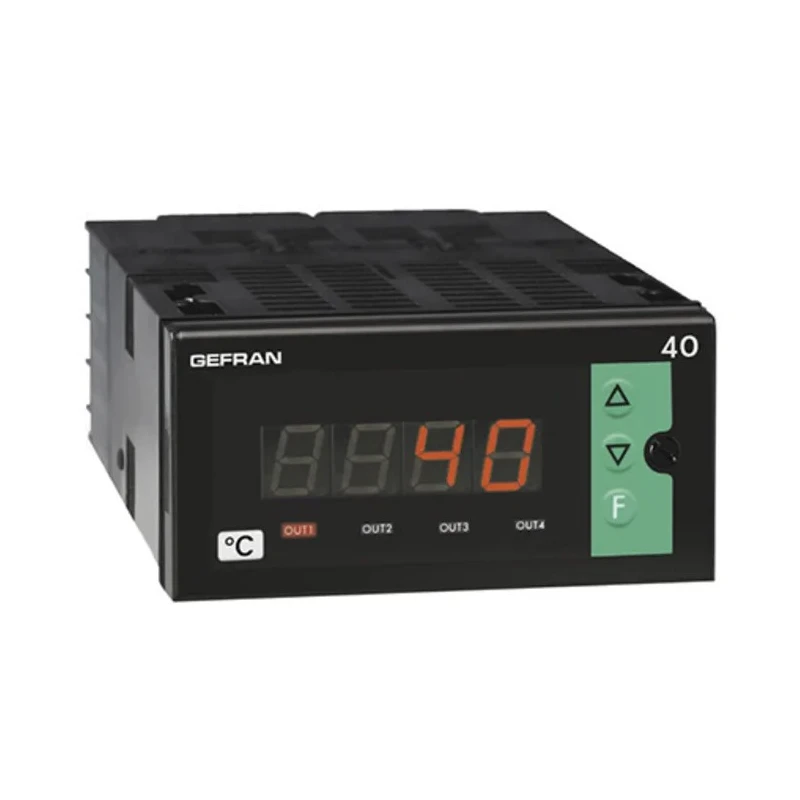

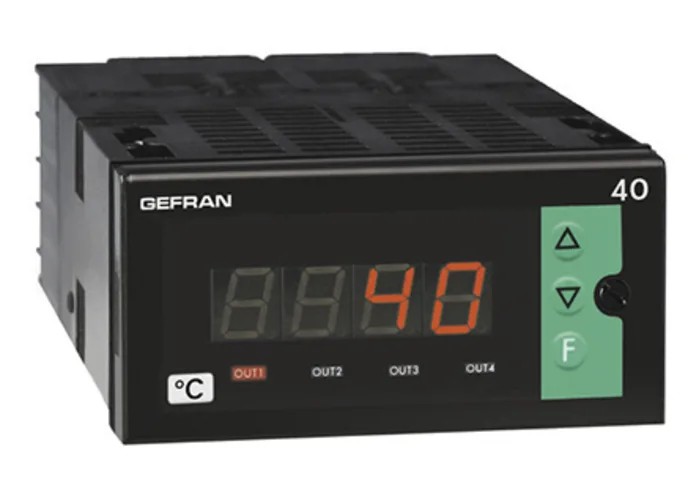

Gefran 40T96 Panel Temperature Indicator 1 Input 2 Output Relay 240V ac/dc 40T96-4-00-RR00-000 (EX 40T96-4-00-RR000
Specifications
| Country of Origin | Italy |
|---|---|
| Display Type | 3/4 Digit Red LED |
| Brand | Gefran |
| Length | 96mm |
| Model | 40T96-4-00-RR00-000 (EX 40T96-4-00-RR000 |
| IP Rating | IP65 |
| Width | 96mm |
| Mount Type | Panel |
| Number of inputs | 1 |
| Output type | Relay |
| Series | 40T96 |
| Input Type | K Type Thermocouple |
| Maximum Operating Temperature | 50°C |
| Control Type | Temperature Control |
| Minimum Operating Temperature | 0°C |
| Maximum Current | 5A |
| Number of outputs | 2 |
| Terminal type | Screw |
| Maximum Voltage | 250V |
| Maximum Supply Voltage | 240V ac/dc |
| Digital Comms | RS232 (Configuration) |
| Panel Depth | 105mm |
| Firing Mode | Phase Angle |
| RS485 optically isolated serial line protocol | GEFRAN CENCAL or MODBUS RTU |
Key Features
- Supports a maximum current of 5A with 240V ac/dc supply voltage.
- Equipped with a 3/4 digit red LED display for clear temperature readout.
- IP65 rated for robust protection against dust and moisture.
- Includes RS232 digital communication for configuration purposes.
- Operates within 0 to 50 degrees Celsius for diverse industrial environments.
- Panel mount type with dimensions 96mm x 96mm and depth of 105mm.
- Utilizes K Type Thermocouple input sensor for accurate temperature sensing.
- Has phase angle firing mode for precise control.
Product Description
Gefran 40T96-4-00-RR00-000 (EX 40T96-4-00-RR000) Panel Temperature Indicator offers industrial-grade temperature control with 1 input and 2 relay outputs. Designed for robust and accurate temperature measurement, this panel mount indicator supports K Type Thermocouple sensors and operates on 240V ac/dc power supply.
The device features a clear 3/4 digit red LED display and is protected with an IP65 rating, making it suitable for harsh industrial environments. Its operational temperature range of 0°C to 50°C allows usage across diverse applications including air conditioning, food processing, humidity control, industrial refrigeration, mold cooling, and thermostat systems.
Equipped with RS232 digital communication for easy configuration and RS485 optically isolated serial line protocol supporting GEFRAN CENCAL or MODBUS RTU, this model provides excellent integration capabilities in automated processes.
The 40T96 series offers features like 2 configurable alarm outputs, indication of probe faults such as cut-out or short circuit, and sensor-break safety detection to prevent measurement errors and damage. Its phase angle firing mode enables precise control in power management applications.
Supports configurable input ranges including linear input signals, thermoresistance, thermocouple, or thermistor. Custom thermocouple linearization available via faceplate keys. Sampling time and trip intervention are programmable between 15 and 120 milliseconds with resolutions from 4000 to 16000 steps.
Protected by a personal code to prevent unauthorized settings changes. Complies with stringent European standards including ISO 9001, CE (EN50082-2, EN50081-1, EN 60584-1/2, DIN 43760).
This temperature indicator is ideal for use in industrial manufacturing processes, HVAC systems, water treatment, and laboratory applications where precise temperature monitoring and control are essential.
Choose the Gefran 40T96 Panel Temperature Indicator for reliable, configurable, and accurate temperature control performance in demanding industrial environments. Explore more products in Temperature Controllers and related automation solutions at EnvMart.
