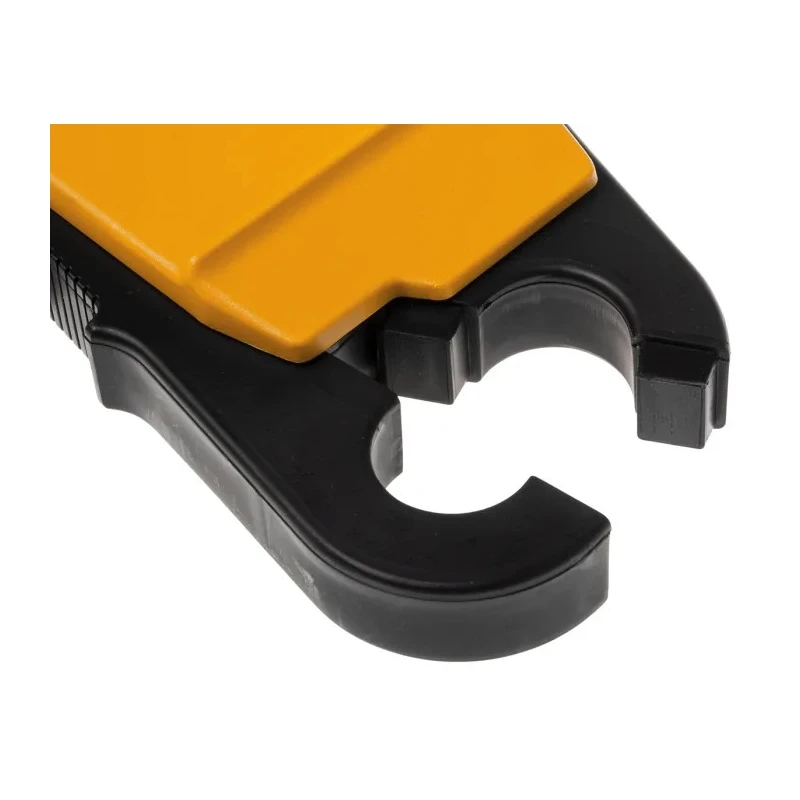

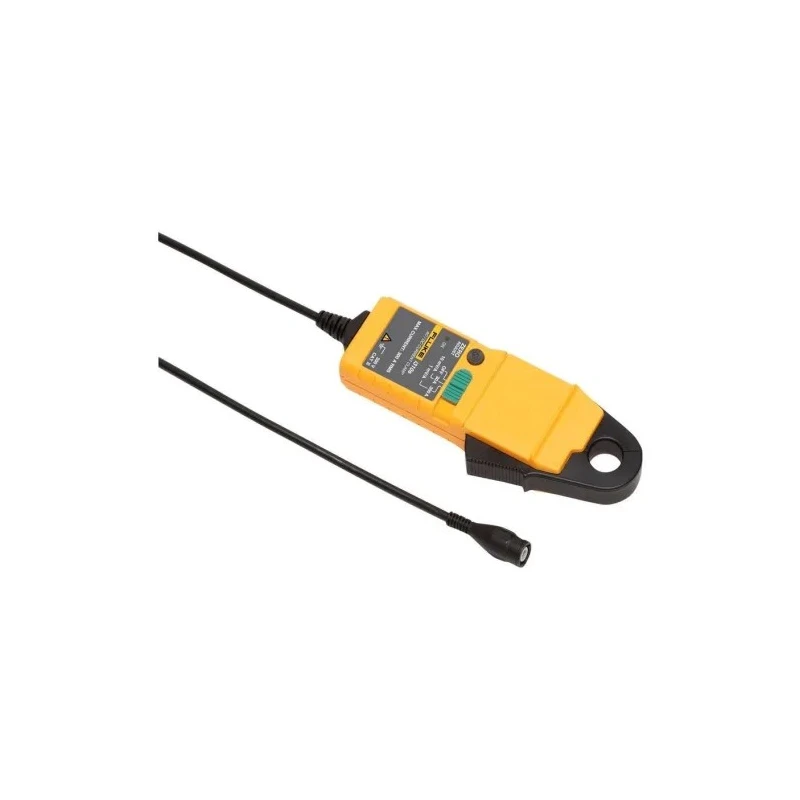

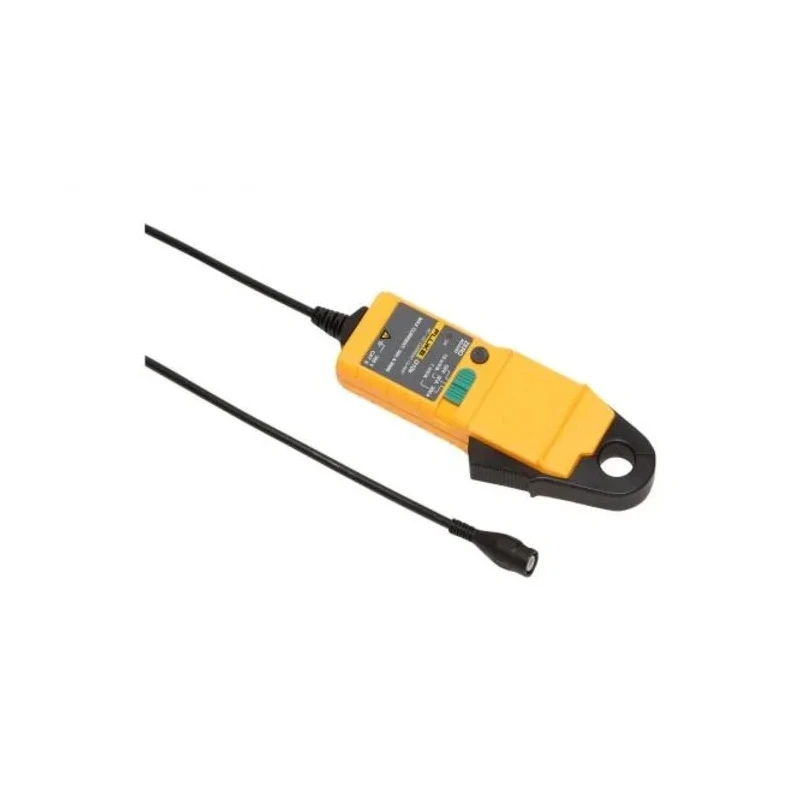

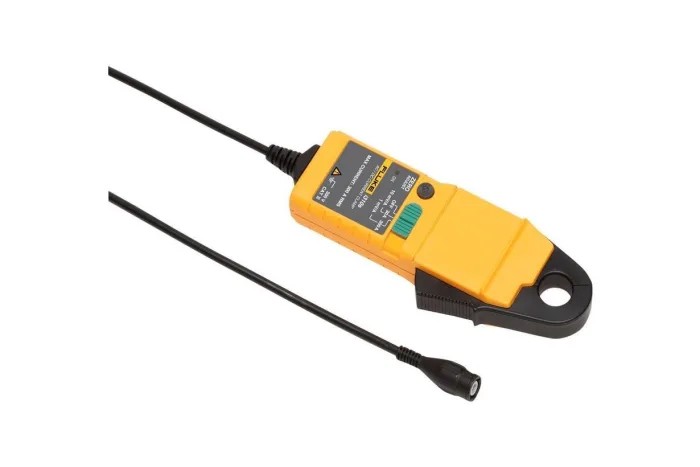

Fluke Current Clamp with AC/DC Adapter, 450 A DC Max, 300 A AC Max, Voltage Output FLUKE I310S

Free Delivery in India | Lowest Global Shipping Charges

Fluke Current Clamp with AC/DC Adapter, 450 A DC Max, 300 A AC Max, Voltage Output FLUKE I310S

Name: Fluke Current Clamp with AC/DC Adapter, 450 A DC Max, 300 A AC Max, Voltage Output FLUKE I310S
Brand: FLUKE
SKU: 160212
Price: 904.48 USD
Availability: InStock



Category Current Clamps Brand FLUKE Condition New

Specifications

Country of Origin	China
Accuracy	±1% + 300 mA
Brand	Fluke
Battery Life	30h
Battery type	PP3
Model	FLUKE I310S
Cable Length	2m
Connector Type	BNC
Output type	Voltage
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-10°C
Adapter Type	AC/DC
Safety Category Level	CAT III
Safety Category Voltage	300V
Maximum DC Current	450A
Maximum AC Current	300A
Maximum Conductor Size	19mm

Key Features

Measures DC current up to 450 A for high-current diagnostics.
Captures AC current up to 300 A for alternating current checks.
Provides accuracy of ±1% plus 300 mA for precise measurements.
Accepts conductors up to 19 mm diameter compatible with larger cables.
Includes 2 meter cable with BNC connector for easy interfacing.
Powered by PP3 alkaline battery providing up to 30 hours of operation.
Operates safely in temperatures ranging from -10°C to 50°C.
Safety rated CAT III for use up to 300 V on-site electrical work.

Product Description

Fluke FLUKE I310S Current Clamp with AC/DC Adapter is a handheld device designed for accurate, non-invasive current measurement with voltage output. This clamp meter measures DC currents up to 450 A and AC currents up to 300 A using a voltage output suitable for external meters or data loggers.

Equipped with an AC/DC adapter, it accepts conductors up to 19 mm diameter and comes with a 2 meter cable with a BNC connector to facilitate direct instrument connection. The instrument runs on a PP3 alkaline battery providing approximately 30 hours of portable use, making it ideal for field and workshop applications.

Constructed and tested to meet IEC 61010-1, IEC 61010-2, and IEC 61326-1 standards, it carries a safety category rating of CAT III at 300 V for safe onsite electrical measurement. Operating temperature range spans from -10°C to 50°C, allowing use in varied ambient conditions.

Common industrial applications include maintenance and diagnostics on industrial motor drives, commissioning of distribution boards, site testing under varying temperature conditions, fault-finding on DC battery banks, and use with oscilloscopes and recording equipment requiring voltage output.

Measures DC currents up to 450 A with ±1% + 300 mA accuracy. Captures AC currents up to 300 A for alternating current circuit checks. Accepts conductors up to 19 mm suitable for larger cables. Includes a 2-meter cable with BNC connector for instrument interfacing.

Battery powered for up to 30 hours operation using PP3 alkaline battery. Safety rated CAT III for operation up to 300 V in regulated environments. Meets IEC 61010-1, IEC 61010-2, and IEC 61326-1 standards for safety and electromagnetic compatibility.

This current clamp is an essential instrument in industrial, laboratory, construction, electrical maintenance, and HVAC sectors where accurate current measurement is critical. Explore more advanced test and measurement tools within the EnvMart Industrial Instruments category for your professional needs.
