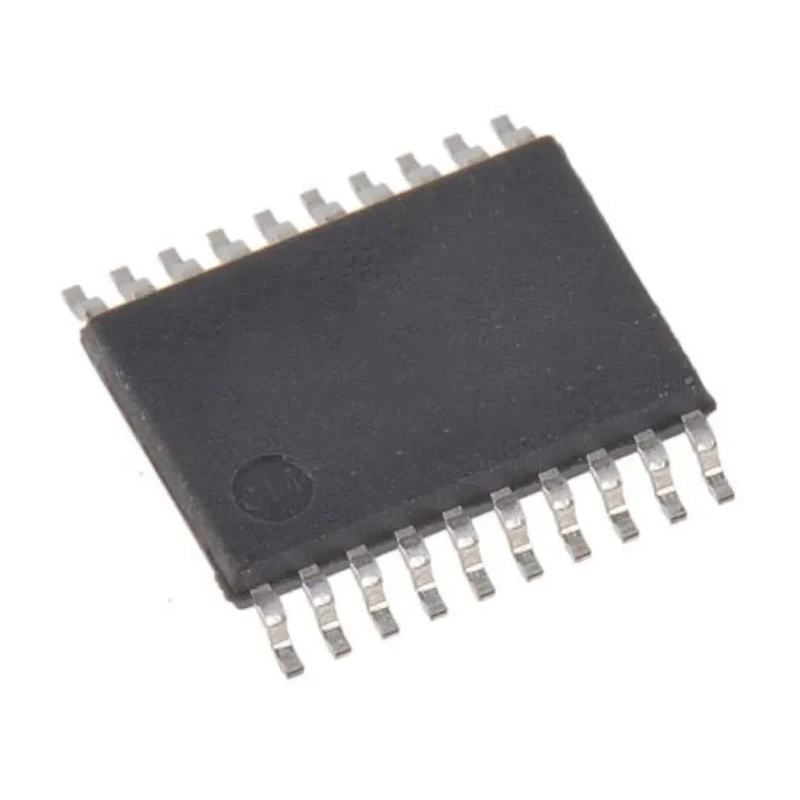

Maxim Integrated CMOS/TTL Inverting Line Transceiver, 20-Pin TSSOP MAX3381EEUP+

Maxim Integrated MAX3381EEUP+ is a 20-pin TSSOP CMOS/TTL line transceiver designed for reliable and efficient signal transmission in electronic systems. It features inverting logic functionality and supports a wide operating voltage range from 2.35V to 5.5V, making it compatible with Li+ battery-powered devices and various commercial systems.

This line transceiver incorporates robust ±15kV ESD protection on all CMOS inputs and outputs (except active-low INVALID), significantly enhancing device longevity and system reliability. The device supports low-power operation through an auto-shutdown plus mode with minimal supply current of 1mA, which is critical for portable and mobile applications.

With a maximum propagation delay time of 0.15μs at CL, the MAX3381EEUP+ enables data communication at next-generation GSM data rates, suitable for cellular data cables, digital still cameras, GPS receivers, and PDA data cables. Its compact 20-pin thin shrink small outline package (TSSOP) measures 6.9mm in length, 6.55mm in width, and 1.1mm in height, allowing space-saving PCB designs.

The device operates reliably in extreme temperatures ranging from -40°C to 85°C, ideal for industrial, communication, and telecommunications equipment. It has an inverting output polarity with CMOS/TTL output types and single-ended input compatible with various logic systems.

The MAX3381EEUP+ is surface mountable for modern manufacturing processes and offers maximum high-level output current of -500μA and maximum low-level output current of 500μA. This product is not automotive standard certified but provides trustworthy performance within its specified ratings.

Operates over entire Li+ battery range with low logic threshold down to +1.65V. Designed for cellular data cables and communication devices requiring reliable line interfacing. Compact, surface mount TSSOP package for high-density PCB layouts.

Robust ESD protection enhances device durability and safety. Low power consumption with auto-shutdown feature extends battery life. Provides high-speed data transmission with propagation delay of 0.15μs. Wide temperature range supports industrial and commercial applications.

This Maxim Integrated line transceiver is an essential component for industrial, telecommunications, and consumer electronics requiring efficient data communication and robust device protection. Explore more semiconductor and interface ICs suitable for varying electronic designs at EnvMart.
