Finder PCB Power Relay 24V AC Coil Voltage 10A Switching Current SPDT 40.31.8.024.0000

Free Delivery in India | Lowest Global Shipping Charges

Finder PCB Power Relay 24V AC Coil Voltage 10A Switching Current SPDT 40.31.8.024.0000

Name: Finder PCB Power Relay 24V AC Coil Voltage 10A Switching Current SPDT 40.31.8.024.0000
Brand: FINDER
SKU: 158998
Price: 7.45 USD
Availability: InStock



Category Power Relay Brand FINDER Condition New

Specifications

Country of Origin	India
Brand	Finder
Height	25mm
Length	29mm
Width	12.4mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	40
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Switching Current	10A
Terminal type	Solder
Standards/Approvals	RoHS
Coil Resistance	320Ω
Coil Voltage	24V ac
Switching DC Voltage	12V
Switching AC Voltage	400V ac
Coil Power	1.2W

Key Features

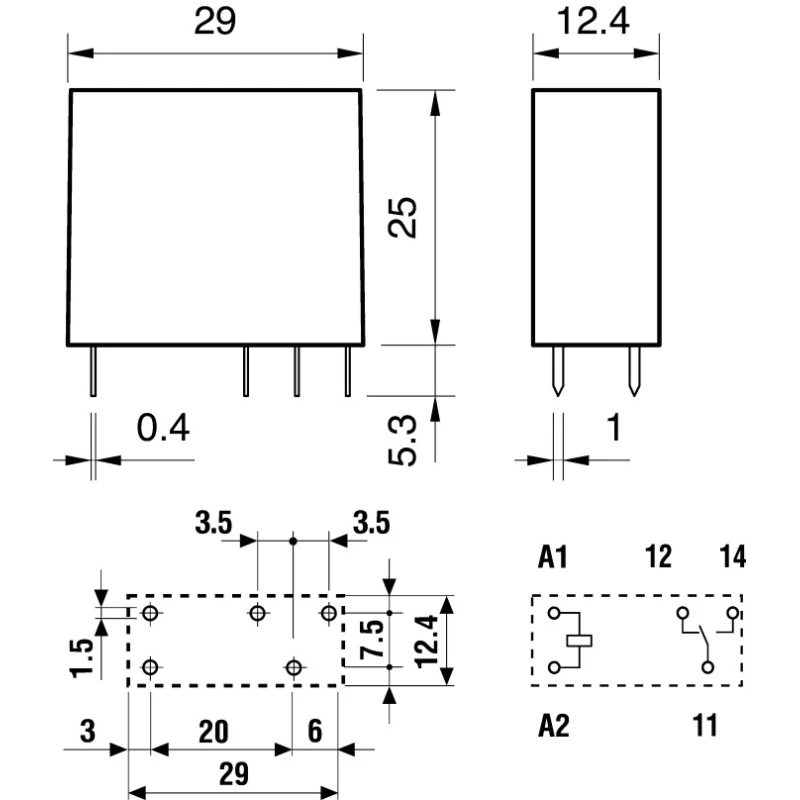

Compact design with dimensions 29mm length, 25mm height, and 12.4mm width suitable for PCB mounting.
High voltage isolation capability of 6kV for enhanced operational safety.
Durable silver alloy contacts provide reliable switching performance with a lifespan of 200,000 cycles.
Wide operating temperature range from -40°C to +85°C supports diverse industrial environments.
Low coil power consumption of 1.2W improves energy efficiency in control systems.
Supports switching AC voltage up to 400V and DC voltage up to 12V.
Equipped with solder terminal type for secure mounting on printed circuit boards.
RoHS compliant materials ensure environmentally responsible manufacturing.

Product Description

The Finder 40.31.8.024.0000 PCB Power Relay is designed with a 24V AC coil voltage and features a single pole double throw (SPDT) contact configuration, supporting a switching current of 10A, ideally suited for precise automation applications.

Its compact physical dimensions of 29mm length, 25mm height, and 12.4mm width enable efficient PCB mounting in space-constrained electronic assemblies. The relay offers robust high-voltage isolation of 6kV between coil and contacts, ensuring safety and compliance with rigorous industry standards.

Constructed with silver alloy contacts, this relay guarantees high reliability and a long operational life of up to 200,000 electrical cycles. The coil power is efficiently low at 1.2W, minimizing power consumption in control circuitry.

Operating effectively within a broad temperature range from -40°C to +85°C, the relay performs reliably under harsh environmental conditions, making it suitable for industrial, medical, dental equipment, vending machines, and access control systems, such as door and gate openers.

The solder terminal type facilitates secure and durable mounting on printed circuit boards, optimizing assembly processes and long-term performance. Compliance with RoHS directives underscores the product's alignment with environmental regulations.

Compact design with PCB mount suitability. High 6kV voltage isolation for safety. Durable silver alloy contacts. Long life span of 200,000 cycles. Wide operating temperature range. Low coil power consumption (1.2W). Supports AC up to 400V and DC up to 12V switching.

Solder terminal type for secure PCB mounting. RoHS compliant materials.

This Finder power relay is a reliable and compact solution ideal for various industrial automation, control panel systems, electronic circuit boards, medical and dental instruments, vending machines, and access control applications.
