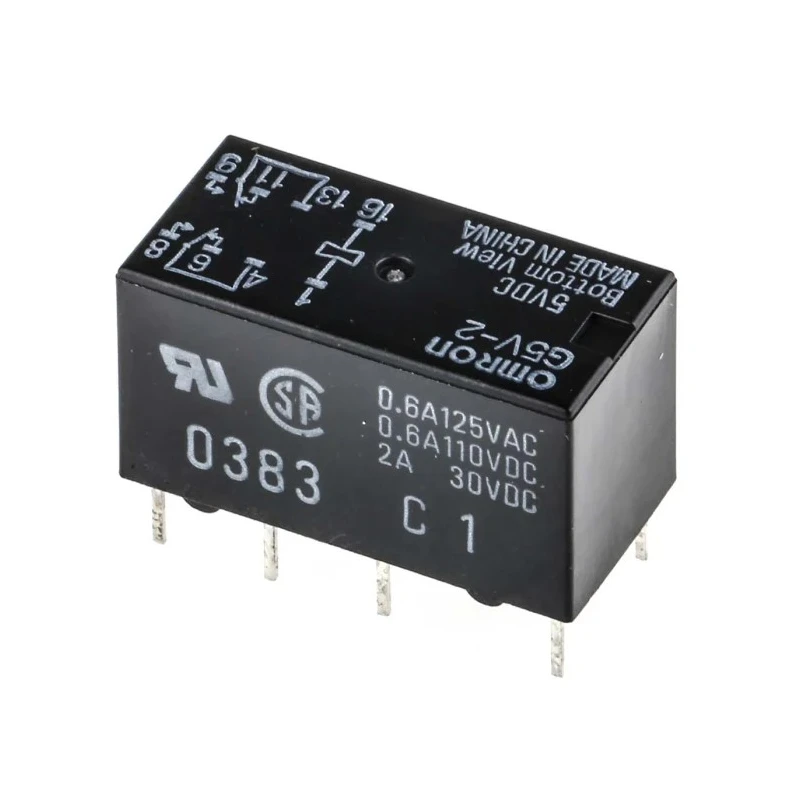

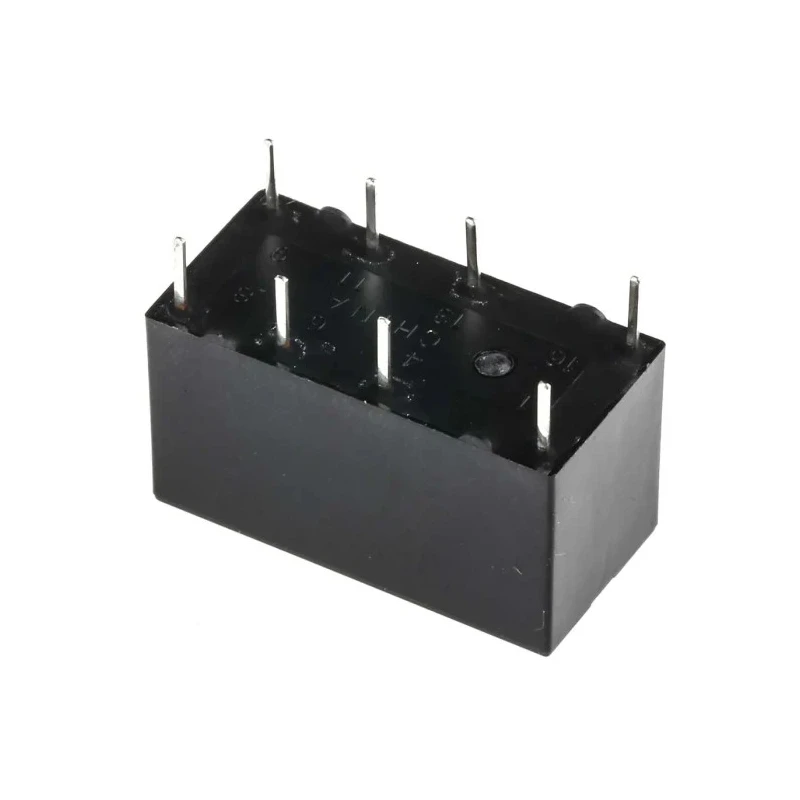

Omron PCB Signal Relay 5V DC Coil 2A DPDT G5V-2 DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11.5mm |
| Length | 20.2mm |
| Model | G5V-2 DC5 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | MT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 50Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 500mW |
| RS PRO PCB Mount Non-Latching Relay, 5V dc Coil, 2A Switching Current, DPDTBrand | RS PRO |
| Panasonic PCB Mount Latching Relay, 5V dc Coil, DPDTBrand | Panasonic |
Key Features
- Non-latching DPDT relay with 5V DC coil voltage and 2A switching current.
- Completely sealed miniature package for reliable protection.
- Gold-plated contacts and PCB solder terminal mounting.
- Switching voltage up to 125V AC/DC with max switching power of 62.5 VA.
- Operating temperature range of -25°C to 70°C.
- Low coil resistance of 50 ohms with power consumption approximately 500 mW.
- High dielectric strength of 1000V AC between coil and contacts.
- Ideal for telecommunications, security, and signal switching applications.
Product Description
Omron G5V-2 DC5 PCB Signal Relay is a compact, non-latching DPDT relay designed for precise signal switching and control applications. Featuring a 5V DC coil and ability to handle switching currents up to 2A, this relay is ideal for use in telecommunication, security systems, and other electronic devices.

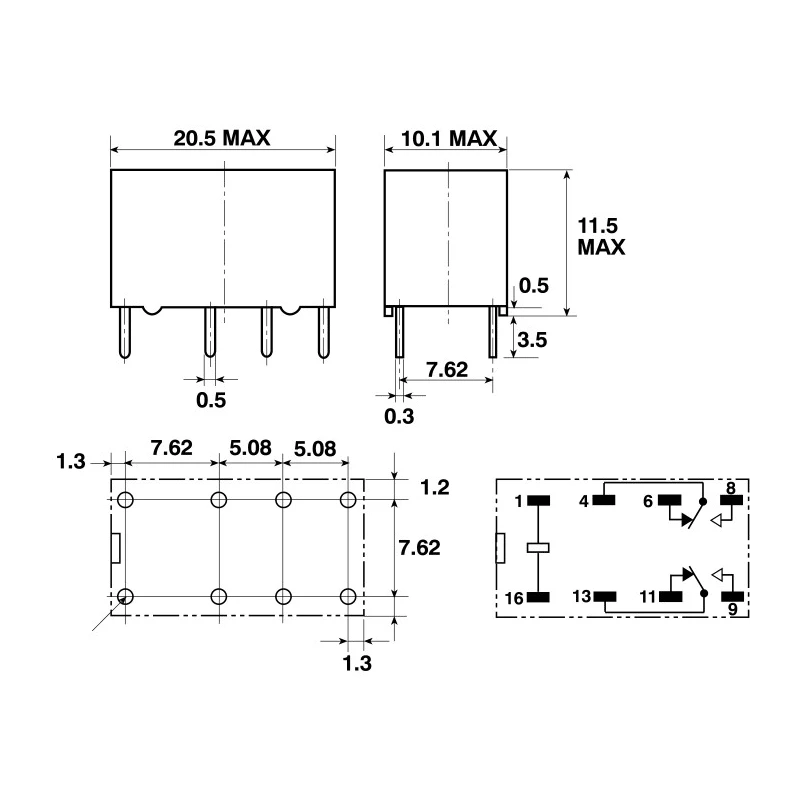

The relay is housed in a completely sealed package providing excellent protection against environmental factors. Its compact form factor, with dimensions of 11.5mm height, 10mm width, and 20.2mm length, allows easy integration onto PCBs with solder-type terminals.
The gold-plated contact material ensures reliable electrical connection and low contact resistance, rated at 50 milliohms. The relay supports switching voltages up to 125V AC and DC with a maximum switching power of 62.5 VA, rated loads of 0.5 A at 125 VAC and 2A at 30 VDC, and permits switching currents from micro-power signals to 2A.
Additional benefits include a coil resistance of 50 ohms, power consumption of approximately 500 mW, and compliance with RoHS standards for environmental safety. The dielectric strength between coil and contacts is rated at 1000V AC for one minute, ensuring electrical isolation and durability in industrial environments.
Operating temperature range from -25°C to 70°C permits reliable use in a variety of environmental conditions. The relay is vibration and shock resistant, designed to withstand daily industrial handling and extends service life in intense operational settings.
This relay provides a high-performance DPDT switching option for embedded electronics projects. Ideal for use in telecommunications, security equipment, and signal processing systems. Compact and sealed design enables use in harsh and sensitive applications.
Gold-plated contacts ensure longevity and superior electrical conductivity. Designed to meet international standards including RoHS, ensuring environmentally responsible manufacturing.
Omron products like this PCB Signal Relay can be found in a wide range of automation, control, and electronic applications. Browse the Electronics & Electricals category on EnvMart for more industrial relays and automation components from leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 2A.
The coil voltage for this relay is 5V DC.
It can handle switching voltages up to 125V AC or DC.
The relay has dimensions of 11.5mm in height, 10mm in width, and 20.2mm in length.
This relay is designed for PCB mounting with solder terminals.
The coil resistance is 50 ohms.
The power consumption is approximately 500 mW.
The operating temperature range is from -25°C to 70°C.
The dielectric strength between the coil and contacts is rated at 1000V AC for one minute.
The contacts are made of gold-plated material, ensuring reliable electrical connections.
Yes, it complies with RoHS standards for environmental safety.
This relay is ideal for telecommunications, security systems, and signal switching applications.
