Finder Power Relay 12V DC Coil 10A Switching Current SPDT 40.31.7.012.0000

Free Delivery in India | Lowest Global Shipping Charges

Finder Power Relay 12V DC Coil 10A Switching Current SPDT 40.31.7.012.0000

Name: Finder Power Relay 12V DC Coil 10A Switching Current SPDT 40.31.7.012.0000
Brand: FINDER
SKU: 157646
Price: 6.16 USD
Availability: InStock



Category Power Relay Brand FINDER Condition New

Specifications

Country of Origin	Italy
Brand	Finder
Height	25mm
Length	29mm
Width	12.4mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	40
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Switching Current	10A
Terminal type	Solder
Standards/Approvals	RoHS
Coil Resistance	300Ω
Coil Voltage	12V dc
Switching DC Voltage	5V dc
Switching AC Voltage	5V ac
Coil Power	500mW
PCH Relay,1CO,10A 120ac,12dc 400mWBrand	TE Connectivity

Key Features

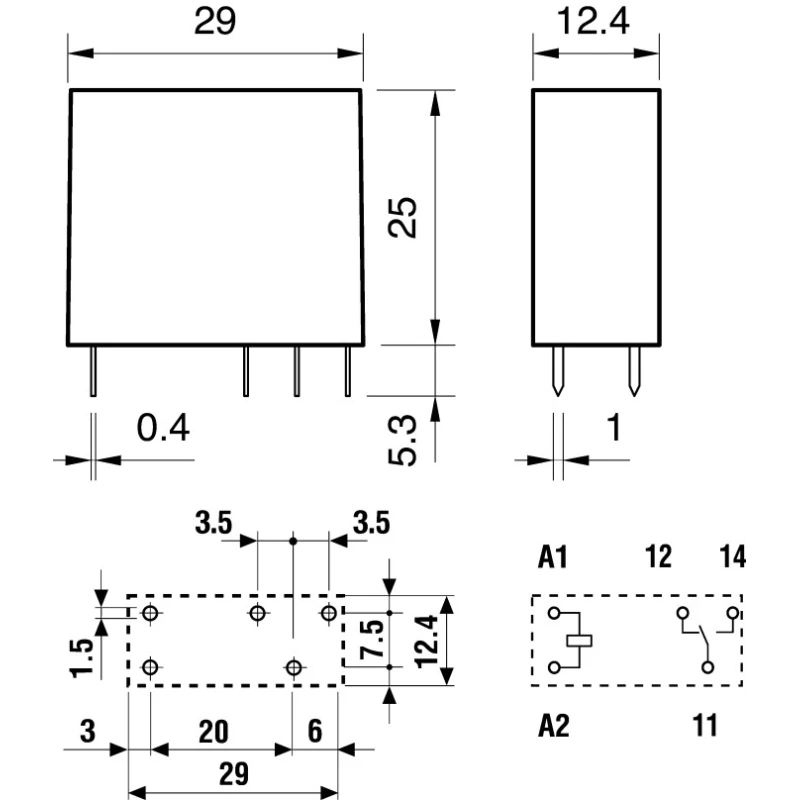

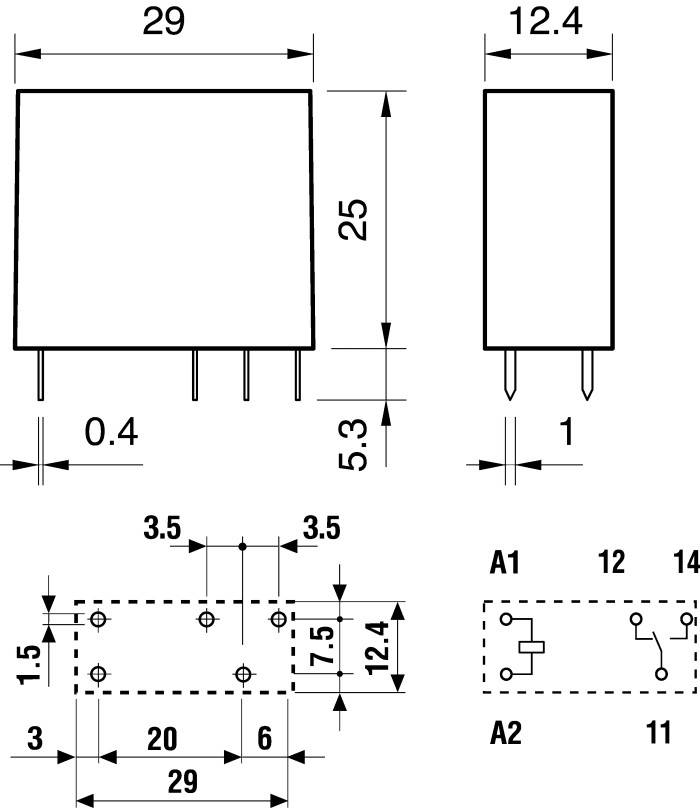

Compact design with dimensions 29mm length, 25mm height, and 12.4mm width.
SPDT contact configuration supports flexible switching applications.
Coil resistance of 300Ω ensures efficient power utilization and reliable actuation.
High isolation of 6kV between coil and contact enhances operational safety.
Operates reliably in temperatures from -40°C to 85°C for harsh environments.
Constructed with AgNi silver alloy contacts for excellent conductivity and durability.
Designed for PCB solder terminal mounting with RoHS compliance for environmental safety.
Supports a switching power of up to 2kVA and switching voltage of 400V AC suitable for industrial use.

Product Description

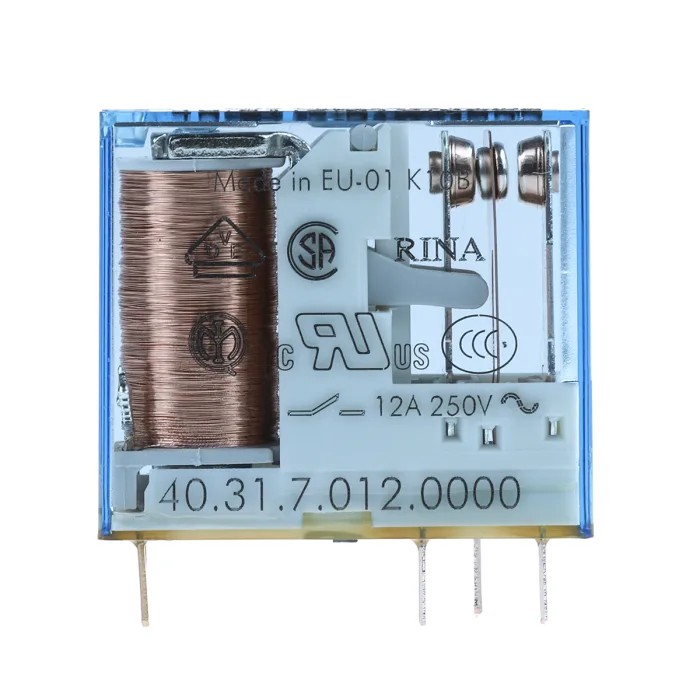

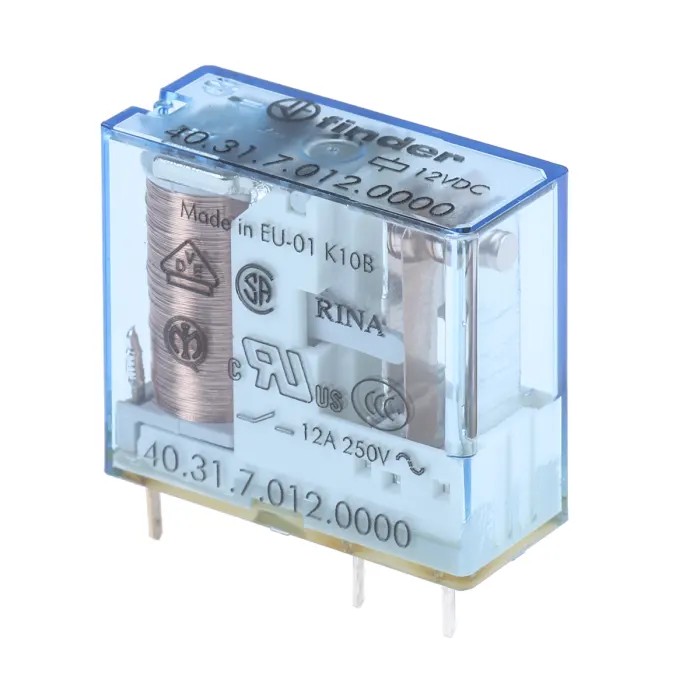

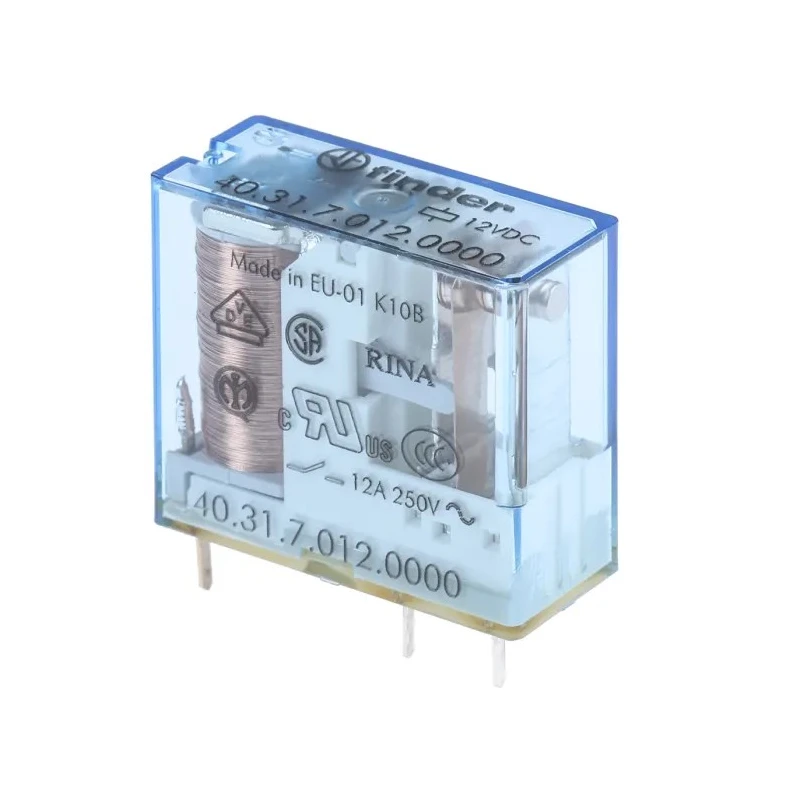

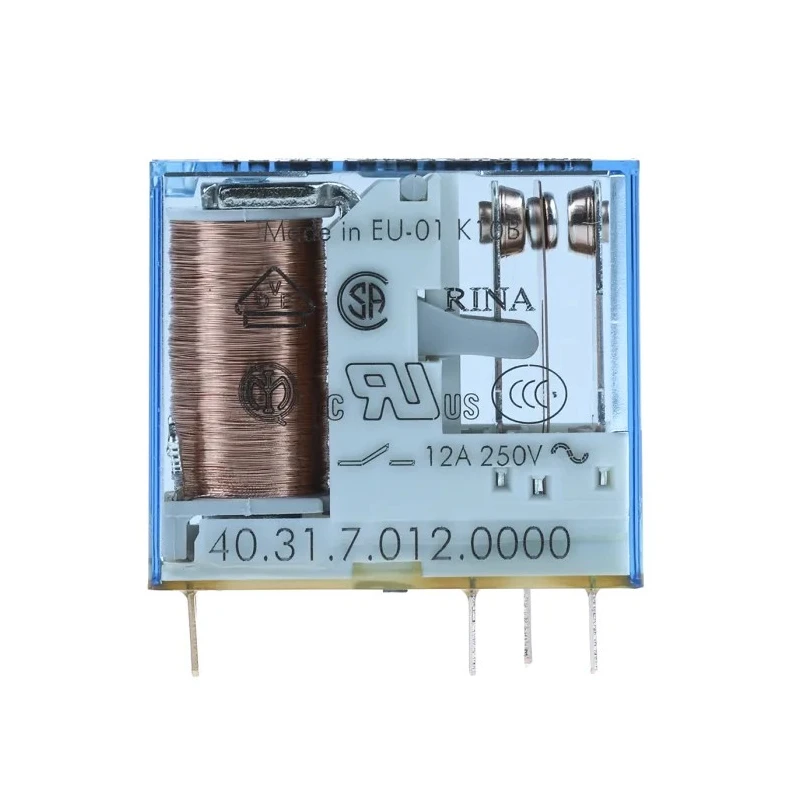

Finder 40.31.7.012.0000 Power Relay is a miniature PCB mount relay engineered for reliable control in various industrial and commercial applications. Operating with a 12V DC coil voltage and capable of switching up to 10 amperes current, this SPDT relay offers flexible switching solutions in a compact form factor with dimensions of 29mm length, 25mm height, and 12.4mm width.

The relay features a coil resistance of 300 ohms which optimizes power consumption while ensuring effective coil actuation. Its robust AgNi silver alloy contacts offer superior conductivity and durability, making the relay suitable for high switching power of 2kVA and capable of handling up to 400V AC switching voltage for both AC and DC applications. The device includes a high isolation voltage of 6kV between coil and contacts to protect sensitive circuitry.

Designed for solder-type PCB terminal mounting, the relay is RoHS compliant and built to endure operating temperature ranges from -40°C to +85°C. Longevity is assured with a mechanical life expectancy reaching 10 million cycles, reducing maintenance and replacement needs.

Compact dimensions fit tight PCB layouts effectively. SPDT configuration allows for versatile switching control. High isolation voltage ensures operational safety. Durable silver alloy contacts for reliable conductivity.

Wide operating temperature range supports harsh environments. RoHS compliant for environmental safety. Long lifecycle reduces total cost of ownership. Suitable for a broad range of industrial and electronic applications including medical control panels and vending machines.

This relay is ideal for industrial, electronic circuit board, commercial automation, and HVAC applications requiring reliable, compact, and high-performance switching components. Its design supports precise control in demanding environments, contributing to safety and efficiency.
