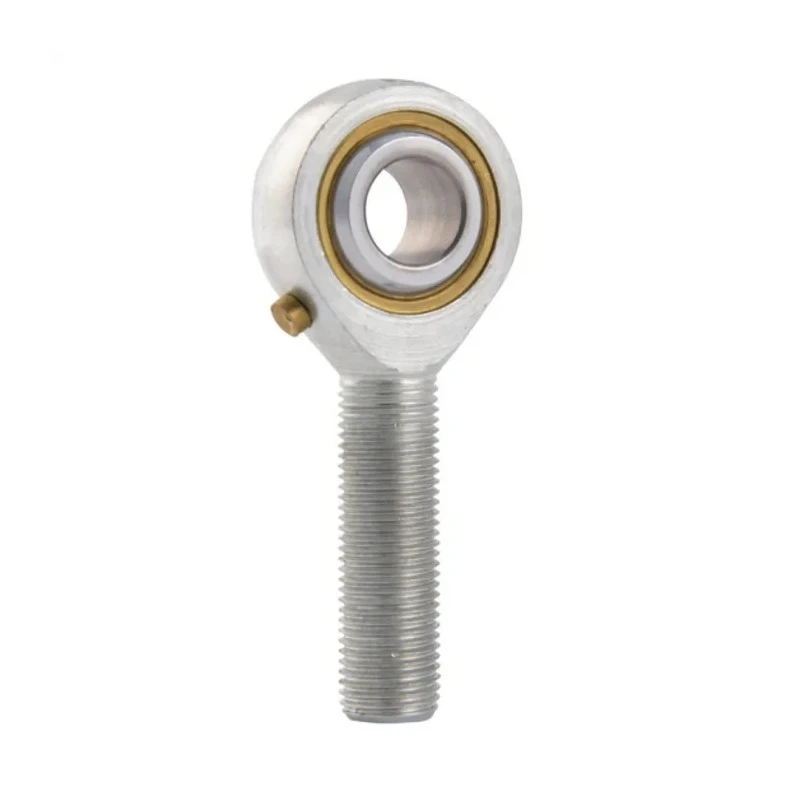

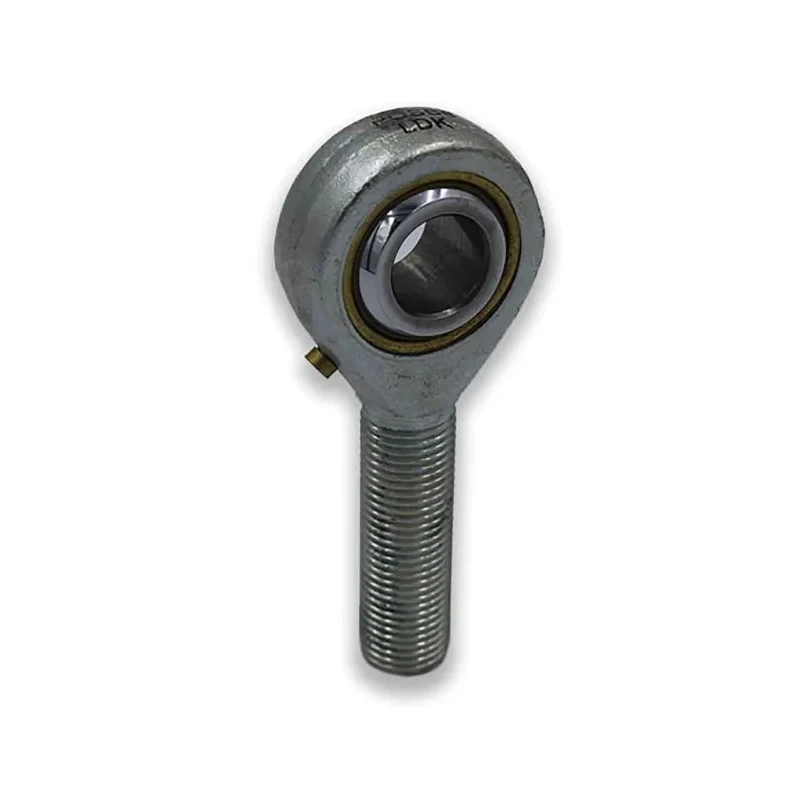

LDK Carbon Steel Rod End Bearing, UNF Thread, 15.88mm Bore, Left Hand Thread POSB10L

LDK POSB10L Carbon Steel Rod End Bearing is specially engineered for high-performance rotary bearing applications requiring exceptional durability and precision. Featuring a 15.88mm bore diameter, this rod end is designed with a male UNF thread in a left hand direction providing secure connection in demanding environments.

The ball component is manufactured from AISI 52100 bearing steel, heat treated to a minimum hardness of HRC56, precision ground, and polished hard chromium plated for superior wear resistance and prolonged service life. The body is crafted from carbon steel with clear zinc plating to resist corrosion and harsh industrial conditions.

The race is made from brass, while sliding contact surfaces combine steel and brass materials, ensuring smooth movement and reliable performance under dynamic and static load conditions rated at 18kN and 26.7kN respectively.

This rod end's outside diameter measures 38.1mm and its overall width is 85.73mm, designed to fit a variety of mechanical linkages and fluid power systems in industrial machinery and construction equipment. Its left hand thread orientation and male connection gender make it appropriate for specialized assembly needs where standard right hand threads are unsuitable.

The product is manufactured in China and meets the rigorous standards required for industrial mechanical components, although no specific approvals or certifications are referenced.

Constructed from carbon steel body with clear zinc plating for corrosion resistance. Ball made of AISI 52100 bearing steel, heat treated and hard chromium plated for longevity. Features left hand thread direction with male connection gender.

Equipped with brass race and steel/brass sliding contact surfaces for smooth operation. Designed to withstand dynamic loads of 18kN and static loads of 26.7kN. Outside diameter measures 38.1mm with an overall width of 85.73mm.

Suitable for use in industrial mechanical and fluid power applications.

This rod end bearing is ideal for applications in industrial machinery, fluid power equipment, automotive assemblies, and construction machinery requiring resilient and precise connection components. EnvMart offers a range of Rod End Bearings including this high-quality LDK POSB10L model for professionals seeking reliable parts with proven durability.
