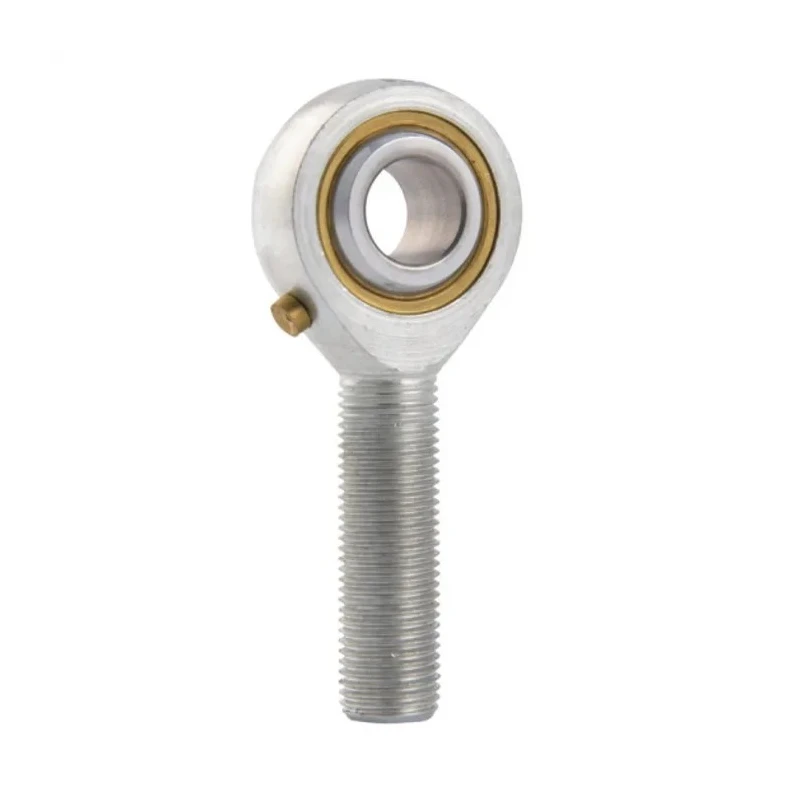

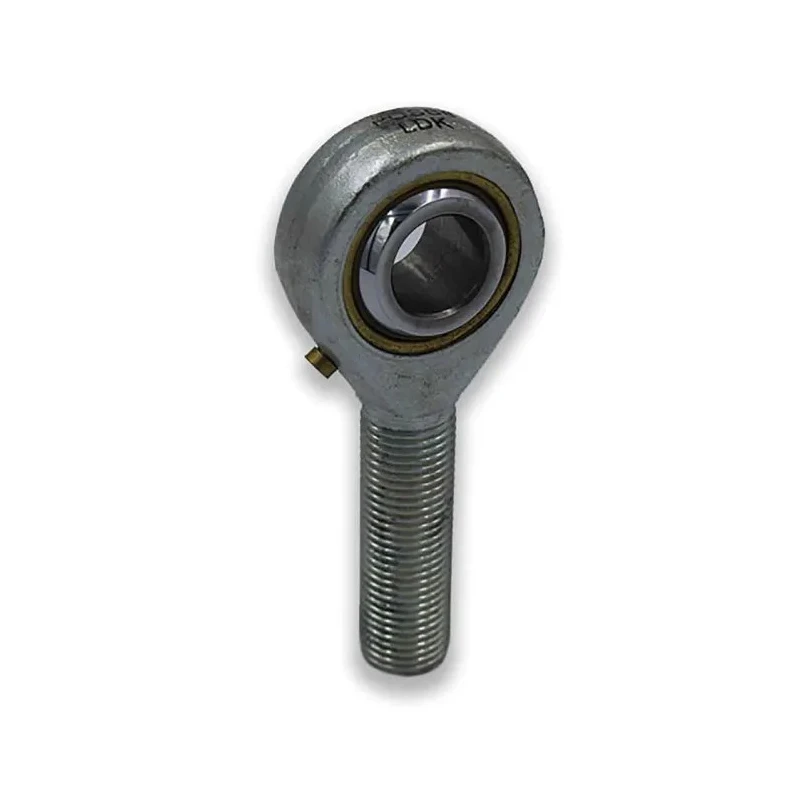

LDK Carbon Steel Rod End Bearing UNF Thread 19.05mm Bore Diameter POSB12

LDK POSB12 Carbon Steel Rod End Bearing UNF thread with a precision 19.05mm bore is engineered for mechanical and industrial applications requiring reliable rotary motion components.

The carbon steel body features clear zinc plating to provide excellent corrosion resistance, enhancing the longevity of the rod end under challenging environmental conditions. The bearing ball is manufactured from heat-treated AISI 52100 bearing steel, precision ground and polished, with a hardness rating of HRC56 minimum and coated with hard chromium plating for superior wear resistance.

This rod end bearing is designed with a UNF threaded male connection, compatible with a wide range of mechanical assemblies. The race component is made from brass, paired with sliding contact surfaces of steel and brass materials to ensure smooth operation and reduce friction in rotary bearing applications.

With a dynamic load rating of 27kN and a static load rating of 36.6kN, this rod end bearing is highly capable of handling both dynamic and static mechanical stresses. The product dimensions include an outside diameter of 44.45mm and an overall width of 95.25mm, making it suitable for diverse rotary bearing and housing unit assemblies.

Manufactured in China, this rod end bearing offers high quality and precision for use in industrial machinery, fluid power systems, construction equipment, and manufacturing applications.

The bearing features a corrosion-resistant carbon steel body with clear zinc plating. Ball constructed from hardened, polished, and chromium-plated AISI 52100 bearing steel. Strong brass race complements steel/brass sliding contact surfaces for smooth operation.

Designed with a UNF male threaded connection for secure assembly. Suitable for rotary bearing and housing unit applications in industrial environments. Dynamic and static load ratings of 27kN and 36.6kN respectively ensure robust performance.

Precision bore diameter of 19.05mm with an outside diameter of 44.45mm. Overall width dimension is 95.25mm for compatibility with various mechanical designs.
