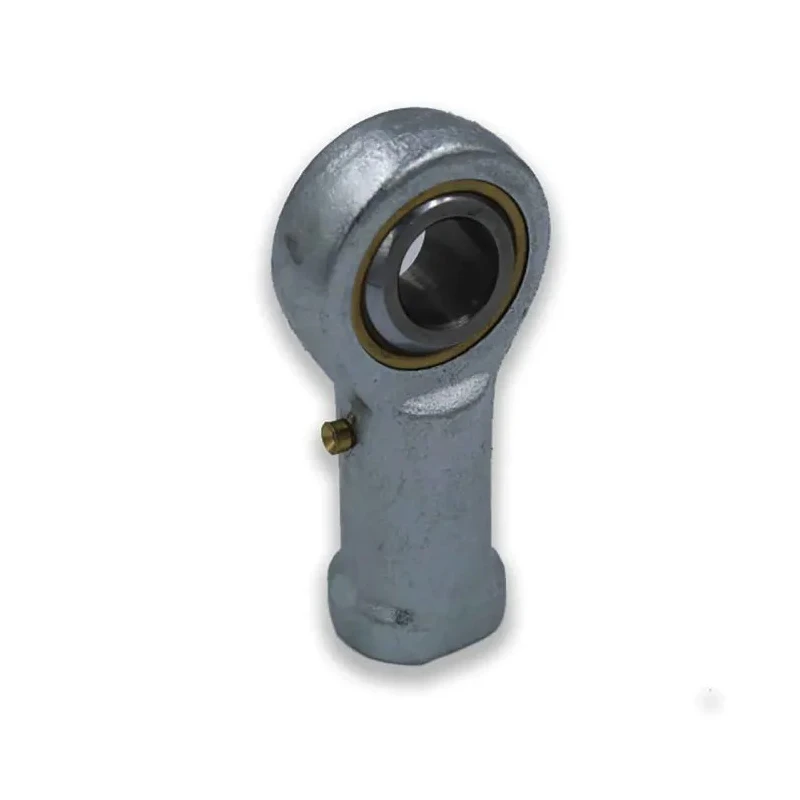

LDK Carbon Steel Rod End Bearing Female 6.35mm Bore UNF Left Hand Thread PHSB4L

LDK PHSB4L Carbon Steel Rod End Bearing features a 6.35mm bore diameter and UNF female thread with left hand thread direction. Its carbon steel body is clear zinc plated for corrosion protection, ensuring durability in demanding environments.

The bearing ball is precision ground and polished from heat-treated AISI 52100 steel with a hardness rating of HRC56 minimum, coated with hard chromium for superior wear resistance. Brass races and steel/brass sliding contact surfaces enhance sliding action and operational reliability.

With a dynamic load rating of 4.8kN and static load rating of 11.2kN, this rod end is designed to withstand significant mechanical stresses. The overall width of 42.85mm and outside diameter of 19.05mm provide compatibility with a broad range of equipment.

This rod end bearing is suitable for applications in industrial machinery, mechanical assemblies, automotive, and fluid power systems where dependable rotary motion support is essential. Its left hand thread and female connection gender enable specific assembly configurations.

Manufactured with no certifications listed and originating from China, the product meets standard mechanical component quality practices but does not claim specialized approvals. The rod end has a 6.35mm bore diameter for shaft fitting.

Carbon steel body is zinc plated for durability. Ball is made of heat-treated AISI 52100 bearing steel with chromium plating. Dynamic load rating of 4.8kN ensures operational capacity. Static load rating of 11.2kN supports high stress.

Thread standard is UNF with female connection. Thread direction is left hand for specific assembly needs. Sliding contact surfaces composed of steel and brass optimize wear. Overall width is 42.85mm with an outside diameter of 19.05mm.
