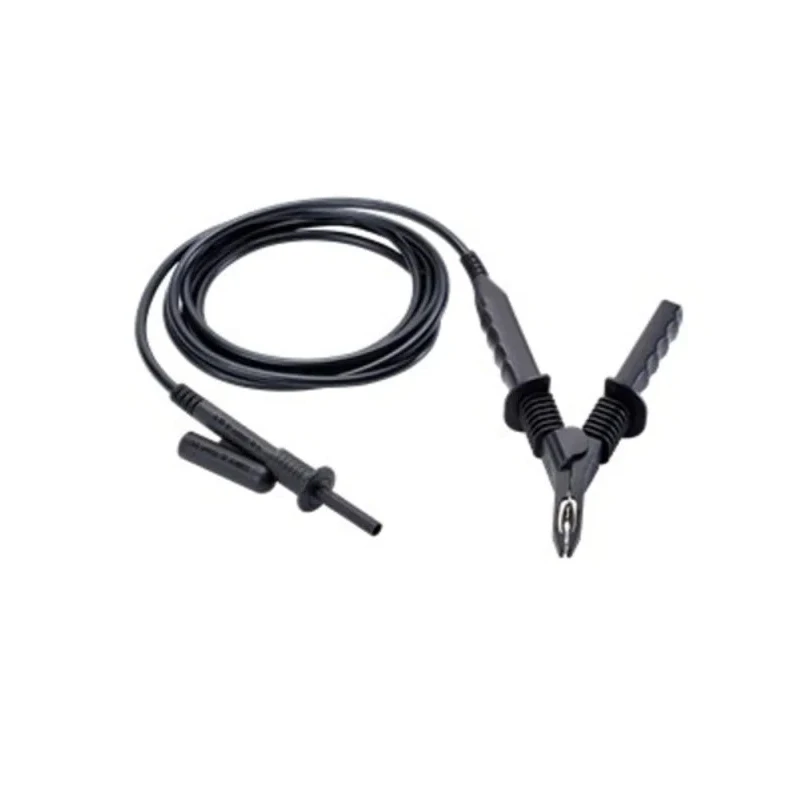

Chauvin Arnoux Insulation Tester HV Test Lead Set for CA 6547 CA 6549 CA 6545 CA 6505 P01295514

Chauvin Arnoux P01295514 Insulation Tester HV Test Lead Set is a high-quality accessory designed for professional electrical insulation testers including models CA 6547, CA 6549, CA 6545, and CA 6505. This lead set supports insulation testing by providing a durable and safe connection to the device under test with a current rating up to 10A, ensuring reliable operation within electrical test and measurement environments.

The piggyback jacks on these leads are designed with safety in mind; the black lead's piggyback jack connects to the internal braid shielding, while the blue lead's jack connects directly to the core conductor. This configuration supports precise measurement and reduces electrical interference. The crocodile clips have a wide clamping range from 1 to 34mm in diameter, or can clamp onto bars up to 12mm thick, making this lead set versatile in various applications.

Built to meet CE standards and certified for safety, the set features double insulation that assures user protection during high voltage tests. The temperature tolerance range from -10°C to +50°C allows the leads to be used comfortably across different working environments from laboratory to industrial fieldwork.

These leads are an essential accessory in electrical test and measurement, especially suited for use in electrical maintenance, repair, and quality control in industries such as manufacturing, HVAC, and electrical installation. Their robust construction and compliance with safety standards make them a reliable choice for extended use.

The leads are rated for up to 10A current capacity. Piggyback jacks are limited to 15mA for safety. The black lead's piggyback jack connects to internal shielding braid. The blue lead (0.3m or 0.5m) piggyback jack connects to the core wire.

Crocodile clips clamp from 1 to 34mm diameter or 12mm bar thickness. The leads feature double insulation for enhanced user protection. Suitable for operating temperatures between -10°C and +50°C. Lead color is black for clear identification.
