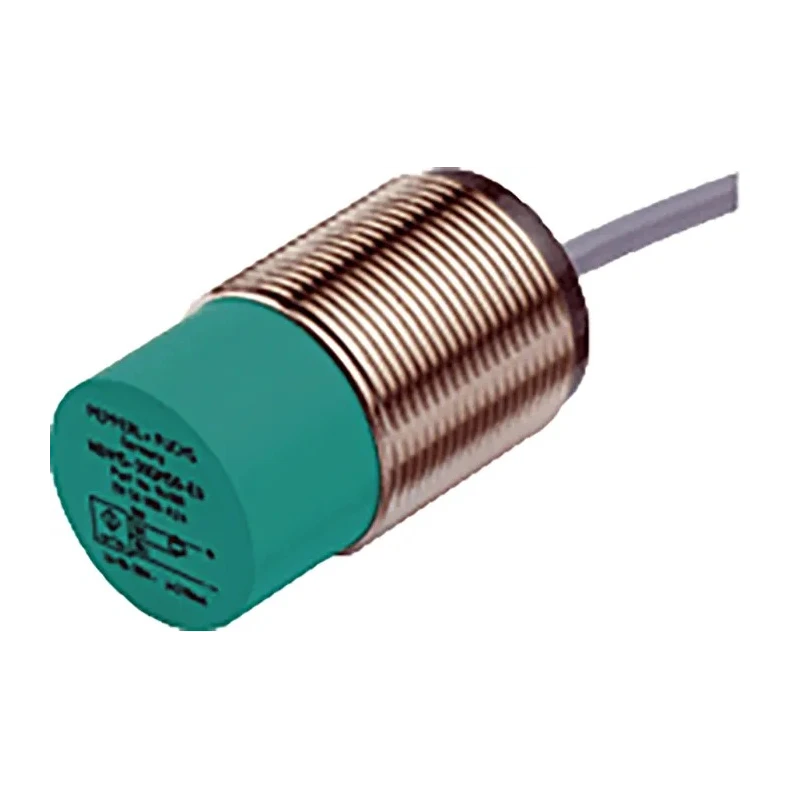

Pepperl + Fuchs Threaded Barrel Inductive Proximity Sensor M30 x 1.5, 36V, 25 mm Detection Range NBN25-30GM50-E2

Pepperl + Fuchs NBN25-30GM50-E2 is a high-performance threaded barrel inductive proximity sensor designed for industrial automation and control applications. It offers reliable detection of mild steel objects within a 25 mm range, powered by a maximum supply voltage of 36V DC.

The sensor features a robust brass housing coated with white bronze, ensuring high resistance to corrosion and mechanical stress. Its IP68-rated enclosure guarantees full protection against dust ingress and prolonged immersion in water, making it suitable for rugged industrial environments.

Equipped with a non-flush mounting style and cable terminal, this sensor is easy to install and integrate into existing setups. It functions effectively across a wide temperature range from -40°C up to 85°C, supporting stable operation under varying conditions.

This model supports high-speed switching with frequencies up to 400 Hz and offers a PNP output type with a switching current capacity of 200 mA, ideal for fast, accurate object sensing in automated processes. The sensor's dimensions include a length of 50 mm, width of 30 mm, and depth of 30 mm.

The NBN25-30GM50-E2 complies with multiple international certifications such as CCC, cCSAus, CE, cULus, and international standards EN 60947-5-2 and IEC 60947-5-2, ensuring dependable safety and performance standards.

Offers a maximum detection range of 25 mm for mild steel materials. Constructed with brass white bronze coated housing for durability. Rated IP68 for high dust and water resistance in harsh environments. Features a non-flush mount type with cable terminal connection.

Operates reliably between -40°C and 85°C temperature range. Unshielded sensor type with a switching frequency up to 400 Hz. Provides a PNP output with a switching current of 200 mA. Length of the sensor is 50 mm with 30 mm width and 30 mm depth dimensions.

Certified to relevant standards including CCC, cCSAus, CE, cULus, EN 60947-5-2, and IEC 60947-5-2.

This Inductive Proximity Sensor is ideal for applications in industrial automation, manufacturing, machinery, and process control requiring non-contact detection of metallic objects. It ensures precise position sensing, speed monitoring, and safety interlocking with high reliability and longevity under challenging industrial conditions.
