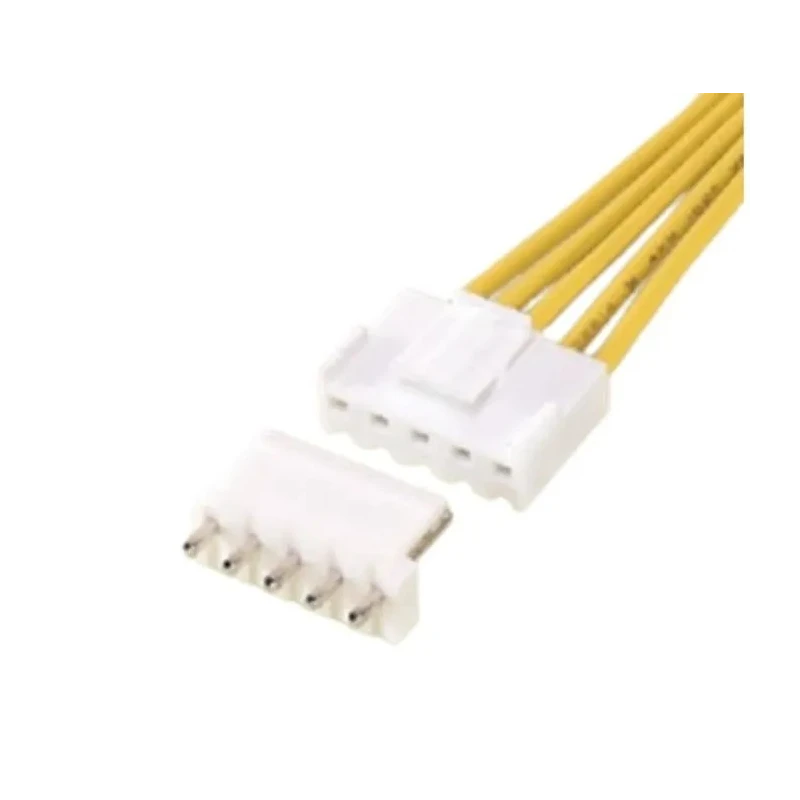

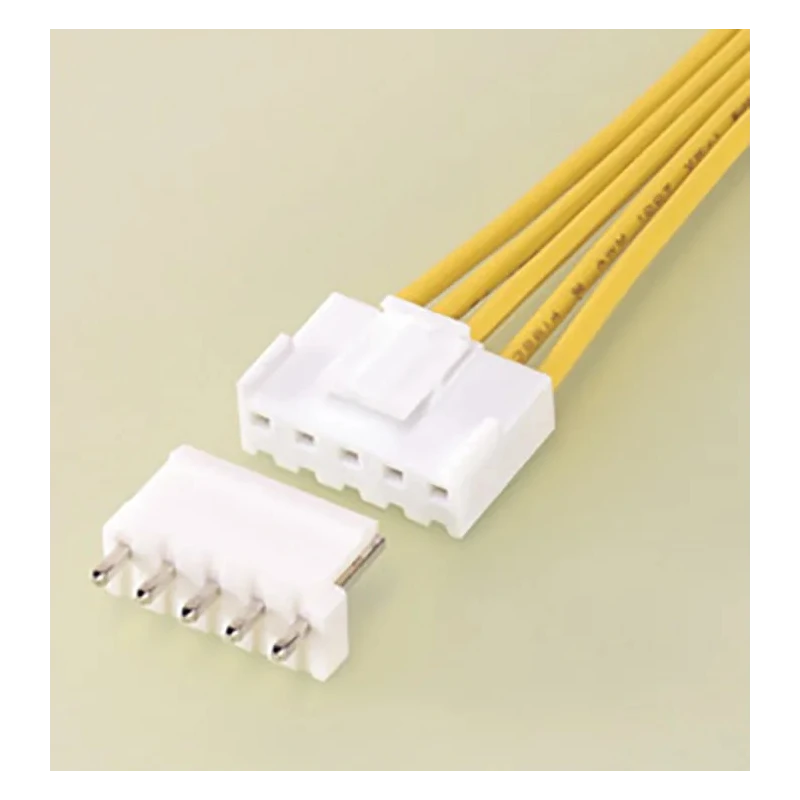

JST VH Female Connector Housing 3.96 mm Pitch 5 Way 1 Row Straight VHRR-5N
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Orientation | Straight |
| Length | 19.74mm |
| Model | VHRR-5N |
| Width | 10.5mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | VH |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| For Use With | VH Disconnectable Crimp Style Connectors |
| Number of Contacts | 5 |
| Connector Gender | Female |
Key Features
- This connector housing is designed for VH disconnectable crimp style connectors.
- The housing material is durable polyamide ensuring robustness.
- It features a lock mechanism that prevents loosening due to vibration and misinsertion.
- The compact design supports a large current carrying capacity of up to 10A.
- Its dimensions include a length of 19.74 mm and width of 10.5 mm with a mounting height of 16.5 mm.
- Manufactured in Japan, it is ideal for consumer electronic circuits requiring reliable power and signal connections.
- The single-row straight orientation facilitates easy cable mounting.
Product Description
JST VHRR-5N VH Female Connector Housing is a high-quality connector designed for reliable electrical connections in various consumer electronics applications. It features a 3.96 mm pitch and 5 contact positions arranged in a single row with a straight orientation suitable for cable mounting.
Constructed from durable polyamide, the housing ensures robustness and longevity under typical operating conditions. It includes a locking mechanism that secures the connector, preventing it from coming loose due to vibration and avoiding misalignment or reverse insertion, thus guaranteeing stable and safe connections in demanding environments.
The VH series connector is compact, with a mounting height of 16.5 mm, yet supports a large current carrying capacity of up to 10 amperes, making it suitable for power supply, signal, and output circuits. Its design incorporates proven box-shaped contacts from NH connectors, known for dependable performance across a variety of circuit types.
The connector housing has a length of 19.74 mm and width of 10.5 mm, making it a space-efficient component for PCB assemblies. Manufactured in Japan, this connector combines reliability with precise engineering standards.
Designed for VH disconnectable crimp style connectors ensuring compatibility. Lock mechanism safeguards against vibration and misinsertion. Compact design with large current capacity suitable for various electronics. Polyamide housing material ensures robust performance and durability.
Manufactured in Japan with strict quality standards.
This VH female Connector Housing is ideal for use in electronics manufacturing, industrial equipment, communications devices, automotive electronics, and various other applications requiring secure and compact connector solutions.
Explore EnvMart’s extensive selection of connectors and wire housings for all your industrial and electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 3.96 mm.
This model features 5 contact positions.
It supports a large current carrying capacity of up to 10A.
The housing is constructed from durable polyamide.
The dimensions are a length of 19.74 mm, a width of 10.5 mm, and a mounting height of 16.5 mm.
It supports cable mounting.
The orientation of this connector housing is straight.
It is designed for use with VH disconnectable crimp style connectors.
It is manufactured in Japan.
This model belongs to the VH series.
The connector gender is female.
It is ideal for use in consumer electronics, industrial equipment, communications devices, and automotive electronics.
