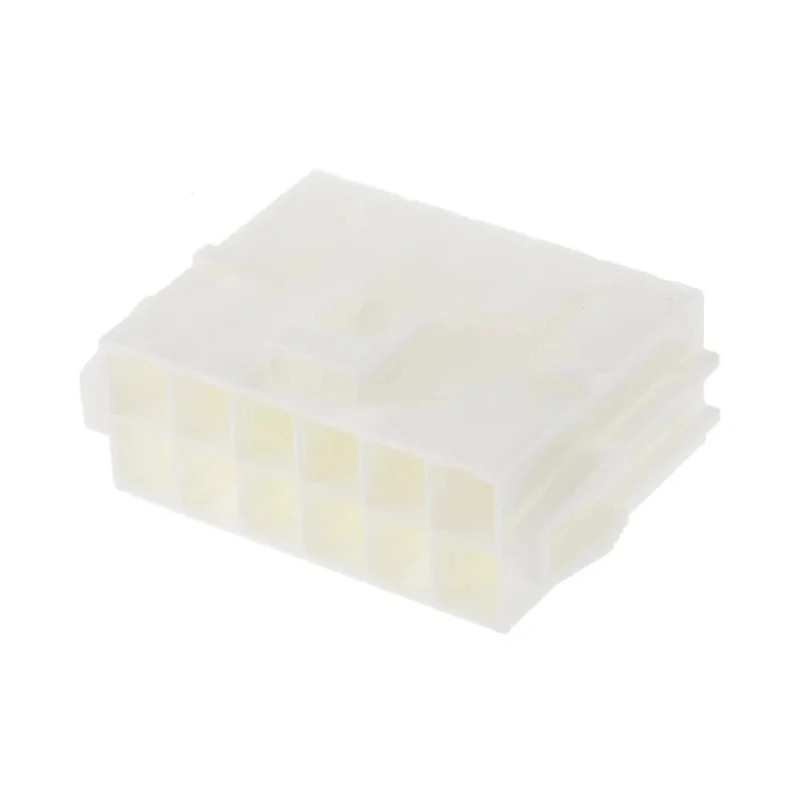

JST VL Series 6.2 mm Pitch 12 Way 2 Row Straight Female Connector Housing VLR-12V

JST VLR-12V female connector housing is a high-quality electronic component designed for wire-to-wire connections within high-power circuits. This Connector Housing features a 6.2 mm pitch, 12 contact positions in 2 rows, and is made from robust polyamide material ensuring durability and electrical insulation. It supports circuits requiring up to 20A current when paired with VL series crimp contacts.

The housing incorporates in-built lances enabling easy insertion and locking of contacts while preventing wire tangling or lance deformation. Internal and external locking mechanisms secure the mated connection, providing resistance to vibration or wire routing stress, ideal for industrial and manufacturing environments.

The compact design includes a space-saving panel lock suited for panel thicknesses ranging from 0.5 mm to 2.0 mm, making it an efficient choice for electronics assembly where space and durability are critical. Secondary retainers are available to ensure contacts are fully seated and prevent accidental disconnection.

Typical applications include industrial machinery, automotive wiring systems, power supplies, and electronic equipment requiring robust cable connectors. The polyamide construction guarantees reliability in harsh operating conditions, including varying temperatures and humidity levels.

Supports circuits requiring up to 20A current capacity. Features in-built housing lances for secure and easy contact retention. Includes inner and outer locking devices to prevent accidental disconnections. Space-saving panel lock design suitable for 0.5 to 2.0 mm panel thickness.

Constructed from durable polyamide material for long service life. Compatible with VL series pin contacts, sold separately. Secondary retainers available to ensure full contact seating. Dimensions: 45 mm length and 29.5 mm width.

Mount type is cable for wire-to-wire connection. Connector gender: female, with straight orientation. Explore the range of JST connectors and housings on EnvMart for trusted industrial electronic components suited for diverse applications.
