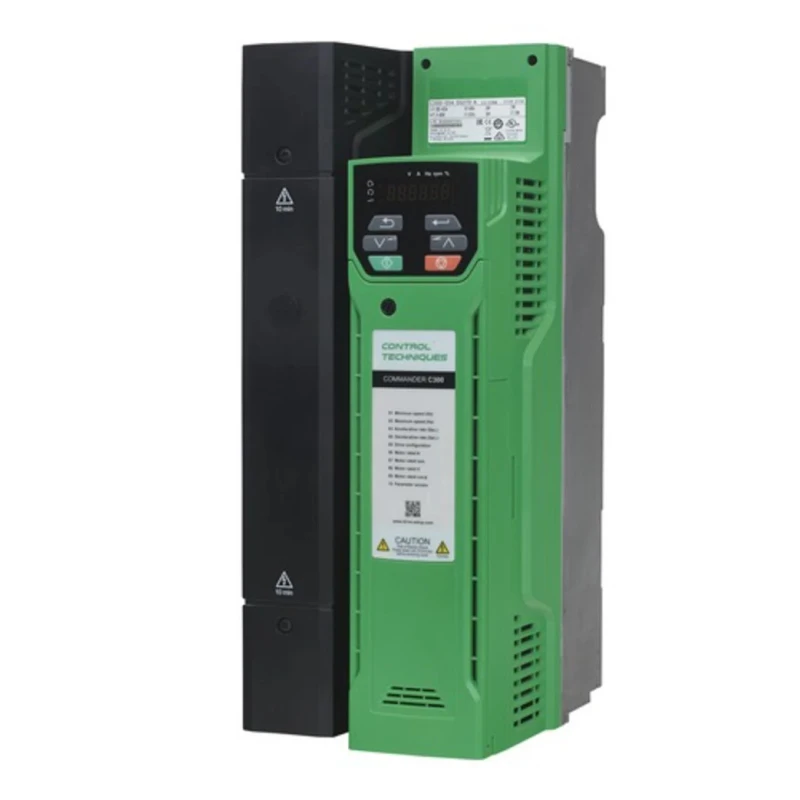

Control Techniques Inverter Drive Variable Speed 11 kW 3 Phase 480V 27A C300-05400270

Control Techniques C300-05400270 inverter drive is a high-performance, variable speed AC motor speed controller with a power rating of 11 kW designed for industrial automation and motor control applications. It supports three phase motor operation powered from supply voltages between 380V and 480V, delivering a maximum output current of 27A. The compact panel mount form factor fits into control cabinets with dimensions of 143mm length, 200mm width, and 391mm depth, rated with IP20 protection.

The drive provides output frequency up to 550Hz, allowing precise speed regulation over a wide range of applications. It operates reliably in ambient temperatures between -20°C and 40°C. Engineered with the latest energy-saving Better World claims, it helps reduce operational costs through efficient power management. The drive includes advanced features such as onboard PLC functionality and plug-in options for enhanced motor control and safety with Dual Safe Torque Off (STO).

This inverter drive conforms to international approvals including CE, cUL, EU directives, ISO standards, RCM, RoHS, and UL certifications, ensuring compliance with global industrial safety and environmental standards. It is engineered for robustness and reliability in demanding industrial, manufacturing, HVAC, and automation applications.

Manufactured in the United Kingdom, the Control Techniques C300 series inverter drive offers a simple commissioning process with just 4 parameter settings required to start. It supports easy motor pairing and performance optimization, making it ideal for diverse automation system integrations.

Supports motor power rating of 11 kW for robust industrial applications. Compatible with three phase AC motors operating between 380V and 480V. Maximum output current of 27A meets high torque and load demands. Panel mount with compact dimensions (143 x 200 x 391 mm) and IP20 protection rating.

Wide operating temperature range from -20°C to 40°C for versatile environments. Output frequency up to 550Hz enables precise variable speed control. Complies with CE, cUL, EU, ISO, RCM, RoHS, and UL standards. Includes onboard PLC and Dual Safe Torque Off (STO) for safety and advanced control.

Better World energy saving technology reduces energy consumption. Manufactured in the United Kingdom ensuring high quality manufacturing standards. Explore more Control Techniques Inverter Drives and automation products on EnvMart for reliable industrial and commercial motor control solutions.
