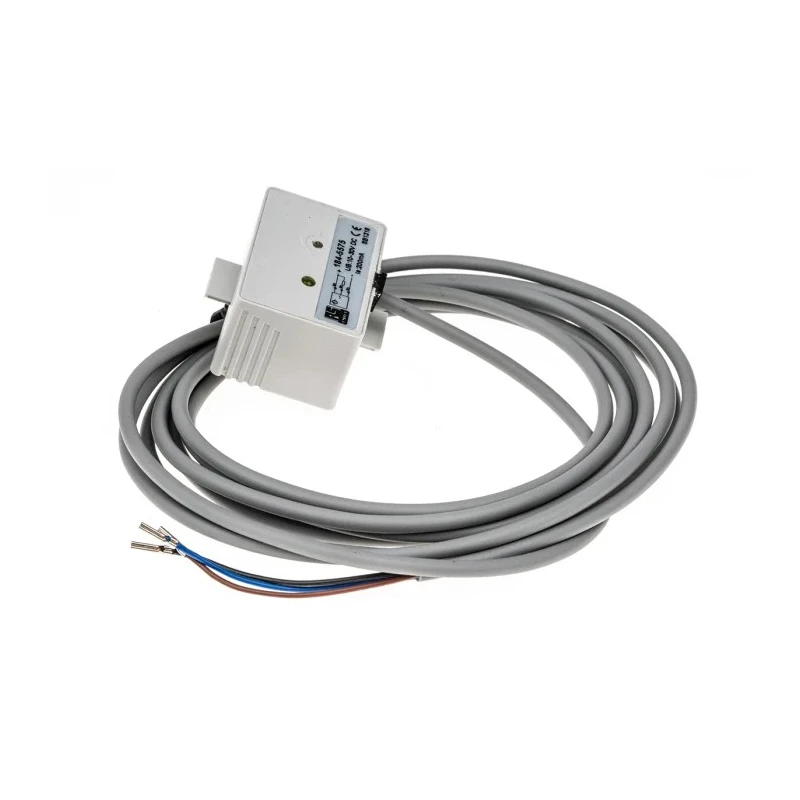

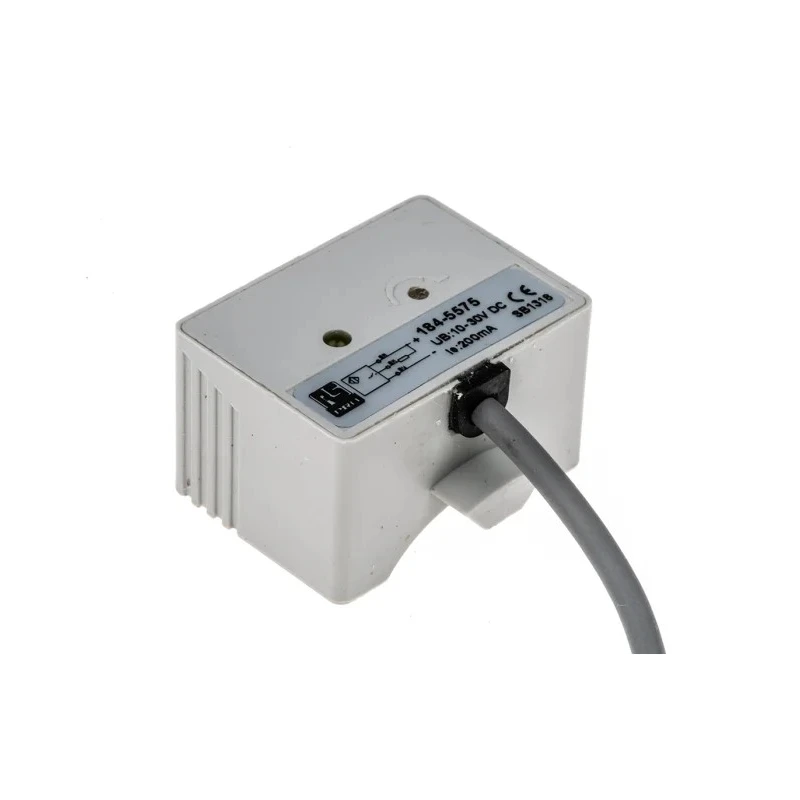

RS PRO Block Capacitive Proximity Sensor 26 mm NPN 200mA 30V 1000 V AC 30 V DC 184-5575
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Length | 34mm |
| Model | 184-5575 |
| Depth | 20mm |
| IP Rating | IP67 |
| Width | 33mm |
| Mount Type | Non-Flush |
| Housing Material | Polybutylene Terephthalate |
| Output type | NPN |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Switching Current | 200mA |
| Terminal type | Pre-Cabled |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 60Hz |
| Maximum AC Voltage | 1000V ac |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metallic and Non-Metallic Objects |
| Maximum Detection | 26mm |
Key Features
- Block style sensor with a compact length of 34mm and width of 33mm.
- IP67 rated for reliable operation in harsh environments.
- Non-flush mount type with pre-cabled terminal using a 2m PVC cable connector.
- Detects both metallic and non-metallic objects up to 26 mm range.
- Operates between temperatures of -10°C to 55°C.
- Housing constructed of durable Polybutylene Terephthalate (PBT) material.
- Unshielded sensor design for versatile sensing applications.
- Maximum switching frequency of 60Hz for responsive operation.
Product Description
RS PRO 184-5575 Block Capacitive Proximity Sensor is a high-quality sensor designed for industrial automation and control applications. It provides non-contact detection for a variety of objects, both metallic and non-metallic, by measuring changes in capacitance at the sensor face. With a compact block body style measuring 34 mm length, 33 mm width, and 20 mm depth, it is suitable for installations where space is limited.
This sensor features a robust Polybutylene Terephthalate housing and an IP67 ingress protection rating, ensuring durability and reliable performance even in harsh environments. The non-flush mount design extends its range to 26 mm for versatile object sensing.
The 184-5575 sensor operates with a maximum supply voltage of 30 V DC and can withstand up to 1000 V AC, switching currents up to 200 mA, making it compatible with various industrial control systems. It utilizes an NPN output transistor allowing sinking current output, and supports a switching frequency up to 60 Hz, making it suitable for fast and accurate object detection tasks.

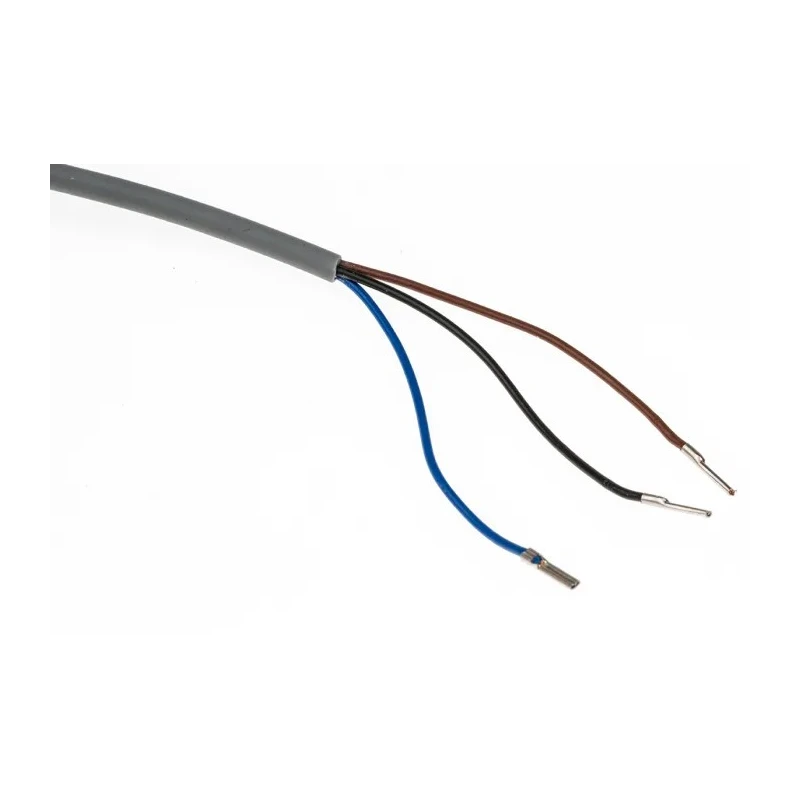

The sensor includes a 2-meter PVC cable pre-cabled terminal connection for easy integration into existing systems. Operating temperature range is from -10°C to 55°C, offering versatility across different industrial environments.
Typical uses include level sensing, material detection, quality control measurement of thickness or pressure, and automation where non-contact sensing of objects is required. It is well suited for manufacturing plants, laboratory automation, and process control systems.
Block style sensor with compact dimensions for space-sensitive installations. IP67 rated housing for protection against dust and water ingress. Non-flush mounting allowing increased sensing distance. Detects metallic and non-metallic materials effectively.
NPN output suitable for sinking current control circuits. Operates reliably across a wide temperature range. Robust PBT housing for industrial durability. High switching frequency supports rapid sensing applications. Pre-cabled 2m PVC connection cable simplifies installation.
Ideal for industrial automation, quality control, and measurement applications. Explore the comprehensive range of RS PRO sensors at EnvMart for your industrial and laboratory control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can detect both metallic and non-metallic objects up to a maximum range of 26 mm.
The sensor has a compact block body style with dimensions of 34 mm in length, 33 mm in width, and 20 mm in depth.
It has an IP67 rating, providing protection against dust and water ingress, suitable for harsh environments.
It features an NPN output type, allowing for sinking current output in control circuits.
The maximum supply voltage is 30 V DC, and it can withstand up to 1000 V AC.
This sensor operates effectively within a temperature range of -10°C to 55°C.
The sensor supports a maximum switching frequency of 60 Hz, enabling responsive operation for fast detection tasks.
No, this model is a non-flush mount type, allowing for increased sensing distance.
It can detect both metallic and non-metallic objects, making it versatile for various applications.
The housing is constructed from Polybutylene Terephthalate (PBT), providing durability for industrial use.
It includes a pre-cabled terminal connection with a 2-meter PVC cable for easy integration into systems.
Typical uses include level sensing, material detection, and quality control measurement in industrial automation.
