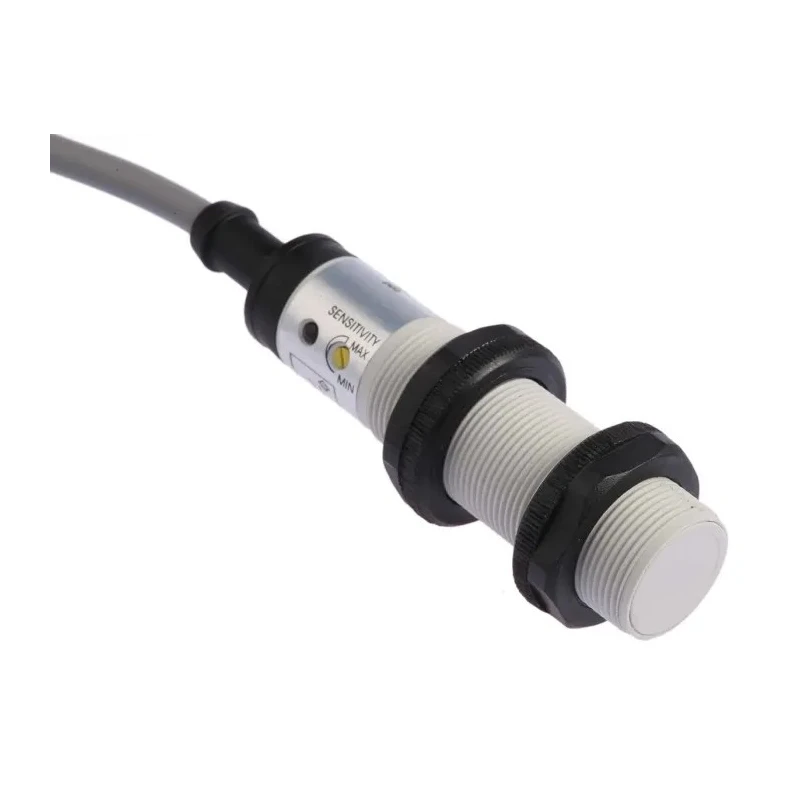

RS PRO Threaded Barrel Capacitive Proximity Sensor 8 mm Detection Range M18 x 1 Thread Size NPN 200mA 30V DC 1000V 184-5609

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Threaded Barrel Capacitive Proximity Sensor 8 mm Detection Range M18 x 1 Thread Size NPN 200mA 30V DC 1000V 184-5609

Name: RS PRO Threaded Barrel Capacitive Proximity Sensor 8 mm Detection Range M18 x 1 Thread Size NPN 200mA 30V DC 1000V 184-5609
Brand: RS PRO
SKU: 156608
Price: 88.95 USD
Availability: InStock



Category Capacitive Proximity Sensor Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Length	78mm
Model	184-5609
IP Rating	IP67
Mount Type	Non-Flush
Housing Material	Polybutylene Terephthalate
Output type	NPN
Series	RS PRO
Maximum Operating Temperature	70°C
Thread Size	M18 x 1
Minimum Operating Temperature	-25°C
Switching Current	200mA
Terminal type	Pre-Cabled
Body Style	Threaded Barrel
Maximum dc Voltage	30V dc
Shielding	Unshielded
Maximum Switching Frequency	50Hz
Maximum AC Voltage	1000V ac
Maximum Supply Voltage	30V
Materials Detected	Metallic and Non-Metallic Objects
Maximum Detection	8mm

Key Features

The sensor has a threaded barrel body style for easy mounting.
IP67 rated for protection against dust and water ingress.
Operates between -25°C to 70°C for versatile environmental conditions.
Non-flush mount type with a pre-cabled 2m PVC connection for flexible integration.
Offers a maximum switching frequency of 50Hz with NPN output type.
Constructed with durable Polybutylene Terephthalate housing for longevity.
Unshielded design suitable for broad sensing applications.
Detects objects by measuring changes in capacitance using advanced sensing technology.

Product Description

RS PRO 184-5609 Threaded Barrel Capacitive Proximity Sensor is a high-quality sensor essential for industrial automation and measurement applications. The sensor features an 8mm maximum detection distance and an M18 x 1 thread size, making it convenient to install in diverse manufacturing and processing environments.

Its capacitive sensing technology allows it to detect both metallic and non-metallic objects without contact, using changes in capacitance caused by the presence or absence of materials. The robust Polybutylene Terephthalate housing provides excellent protection and durability in harsh industrial settings.

Its IP67 rating ensures protection against dust ingress and water jets, allowing operation in challenging environments including industrial manufacturing, laboratory settings, and quality control processes.

The sensor outputs an NPN signal with a maximum switching current of 200mA and supports up to 50Hz switching frequency. It operates safely within a supply voltage of 30V DC and tolerates up to 1000V AC in voltage peaks.

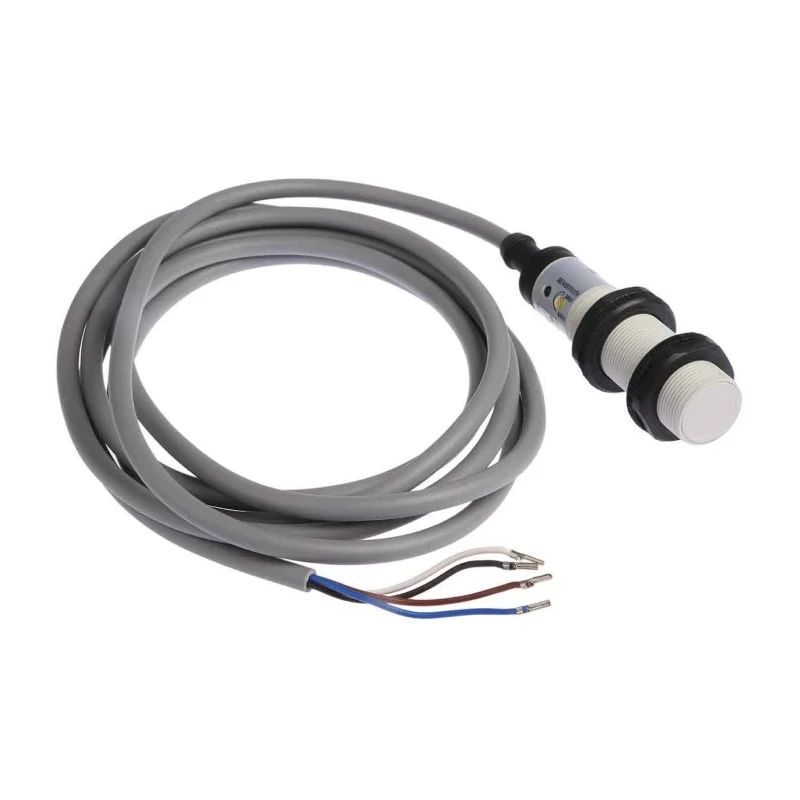

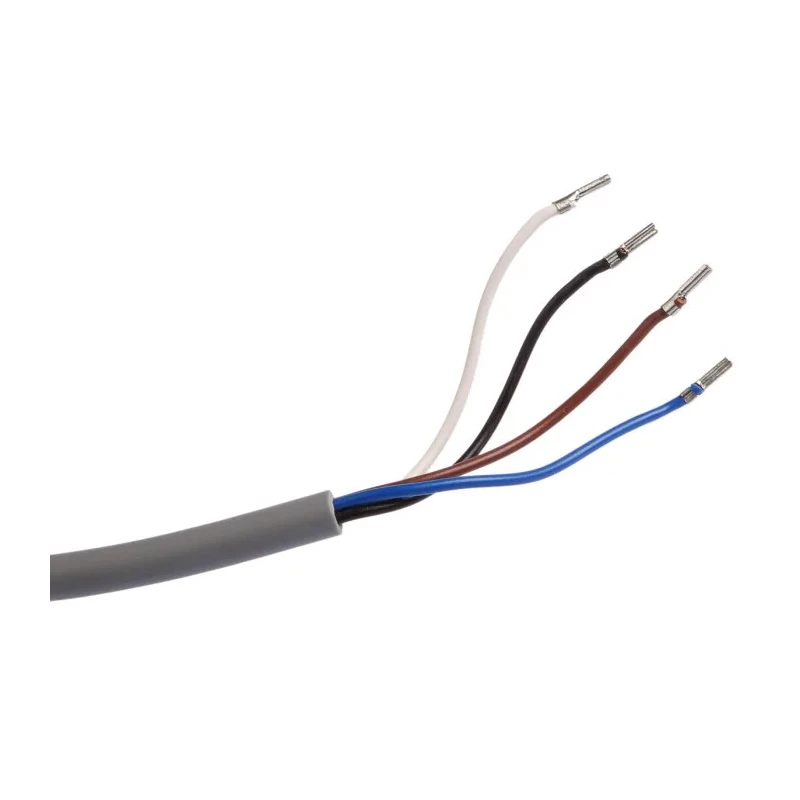

Operating temperature ranges from -25°C to 70°C, supporting usage in varied ambient conditions. The included 2m PVC pre-cabled terminal provides simple electrical connections for integration with control systems.

The threaded barrel design facilitates secure mounting with non-flush type configuration for optimal sensing performance. Ideal for sensing tasks such as level detection, material presence, thickness measurement, and more.

Widely used in industrial automation, manufacturing processes, quality assurance, and laboratory instrumentation. This sensor is manufactured in China and shipped in new condition. It belongs to the RS PRO series, known for reliable sensor solutions in industrial automation.
